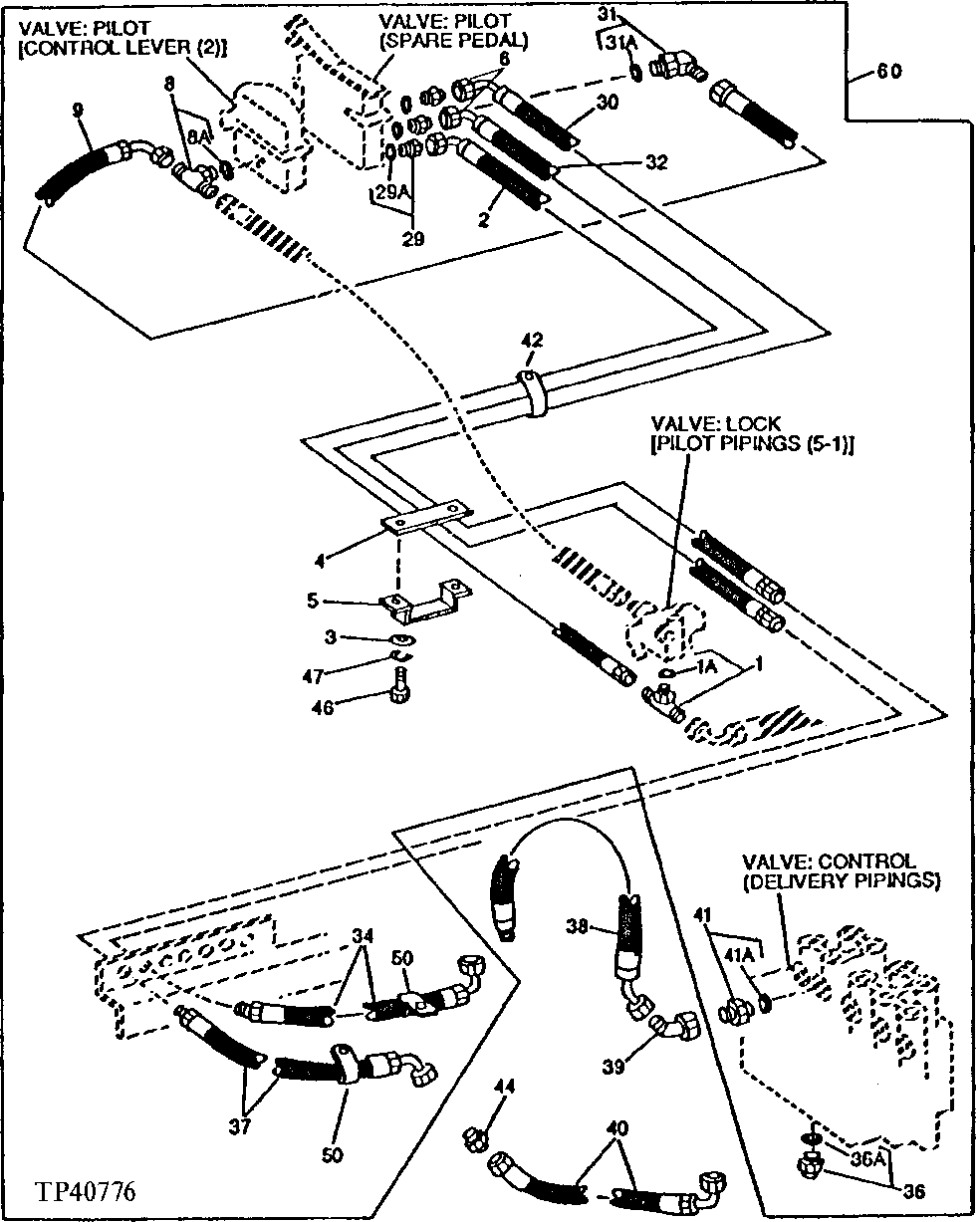

Запчасти John Deere 92DLC 130 - AUXILIARY FUNCTION PIPING 3360 - EXCAVATOR 33

1

4208911

TEE FITTING

(SUB FOR TH110202) (SUB FOR AT126456)

1шт.

1A

CH11570

O-RING

1шт.

2

AT72803

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110198)

1шт.

3

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

4

9727637

PLATE

(SUB FOR TH108457)

1шт.

5

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

6

AE24616

ELBOW FITTING

2шт.

8

4208473

TEE FITTING

(SUB FOR TH110203)

1шт.

8A

M800650

PACKING

1шт.

9

AT69452

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110199)

1шт.

29

4200467

ADAPTER FITTING

(SUB FOR TH108417)

3шт.

29A

M800650

PACKING

1шт.

30

AT67064

HYDRAULIC HOSE - FABRICATE

9/16" X 29-1/2" X 9/16", (SUB FOR TH110196 OR 4210338, ALONG WITH AE24616)

1шт.

31

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

31A

M800650

PACKING

1шт.

32

AT67064

HYDRAULIC HOSE - FABRICATE

9/16" X 29-1/2" X 9/16", (SUB FOR TH110197 OR 4210352, ALONG WITH AE24616)

1шт.

34

AT72803

HYDRAULIC HOSE - FABRICATE

9/16" X 59" X 9/16", (SUB FOR 4209792, ALONG WITH R27238 AND 14H832)

1шт.

R27238

FITTING

(NOT ILLUSTRATED)

1шт.

14H832

NUT

9/16", (NOT ILLUSTRATED)

1шт.

36

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

36A

CH11570

O-RING

1шт.

37

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 40" X 9/16", (SUB FOR 4209793, ALONG WITH R27238 AND 14H832)

1шт.

R27238

FITTING

(NOT ILLUSTRATED)

1шт.

14H832

NUT

9/16", (NOT ILLUSTRATED)

1шт.

38

AT48422

HYDRAULIC HOSE - FABRICATE

1шт.

39

AU43156

ELBOW FITTING

1шт.

40

AT50269

HYDRAULIC HOSE - FABRICATE

9/16" X 40" X 9/16"

1шт.

41

4202422

ADAPTER FITTING

(SUB FOR TH108440)

1шт.

41A

CH11570

O-RING

1шт.

42

M45242

CLIP

(SUB FOR TH108321) (SUB FOR 4190292)

1шт.

44

R27095

FITTING

1шт.

46

19M7550

CAP SCREW

M10 X 35

2шт.

47

12M7066

LOCK WASHER

10 MM

2шт.

50

XCL-29

HOSE CLAMP

(SUB FOR TH110522 OR 4193848)

2шт.

60

TH108154

KIT

WHOLEGOODS (CONTAINS ALL ITEMS ON THIS PAGE - FOR ADDITIONAL COMPONENTS SEE PREVIOUS PAGE) (ALSO ORDER AT50269, R27095, AT48422 AND AU43156, THIS APPLICATION)

1шт.
