Запчасти John Deere 92DLC 126 - COUNTERWEIGHT REMOVAL AND HEAVY-LIFT COMBINED HYDRAULICS 3360 - EXCAVATOR 33

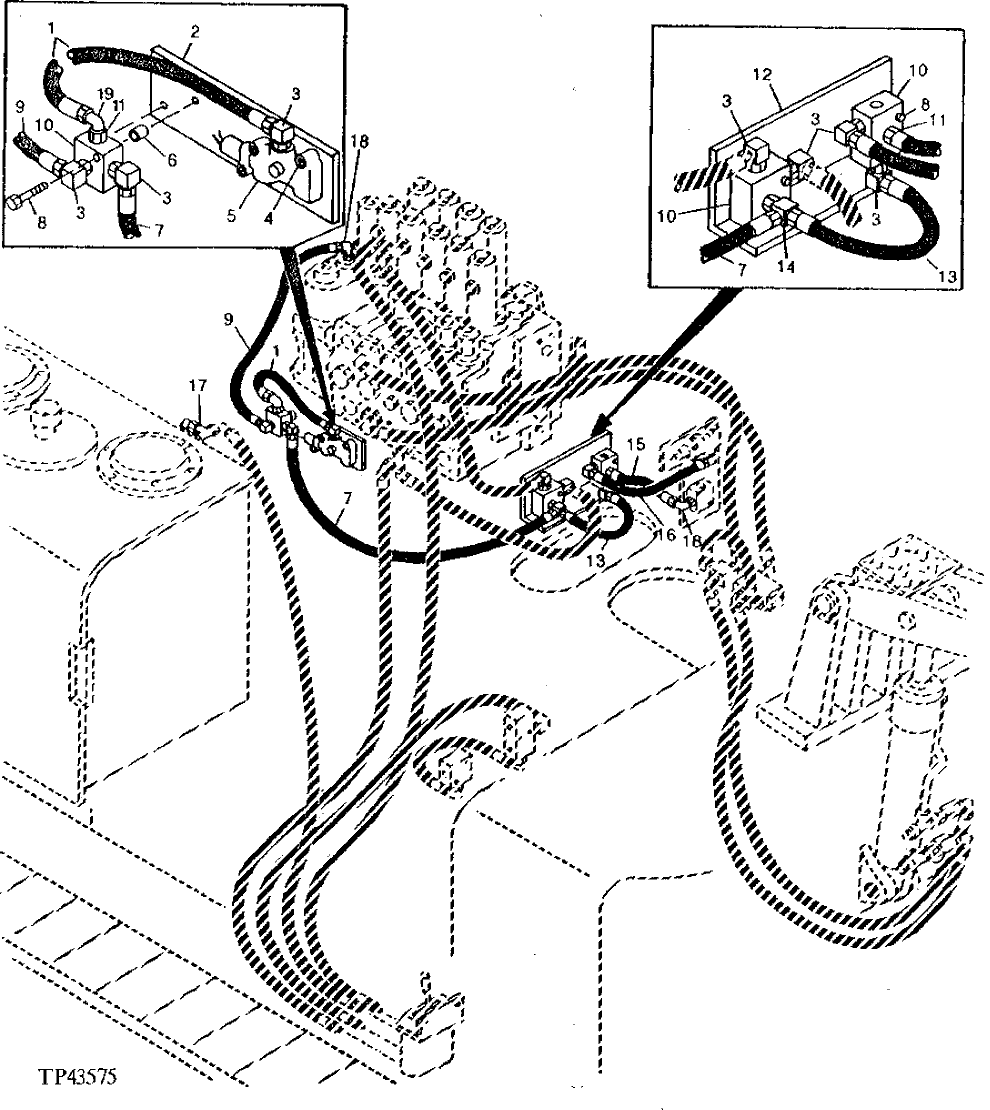

Схема запчастей John Deere 92DLC - 126 - COUNTERWEIGHT REMOVAL AND HEAVY-LIFT COMBINED HYDRAULICS 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

AR101376

HYDRAULIC HOSE

(SUB FOR AT132501, ALONG WITH AH89069)

1шт.

2

4240767

PLATE

(SUB FOR AT132545)

1шт.

3

4154670

ELBOW FITTING

(INCLUDES M800650) (SUB FOR TH100951)

7шт.

M800650

PACKING

1шт.

4

19M8403

CAP SCREW

M8 X 75

3шт.

12M7066

LOCK WASHER

10 MM

3шт.

5

4210647

SOLENOID VALVE

(SUB FOR TH110603)

1шт.

6

4131346

SPACER

(SUB FOR AT132491)

2шт.

7

AT132498

HYDRAULIC HOSE - FABRICATE

1шт.

8

19M7742

CAP SCREW

M10 X 65

6шт.

12M7066

LOCK WASHER

10 MM

6шт.

9

AT132513

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT132518 OR 4214452, ALONG WITH AH89069)

1шт.

10

4195759

FLOW CONTROL HYD. VALVE

(SUB FOR AT132401)

3шт.

11

4200465

ADAPTER FITTING

(SUB FOR TH108328)

2шт.

12

3045950

PLATE

(SUB FOR AT132475)

1шт.

19M7402

CAP SCREW

M10 X 25

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

13

AH97777

HYDRAULIC HOSE

(SUB FOR AT132535)

1шт.

14

4203171

TEE FITTING

(SUB FOR TH110578)

1шт.

15

AH97777

HYDRAULIC HOSE

(SUB FOR 4275082 ALONG WITH AH89069)

1шт.

16

4203161

HYDRAULIC HOSE

(SUB FOR TH108352) (SUB FOR TH111777)

1шт.

17

4219346

TEE FITTING

(INCLUDES M800650) (SUB FOR AT132516)

1шт.

M800650

PACKING

1шт.

18

AH89069

ELBOW FITTING

2шт.

19

AH89069

ELBOW FITTING

1шт.

30

AT131527

COUNTERWEIGHT

WHOLEGOODS (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

1шт.

Выбрано товаров: 26
