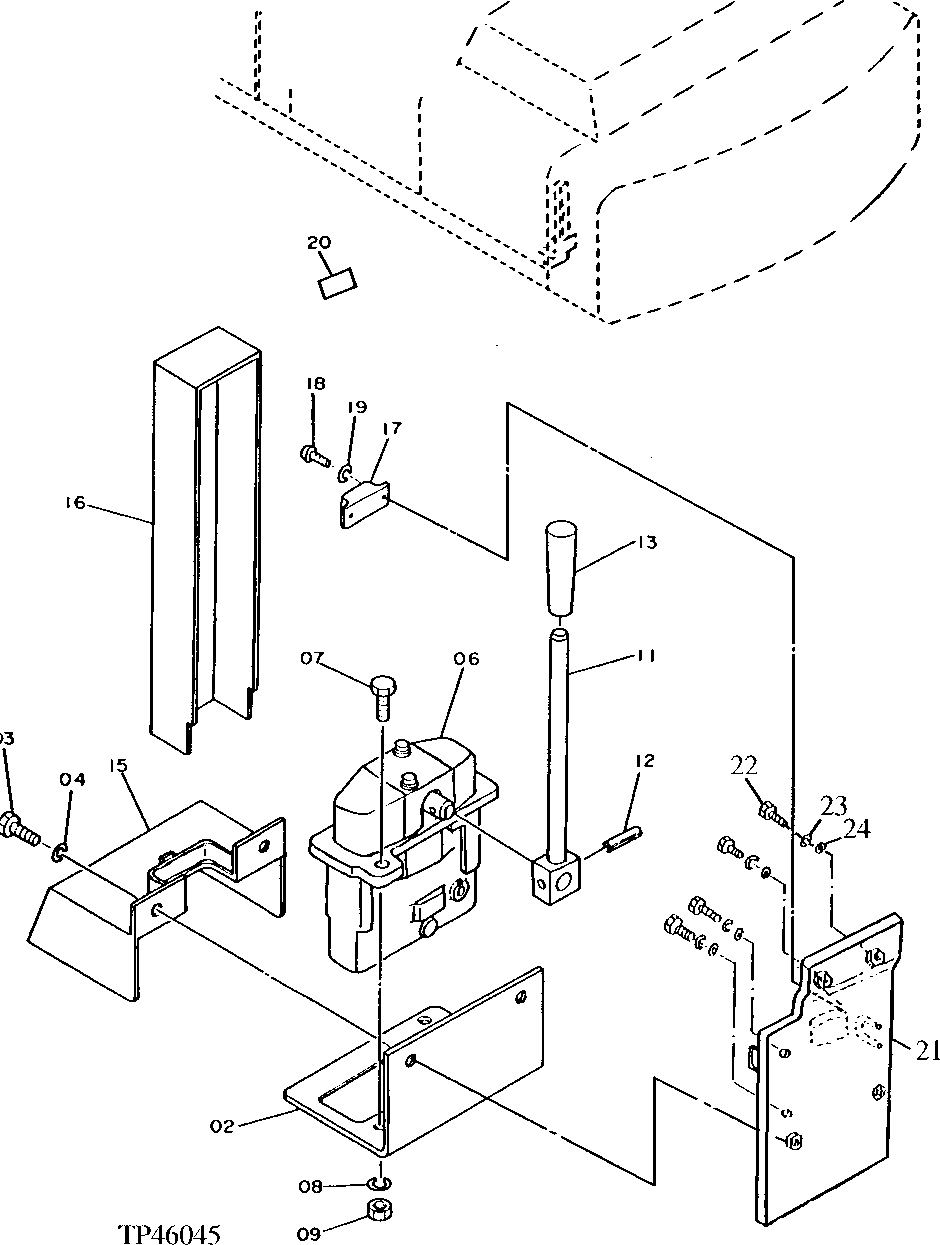

Запчасти John Deere 92DLC 124 - HYDRAULIC COUNTERWEIGHT REMOVAL CONTROL SYSTEM 3360 - EXCAVATOR 33

2

3046025

BRACKET

(SUB FOR AT132476)

1шт.

3

19M7402

CAP SCREW

M10 X 25

2шт.

4

12M7066

LOCK WASHER

10 MM

2шт.

6

9074843

HYD ACTUATED CONTROL VALVE

(SUB FOR AT128308) (SUB FOR TH110188)

1шт.

7

19M7402

CAP SCREW

M10 X 25

2шт.

8

12M7066

LOCK WASHER

10 MM

2шт.

9

14M7274

NUT

M10

2шт.

11

9732429

LEVER

(SUB FOR AT132598)

1шт.

12

34M7134

SPRING PIN

5 X 26 MM

1шт.

13

4122424

GRIP

(SUB FOR AT132489)

1шт.

15

8044683

COVER

(SUB FOR AT132582)

1шт.

16

4240984

COVER

(SUB FOR AT132549)

1шт.

17

4240985

MAGNET

(SUB FOR AT132550)

1шт.

18

21M7394

SCREW

M3 X 10

2шт.

19

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

2шт.

20

4241586

LABEL

(SUB FOR AT132146) (UP-DOWN FOR COUNTERWEIGHT REMOVAL)

1шт.

21

8046659

PLATE

(SUB FOR AT170011)

1шт.

22

19M7872

CAP SCREW

M12 X 25

4шт.

23

12H301

LOCK WASHER

12.700 MM (1/2")

4шт.

24

24M7047

WASHER

13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098")

4шт.

25

AT131527

COUNTERWEIGHT

WHOLEGOODS (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

1шт.
