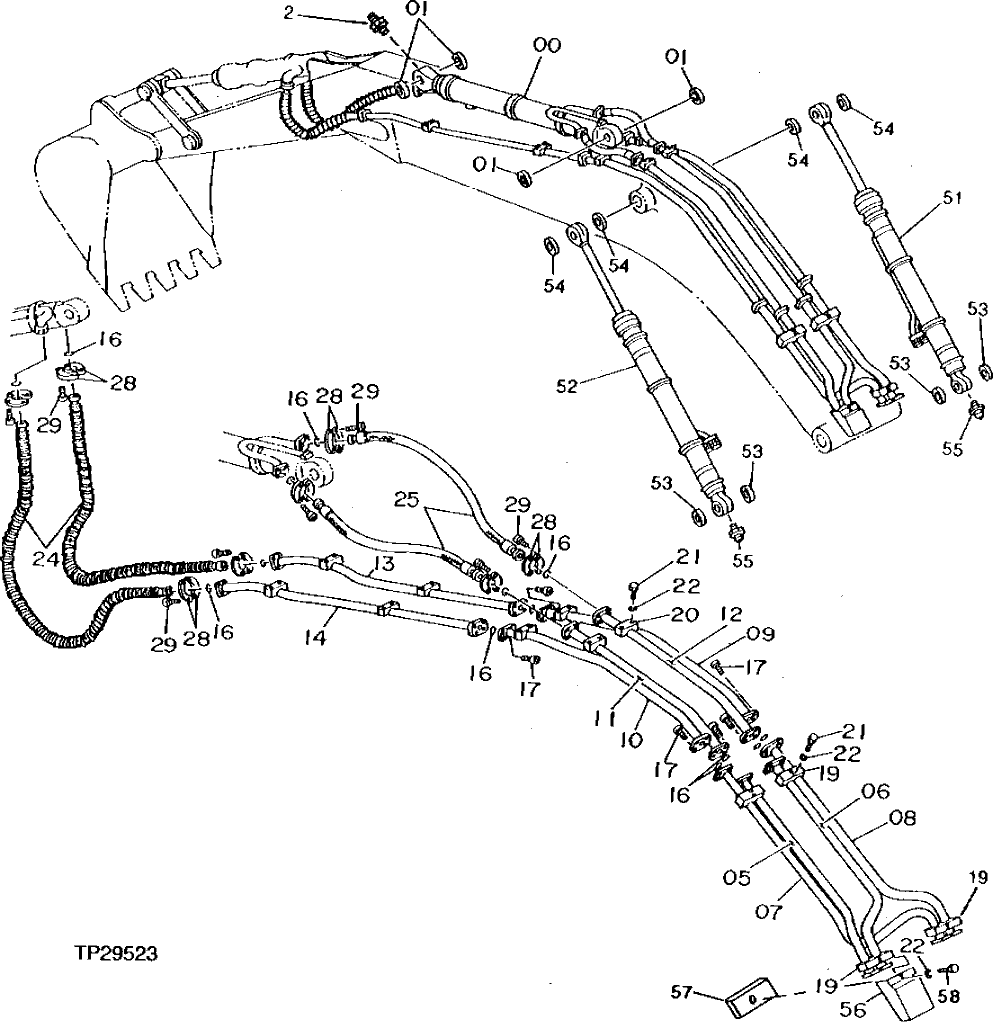

Запчасти John Deere 92DLC 116 - ARM, BOOM AND BUCKET HOSES AND LINES 3360 - EXCAVATOR 33

0

CYLINDER

(ARM) (SEE SEPARATE PAGE FOR DETAIL)

4шт.

1

TH103200

SEAL

4шт.

2

TH100074

LUBRICATION FITTING

1шт.

5

8039135

OIL LINE

(SUB FOR AT132073)

1шт.

6

8039134

OIL LINE

(SUB FOR AT132072)

1шт.

7

8039133

OIL LINE

(SUB FOR AT132071)

1шт.

8

8039132

OIL LINE

(SUB FOR AT132070)

1шт.

9

8040445

OIL LINE

(SUB FOR AT132086)

1шт.

10

8040444

OIL LINE

(SUB FOR AT132085)

1шт.

11

8040443

OIL LINE

(SUB FOR AT132084)

1шт.

12

8040442

OIL LINE

(SUB FOR AT132083)

1шт.

13

8039127

OIL LINE

(SUB FOR AT132069)

1шт.

14

8039126

OIL LINE

(SUB FOR AT132068)

1шт.

16

T72216

O-RING

14шт.

17

19M8712

SCREW

M14 X 50, (SUB FOR TH100039)

24шт.

19

4205816

CLAMP

(SUB FOR AT131793)

4шт.

20

AT201796

CLAMP

(SUB FOR AT131694)

8шт.

21

19M8088

CAP SCREW

M12 X 75, (SUB FOR AT131540)

20шт.

22

12H301

LOCK WASHER

1/2"

24шт.

24

AT130867

HYDRAULIC HOSE - FABRICATE

1-1/4" X 2 400 MM (94-1/2") X 1-1/4", (SUB FOR AT132482 OR AT132520) (USE WITH STANDARD ARM)

2шт.

4242429

HYDRAULIC HOSE

(SUB FOR AT128458) (USE WITH SHORT ARM)

2шт.

25

AT131785

HYDRAULIC HOSE - FABRICATE

1-1/4" X 1 000 MM (39-1/4") X 1-1/4"

2шт.

28

R29867

FLANGE FITTING

16шт.

29

19M8448

SCREW

M12 X 35

32шт.

51

CYLINDER

(RIGHT BOOM) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

52

CYLINDER

(LEFT BOOM) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

53

TH103200

SEAL

4шт.

54

AT131684

SEAL

4шт.

55

TH100074

LUBRICATION FITTING

2шт.

56

3046345

COVER

(SUB FOR AT128431)

1шт.

57

4261610

STRAP

(SUB FOR AT130959)

2шт.

58

19M7349

CAP SCREW

M12 X 95

4шт.
