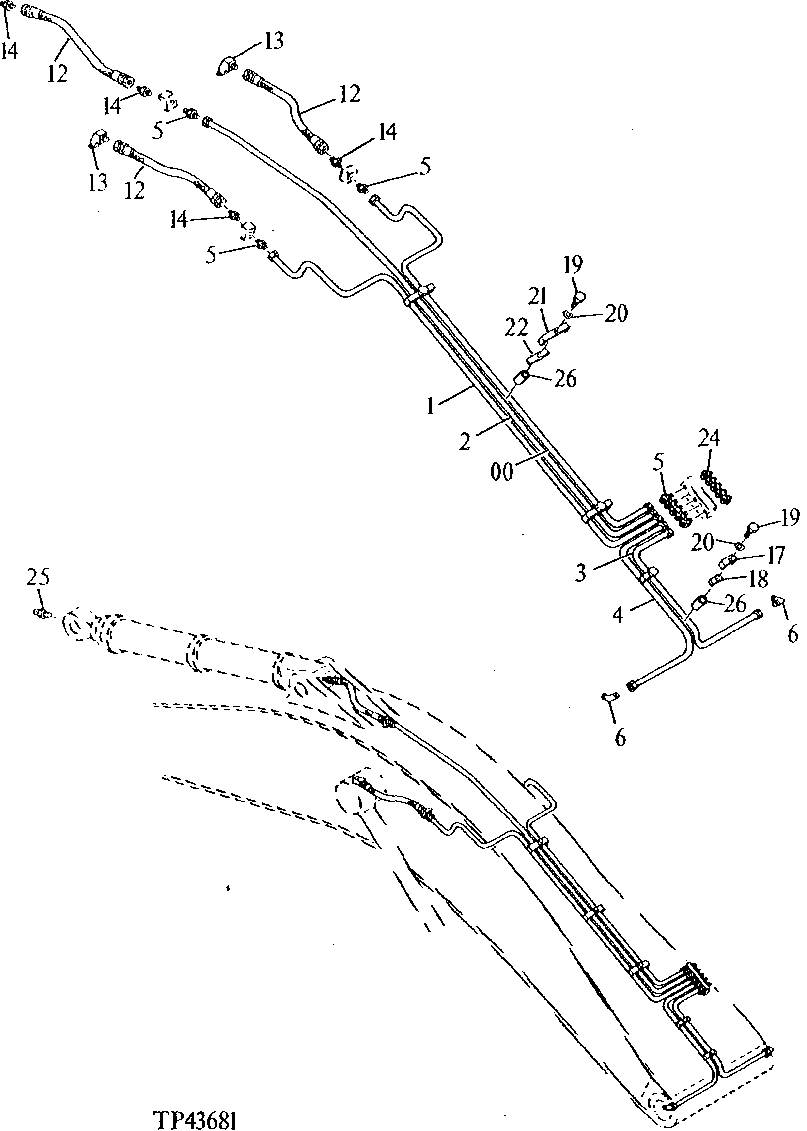

Запчасти John Deere 92DLC 114 - BOOM CENTRAL LUBE LINES 3360 - EXCAVATOR 33

0

3038980

LINE

(SUB FOR AT131634)

1шт.

1

3038981

LINE

(SUB FOR AT131635)

1шт.

2

3038982

LINE

(SUB FOR AT131636)

1шт.

3

3038983

LINE

(SUB FOR AT131637)

1шт.

4

3038984

LINE

(SUB FOR AT131638)

1шт.

5

4130169

FITTING

(SUB FOR TH101391)

8шт.

6

4130175

FITTING

(SUB FOR TH101392)

2шт.

12

TH102493

HYDRAULIC HOSE - FABRICATE

3шт.

13

94-1501

ELBOW FITTING

(SUB FOR AT121757)

2шт.

14

X4F3P4S

ADAPTER FITTING

(SUB FOR TH100362 OR 94-1301)

4шт.

17

4269656

CLAMP

(SUB FOR AT131669, THIS APPLICATION) (SUB FOR AT130969)

2шт.

18

AT318012

ISOLATOR

(SUB FOR 4269657) (SUB FOR AT131670, THIS APPLICATION) (SUB FOR AT130970)

2шт.

19

19M7662

CAP SCREW

M10 X 30, (SUB FOR AT131539 OR TH101717, ALONG WITH 12M7066 THIS APPLICATION)

5шт.

12M7066

LOCK WASHER

10 MM

5шт.

20

LOCK WASHER

( 12H301 NO LONGER REQUIRED)

5шт.

21

4273720

CLAMP

(SUB FOR AT131667)

3шт.

22

AT318020

STRAP

(SUB FOR 4273721, AT131668)

3шт.

24

JD7769

LUBRICATION FITTING

(SUB FOR TH100364)

5шт.

25

TH100074

LUBRICATION FITTING

1шт.

26

4269658

SPACER

(SUB FOR AT130971)

5шт.
