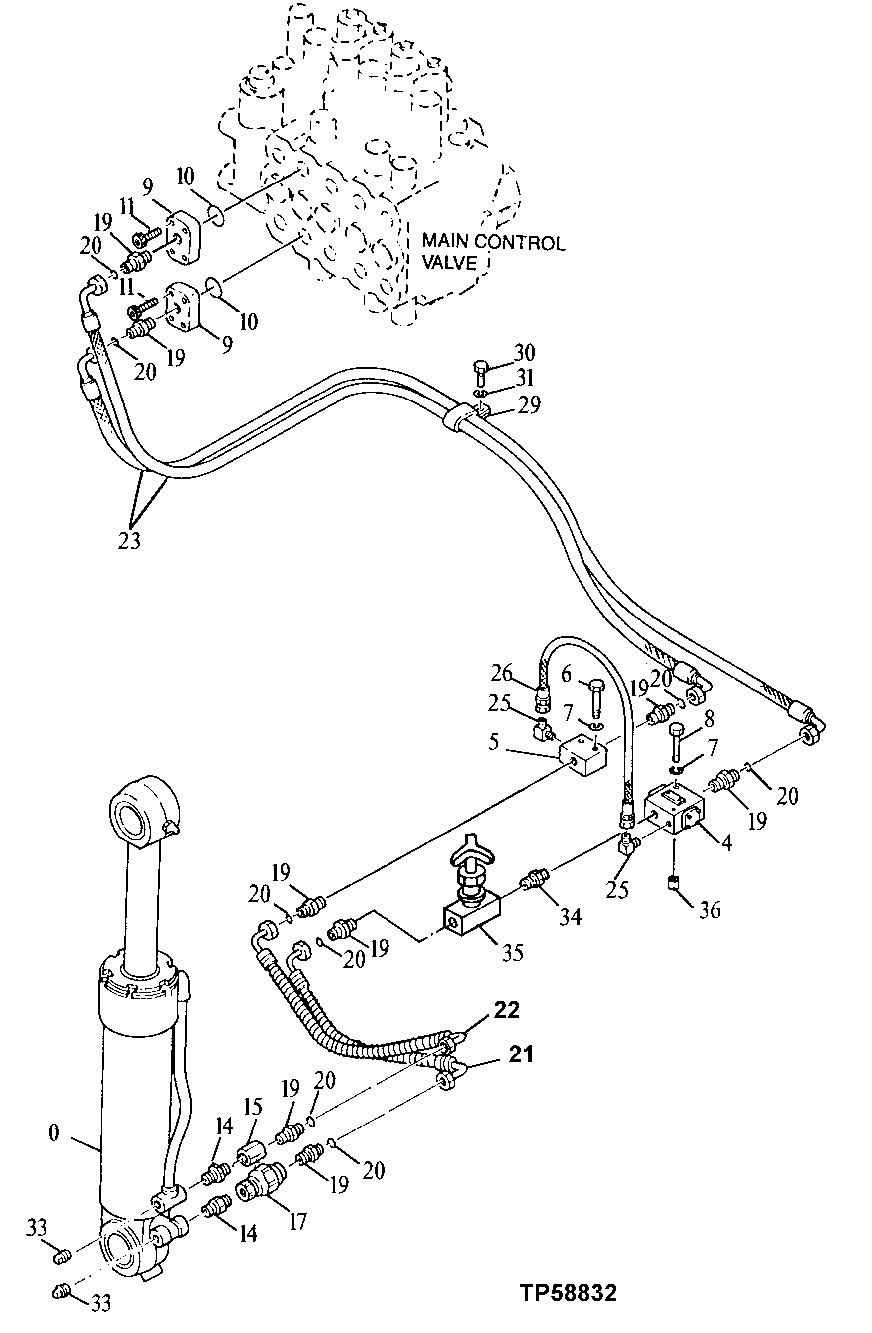

Запчасти John Deere 92DLC 110 - HYDRAULIC COUNTERWEIGHT REMOVAL HIGH-PRESSURE HOSES 3360 - EXCAVATOR 33

0

2012857

CYLINDER

(SUB FOR AT132467)

1шт.

4

4240863

FLOW CONTROL HYD. VALVE

(SUB FOR AT132548)

1шт.

5

4240862

MANIFOLD

(SUB FOR AT132547)

1шт.

6

19M7872

CAP SCREW

M12 X 25

2шт.

7

12M7066

LOCK WASHER

10 MM

4шт.

8

19M7875

CAP SCREW

M10 X 70

2шт.

9

4240861

FLANGE

(SUB FOR AT132546)

2шт.

10

T72216

O-RING

2шт.

11

19M8734

SCREW

M14 X 45, (SUB FOR TH102991)

8шт.

14

94-1703

ADAPTER FITTING

(SUB FOR TH101976)

2шт.

15

94-0677

UNION FITTING

(SUB FOR AT132596)

1шт.

17

4221984

VALVE

(SUB FOR AT132492)

1шт.

19

4210942

ADAPTER FITTING

(SUB FOR AT131868)

8шт.

20

T77857

O-RING

(SUB FOR TH108323)

8шт.

21

AT132537

HYDRAULIC HOSE - FABRICATE

1шт.

22

AT132538

HYDRAULIC HOSE - FABRICATE

1шт.

23

AT132536

HYDRAULIC HOSE - FABRICATE

2шт.

25

4154656

ELBOW FITTING

(SUB FOR TH101588)

2шт.

26

AT126482

HYDRAULIC HOSE - FABRICATE

1шт.

29

R50454

CLAMP

(SUB FOR TH109445 OR 4192034)

1шт.

30

19M8324

CAP SCREW

M10 X 16

1шт.

31

12M7066

LOCK WASHER

10 MM

1шт.

33

94-2024

FITTING PLUG

(SUB FOR TH101292)

2шт.

34

94-1703

ADAPTER FITTING

(SUB FOR TH101976)

1шт.

35

4220806

FLOW CONTROL HYD. VALVE

(SUB FOR AT128495)

1шт.

36

4131346

SPACER

(SUB FOR AT132491)

2шт.

40

AT131527

COUNTERWEIGHT

WHOLEGOODS (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

1шт.
