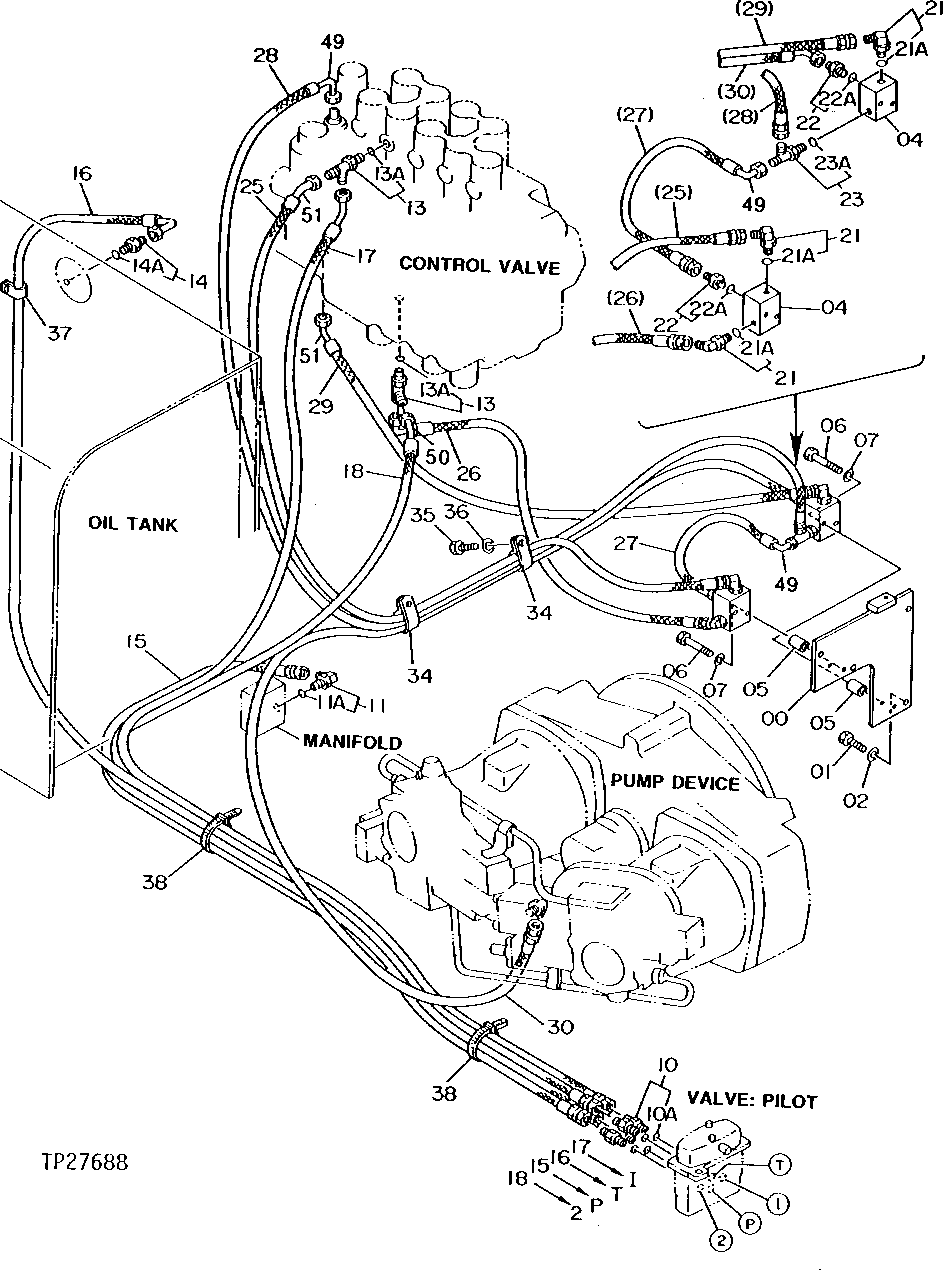

Запчасти John Deere 92DLC 108 - HYDRAULIC COUNTERWEIGHT REMOVAL PILOT HOSE 3360 - EXCAVATOR 33

0

8044658

PLATE

(SUB FOR AT132581)

1шт.

1

19M7938

CAP SCREW

M10 X 20

4шт.

2

12M7066

LOCK WASHER

10 MM

4шт.

4

4195759

FLOW CONTROL HYD. VALVE

(SUB FOR AT132401)

2шт.

5

4131346

SPACER

(SUB FOR AT132491)

4шт.

6

19M7742

CAP SCREW

M10 X 65

4шт.

7

12M7066

LOCK WASHER

10 MM

4шт.

10

4200467

ADAPTER FITTING

(SUB FOR TH108417)

4шт.

10A

M800650

PACKING

1шт.

11

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

11A

M800650

PACKING

1шт.

13

4239713

TEE FITTING

(SUB FOR AT127700)

2шт.

13A

CH11570

O-RING

1шт.

14

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

14A

CH11570

O-RING

1шт.

15

AE42000

HYDRAULIC HOSE

(SUB FOR AT132539)

1шт.

16

AT48424

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT132540)

1шт.

17

AA36172

HYDRAULIC HOSE

(SUB FOR AT132541)

1шт.

18

AT61195

HYDRAULIC HOSE - FABRICATE

(SUB 4239762 ALONG WITH AU43156)

1шт.

21

4154670

ELBOW FITTING

(SUB FOR TH100951)

3шт.

21A

M800650

PACKING

1шт.

22

4200465

ADAPTER FITTING

(SUB FOR TH108328)

2шт.

22A

M800650

PACKING

1шт.

23

4203171

TEE FITTING

(SUB FOR TH110578)

1шт.

23A

M800650

PACKING

1шт.

25

AT30743

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT132543 ALONG WITH X4V6X-S)

1шт.

26

AT132513

HYDRAULIC HOSE - FABRICATE

1шт.

27

AE42718

HYDRAULIC HOSE

(SUB FOR 4218062 ALONG WITH AH89069)

1шт.

28

AT132003

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4207376 ALONG WITH AH89069)

1шт.

29

AE42282

HYDRAULIC HOSE

(SUB FOR AT132517 ALONG WITH X4V6X-S)

1шт.

30

AT132499

HYDRAULIC HOSE - FABRICATE

1шт.

34

XCL-19

HOSE CLAMP

(SUB FOR TH108459 OR 4192035)

2шт.

35

19M8324

CAP SCREW

M10 X 16

2шт.

36

12M7066

LOCK WASHER

10 MM

2шт.

37

R73291

CLAMP

(SUB FOR TH108596) (SUB FOR 4190262)

1шт.

38

H77698

TIE BAND

5шт.

49

AH89069

ELBOW FITTING

2шт.

50

AU43156

ELBOW FITTING

1шт.

51

X4V6X-S

ELBOW FITTING

(SUB FOR AT128355 OR X3703-4-4)

2шт.

60

AT131527

COUNTERWEIGHT

WHOLEGOODS (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

1шт.
