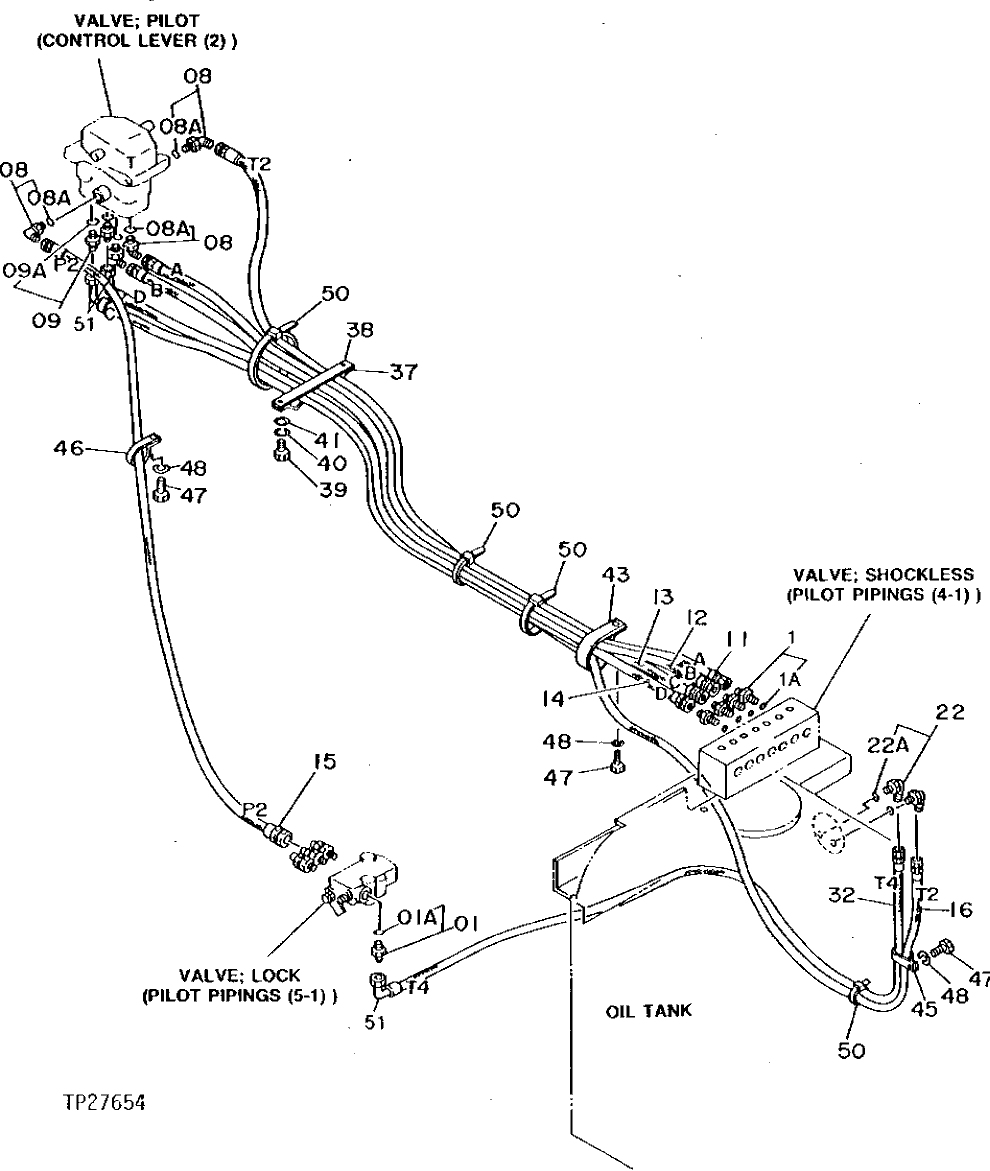

Запчасти John Deere 92DLC 104 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

1

4200466

ADAPTER FITTING

(SUB FOR TH108320)

5шт.

1A

CH11570

O-RING

1шт.

8

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

4шт.

8A

M800650

PACKING

1шт.

9

4200467

ADAPTER FITTING

(SUB FOR TH108417)

2шт.

9A

M800650

PACKING

1шт.

11

AR103791

HOSE

(A) (SUB FOR TH111312)

1шт.

12

4447637

HYDRAULIC HOSE - FABRICATE

(B) (SUB FOR TH111313 OR AT71731)

1шт.

13

AR103791

HOSE

(C) (SUB FOR 4207981, ALONG WITH AE24616)

1шт.

14

AR103791

HOSE

(D) (SUB FOR 4207982, ALONG WITH AE24616)

1шт.

15

AT48434

HYDRAULIC HOSE - FABRICATE

(P2) (SUB FOR TH111323)

1шт.

16

AT61195

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131870)

1шт.

22

A852333

ELBOW FITTING

(SUB FOR TH101047) (SUB FOR 4154671)

2шт.

22A

CH11570

O-RING

1шт.

32

AT130683

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131838) (ALSO ORDER AE24616)

1шт.

37

9727639

HOSE CLAMP

(SUB FOR TH108456)

1шт.

38

9727637

PLATE

(SUB FOR TH108457)

1шт.

39

19M7550

CAP SCREW

M10 X 35

2шт.

40

12M7066

LOCK WASHER

10 MM

2шт.

41

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

43

R134002

CLAMP

(SUB FOR TH111255) (SUB FOR 4193816)

1шт.

45

M45242

CLIP

(SUB FOR TH108321) (SUB FOR 4190292)

1шт.

46

4190275

CLAMP

(SUB FOR TH108598)

1шт.

47

19M8324

CAP SCREW

M10 X 16

3шт.

48

12M7066

LOCK WASHER

10 MM

3шт.

50

H77698

TIE BAND

4шт.

51

AE24616

ELBOW FITTING

3шт.
