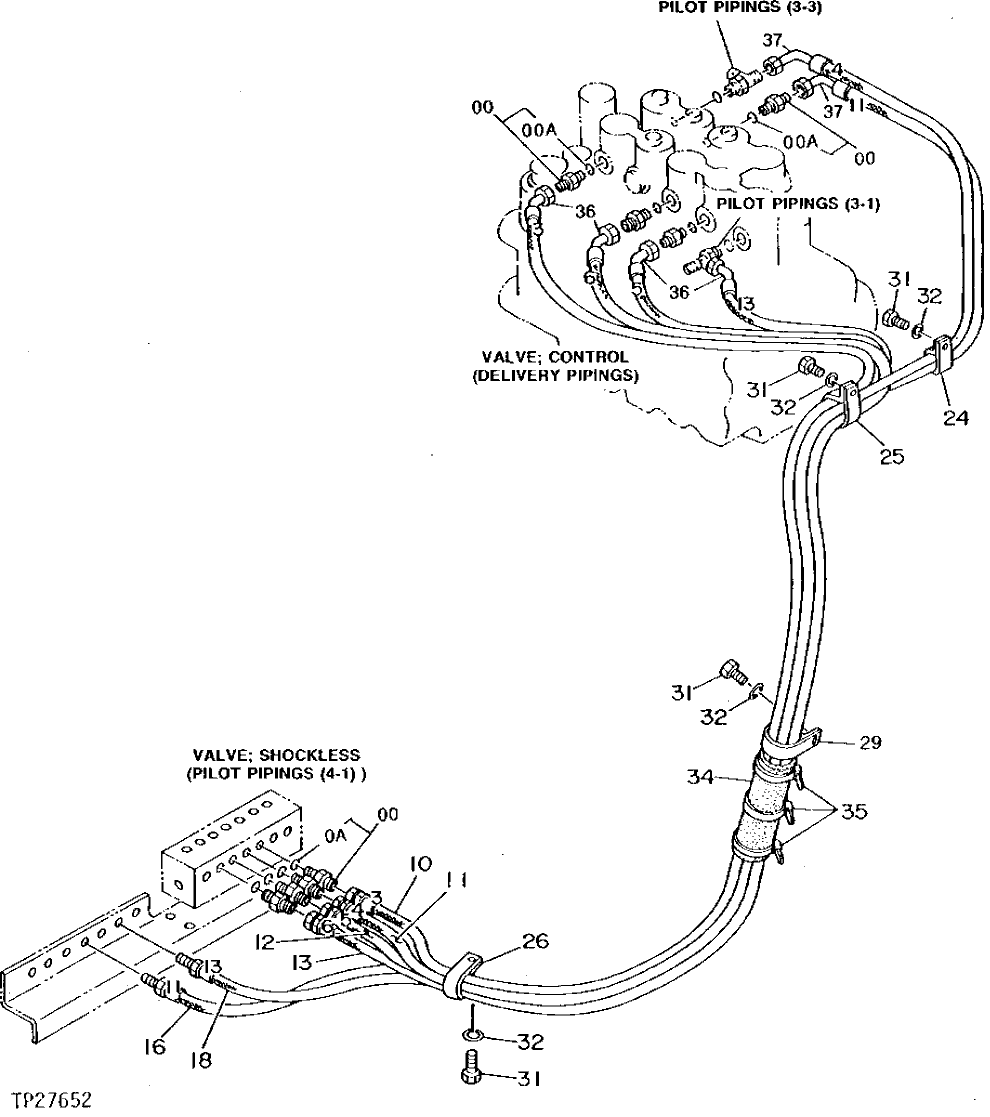

Запчасти John Deere 92DLC 100 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4200466

ADAPTER FITTING

(SUB FOR TH108320)

8шт.

0A

CH11570

O-RING

1шт.

10

AH89075

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4217359 ALONG WITH AU43156)

1шт.

11

AA36172

HYDRAULIC HOSE

(SUB FOR 4217361 ALONG WITH AE24616)

1шт.

12

AT130684

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4217362 ALONG WITH AU43156)

1шт.

13

AH89075

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4217363 ALONG WITH AU43156)

1шт.

16

AA36172

HYDRAULIC HOSE

(SUB FOR 4217368 ALONG WITH AE24616, R27238 AND 14H832)

1шт.

R27238

FITTING

1шт.

14H832

NUT

9/16"

1шт.

18

AT130684

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4217370 ALONG WITH AU43156, R27238 AND 14H832)

1шт.

R27238

FITTING

1шт.

14H832

NUT

9/16"

1шт.

24

M45242

CLIP

(SUB FOR TH108321) (SUB FOR 4190292)

1шт.

25

XCL-29

HOSE CLAMP

(SUB FOR TH110522 OR 4193848)

1шт.

26

XCL-29

HOSE CLAMP

(SUB FOR AT131725, TH110522 OR 4193848)

1шт.

29

R134002

CLAMP

(SUB FOR TH111255) (SUB FOR 4193816)

1шт.

31

19M8324

CAP SCREW

M10 X 16

4шт.

32

12M7066

LOCK WASHER

10 MM

4шт.

34

4155962

ISOLATOR

(SUB FOR AT131714)

1шт.

35

H77698

TIE BAND

3шт.

36

AU43156

ELBOW FITTING

4шт.

37

AE24616

ELBOW FITTING

2шт.
