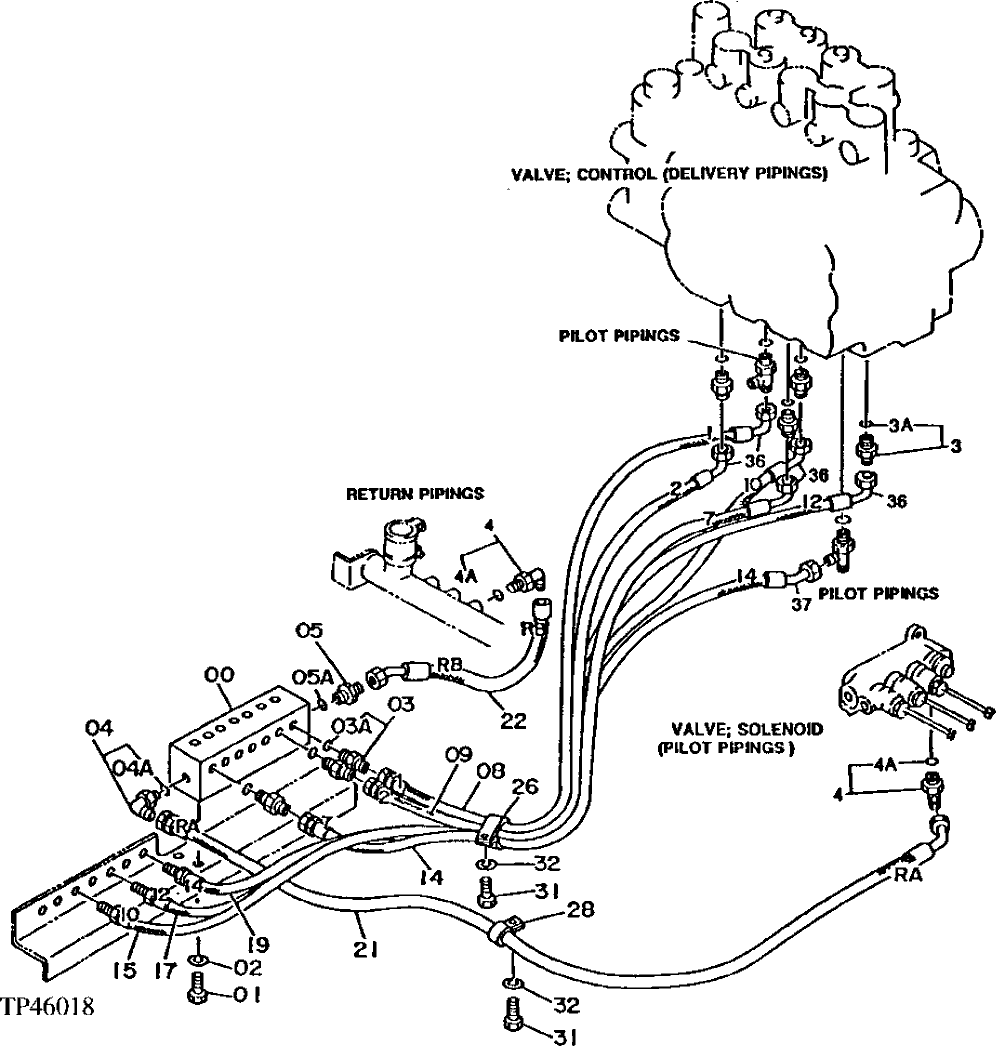

Запчасти John Deere 92DLC 98 - PILOT HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

0

4224218

HYD ACTUATED CONTROL VALVE

(SUB FOR AT131919)

1шт.

1

19M7938

CAP SCREW

M10 X 20

4шт.

2

12M7066

LOCK WASHER

10 MM

4шт.

3

4200466

ADAPTER FITTING

(SUB FOR TH108320)

7шт.

3A

CH11570

O-RING

1шт.

4

4154672

ELBOW FITTING

(SUB FOR TH101008)

3шт.

4A

4506418

O-RING

(SUB FOR U46489)

1шт.

5

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH110204 OR TH101006 ALONG WITH U46489)

1шт.

5A

4506418

O-RING

(SUB FOR U46489)

1шт.

8

AE42000

HYDRAULIC HOSE

(SUB FOR 4217358 ALONG WITH AE24616)

1шт.

9

AH99310

HYDRAULIC HOSE

(SUB FOR 4217359 ALONG WITH AE24616)

1шт.

14

AH99310

HYDRAULIC HOSE

(SUB FOR 4217364 ALONG WITH AE24616)

1шт.

15

AT130683

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4217367) (ALSO ORDER R27238, 14H832 AND AE24616)

1шт.

R27238

FITTING

1шт.

14H832

NUT

9/16"

1шт.

17

AT130683

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4217369) (ALSO ORDER R27238, 14H832 AND AE24616)

1шт.

R27238

FITTING

1шт.

14H832

NUT

9/16"

1шт.

19

AE42000

HYDRAULIC HOSE

(SUB FOR 4217371 ALONG WITH AU43156, R27238 AND 14H832)

1шт.

R27238

FITTING

1шт.

14H832

NUT

9/16"

1шт.

21

AT131875

HYDRAULIC HOSE - FABRICATE

(RA)

1шт.

22

AT131877

HYDRAULIC HOSE - FABRICATE

(RB)

1шт.

26

XCL-29

HOSE CLAMP

(SUB FOR AT131725, TH110522 OR 4193848)

1шт.

28

T28949

CLAMP

(SUB FOR TH108458 OR 4190274)

1шт.

31

19M8324

CAP SCREW

M10 X 16

2шт.

32

12M7066

LOCK WASHER

10 MM

2шт.

36

AE24616

ELBOW FITTING

5шт.

37

AU43156

ELBOW FITTING

1шт.
