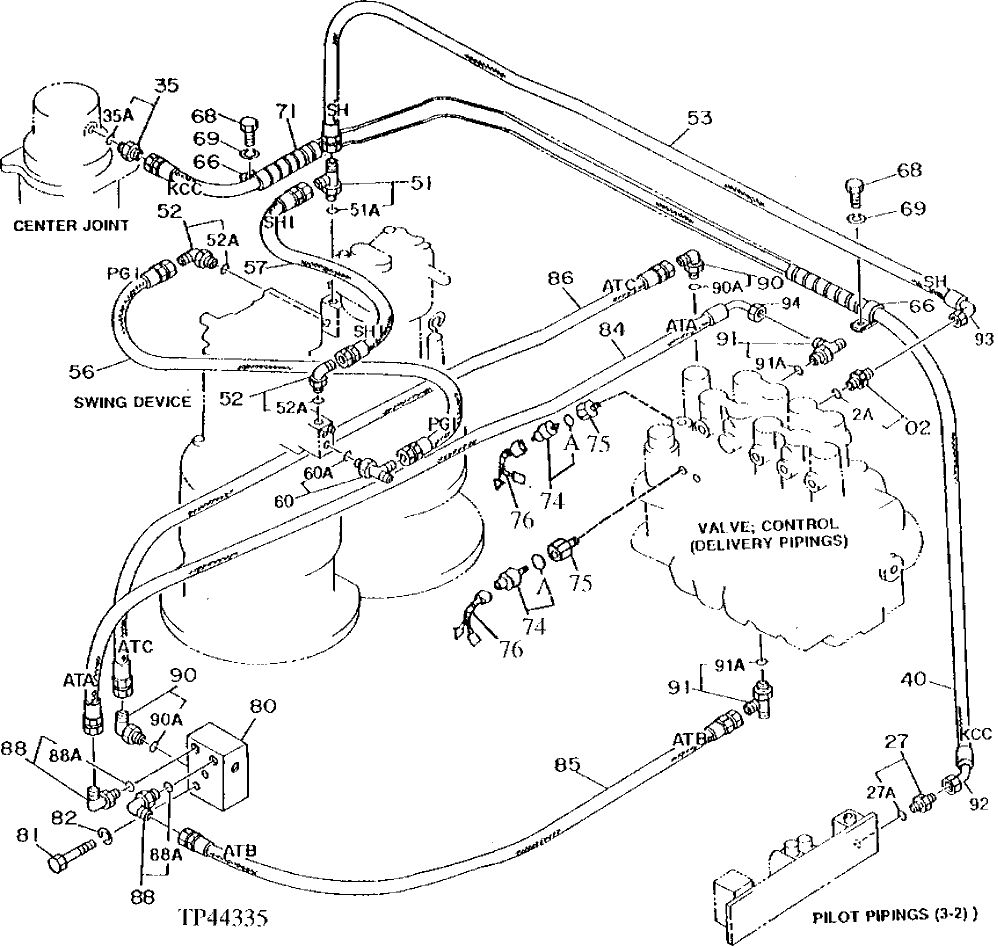

Запчасти John Deere 92DLC 96 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

2

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

2A

M800650

PACKING

1шт.

27

4200467

ADAPTER FITTING

(SUB FOR TH108417)

1шт.

27A

M800650

PACKING

1шт.

35

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

35A

4506418

O-RING

(SUB FOR U46489)

1шт.

40

AE42000

HYDRAULIC HOSE

(SUB FOR 4209780 OR AT130973, ALONG WITH AU43156)

1шт.

51

4203171

TEE FITTING

(SUB FOR TH110578)

1шт.

51A

M800650

PACKING

1шт.

52

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.

52A

M800650

PACKING

1шт.

53

AE42282

HYDRAULIC HOSE

(SUB FOR 4207341 ALONG WITH AH89069)

1шт.

56

AT126850

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131832)

1шт.

57

AE42718

HYDRAULIC HOSE

(SUB FOR AT131833)

1шт.

AT132513

HYDRAULIC HOSE - FABRICATE

1шт.

60

4203171

TEE FITTING

(SUB FOR TH110578)

1шт.

4203163

TEE FITTING

(SUB FOR AT126355)

1шт.

60A

M800650

PACKING

1шт.

66

4190275

CLAMP

(SUB FOR TH108598)

2шт.

68

19M8324

CAP SCREW

M10 X 16

2шт.

69

12M7066

LOCK WASHER

10 MM

2шт.

71

R57752

CONDUIT

(SUB FOR AT131940)

1шт.

TUBE

( AT132010 NO LONGER AVAILABLE) (CUT TO LENGTH FROM T83427 BULK MATERIAL)

1шт.

74

4327185

PRESSURE SWITCH

(SUB FOR AT167077) (PRESSURE)

2шт.

74A

4506408

O-RING

7.800 X 1.900 MM (0.307" X 0.075") (SUB FOR TH101490)

1шт.

75

4327175

ADAPTER FITTING

(SUB FOR AT167075)

2шт.

76

4328068

WIRING HARNESS

(SUB FOR AT167076) (EXTENDS FROM MAIN WIRING HARNESS)

2шт.

80

4236432

FLOW CONTROL HYD. VALVE

(SUB FOR AT131957)

1шт.

81

19M7875

CAP SCREW

M10 X 70

2шт.

82

12M7066

LOCK WASHER

10 MM

2шт.

84

AT48434

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131964 ALONG WITH AE24616)

1шт.

85

AT48428

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131963)

1шт.

86

AH96002

HYDRAULIC HOSE

(SUB FOR AT131961)

1шт.

88

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

2шт.

88A

M800650

PACKING

1шт.

90

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.

90A

M800650

PACKING

1шт.

91

4205363

TEE FITTING

(SUB FOR AT126362)

2шт.

91A

CH11570

O-RING

1шт.

92

AU43156

ELBOW FITTING

1шт.

93

AH89069

ELBOW FITTING

1шт.

94

AE24616

ELBOW FITTING

1шт.
