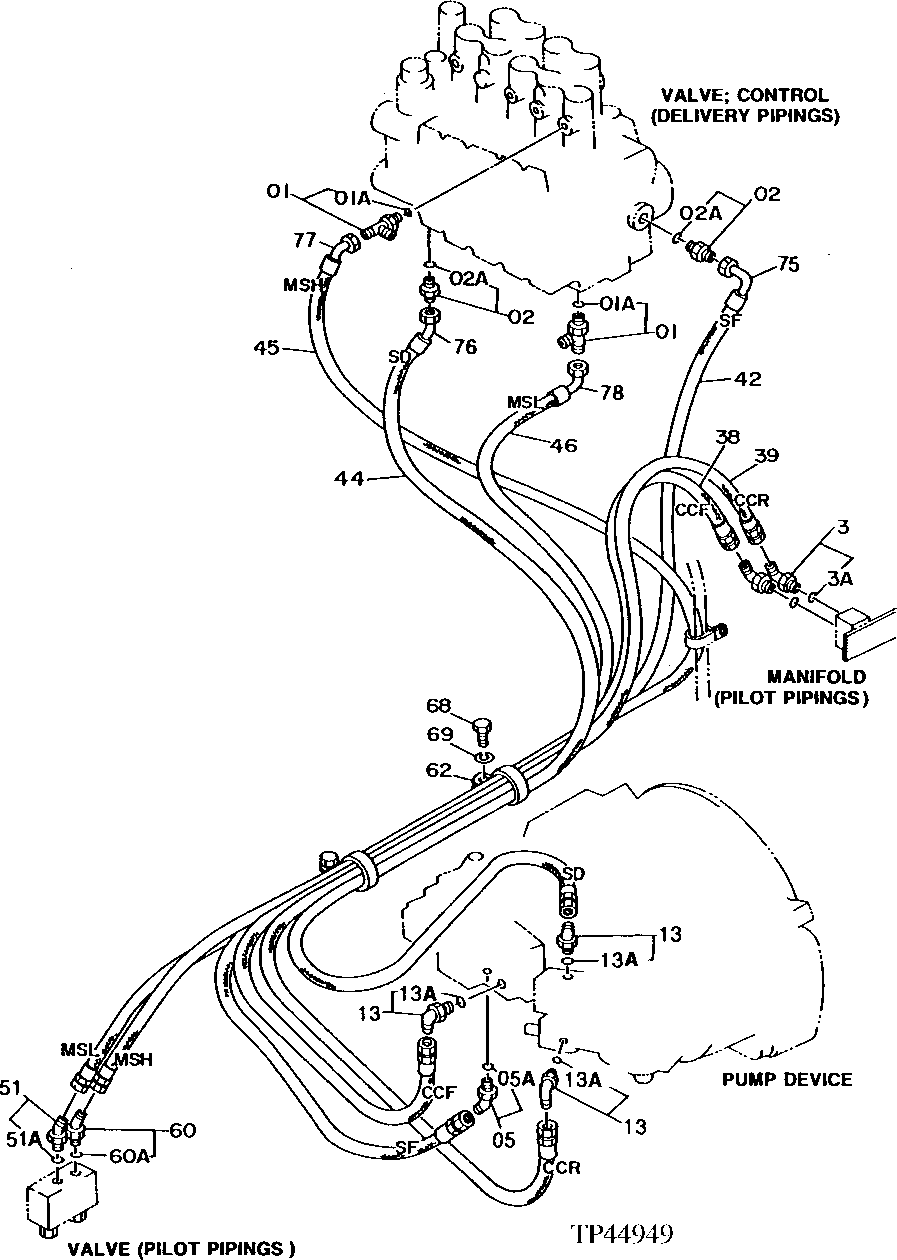

Запчасти John Deere 92DLC 86 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

1

4205363

TEE FITTING

(SUB FOR AT126362)

2шт.

1A

CH11570

O-RING

1шт.

2

4200465

ADAPTER FITTING

(SUB FOR TH108328)

2шт.

2A

M800650

PACKING

1шт.

3

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.

3A

M800650

PACKING

1шт.

5

4193826

ELBOW FITTING

(SUB FOR TH106467)

1шт.

5A

M800650

PACKING

1шт.

13

4154670

ELBOW FITTING

(SUB FOR TH100951)

3шт.

13A

M800650

PACKING

1шт.

38

AT132004

HYDRAULIC HOSE - FABRICATE

(CCF)

1шт.

39

AT132003

HYDRAULIC HOSE - FABRICATE

(CCR)

1шт.

42

AT132003

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4222079 ALONG WITH AH89069)

1шт.

44

4260314

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT132503) (SUB FOR AT131997 ALONG WITH X4V6X-S)

1шт.

45

AE42000

HYDRAULIC HOSE

(SUB FOR 4207327 ALONG WITH AU43156)

1шт.

46

AT48422

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4275096 ALONG WITH AE24616)

1шт.

51

4200472

ELBOW FITTING

(SUB FOR TH111301)

1шт.

51A

M800650

PACKING

1шт.

60

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

60A

M800650

PACKING

1шт.

62

N198631

CLAMP

(SUB FOR TH109598 OR 4190265)

2шт.

68

19M8324

CAP SCREW

M10 X 16

2шт.

69

12M7066

LOCK WASHER

10 MM

2шт.

75

AH89069

ELBOW FITTING

1шт.

76

X4V6X-S

ELBOW FITTING

(SUB FOR AT128355 OR X3703-4-4)

1шт.

77

AU43156

ELBOW FITTING

1шт.

78

AE24616

ELBOW FITTING

1шт.
