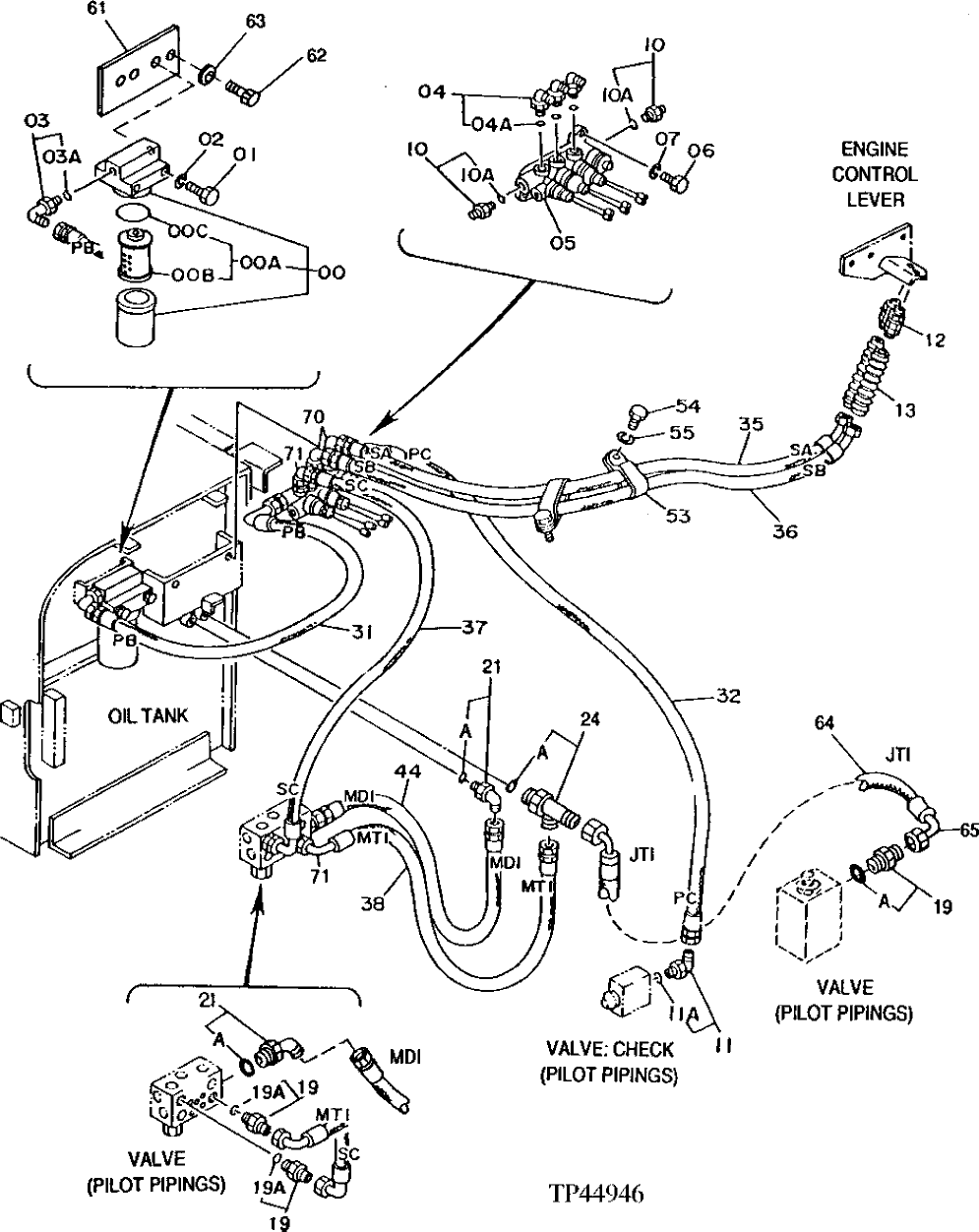

Запчасти John Deere 92DLC 84 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

0

4631976

OIL FILTER

(SUB FOR TH108402, 4191300)

1шт.

0A

AT186554

FILTER ELEMENT

(SUB FOR AT147821)

1шт.

0B

FILTER

(SUB AT147821 OR AT186554)

1шт.

0C

CH17154

PACKING

1шт.

1

J901095

BOLT

(SUB FOR AT153804, AT121865) (ALSO ORDER 12M7066)

2шт.

2

12M7066

LOCK WASHER

10 MM (0.394")

2шт.

3

4154672

ELBOW FITTING

(SUB FOR TH101008)

1шт.

3A

4506418

O-RING

(SUB FOR U46489)

1шт.

4

4154670

ELBOW FITTING

(SUB FOR TH100951)

3шт.

4A

M800650

PACKING

1шт.

5

4207082

SOLENOID VALVE

(SUB FOR AT131812)

1шт.

6

19M7662

CAP SCREW

M10 X 30

2шт.

7

12M7066

LOCK WASHER

10 MM (0.394")

2шт.

10

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006)

2шт.

10A

4506418

O-RING

(SUB FOR U46489)

1шт.

11

4154672

ELBOW FITTING

(SUB FOR TH101008)

1шт.

11A

4506418

O-RING

(SUB FOR U46489)

1шт.

12

4187914

CYLINDER

(SUB FOR TH108409) (AUTO IDLE MODE ADAPTER AND ECONOMY MODE ADAPTER)

2шт.

13

4208277

BOOT

(SUB FOR AT126398)

2шт.

19

4200465

ADAPTER FITTING

(SUB FOR TH108328)

3шт.

19A

M800650

PACKING

1шт.

21

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.

21A

M800650

PACKING

1шт.

24

4203171

TEE FITTING

(SUB FOR TH110578)

1шт.

24A

M800650

PACKING

1шт.

31

AT131893

HYDRAULIC HOSE - FABRICATE

3/4" X 550 MM (21-3/4") X 3/4", (PB)

1шт.

32

AT131874

HYDRAULIC HOSE - FABRICATE

3/4" X 750 MM (29-1/2") X 3/4", (SUB FOR 4318812, 4217354) (PC)

1шт.

35

AT30743

HYDRAULIC HOSE - FABRICATE

7/16" X 1 626 MM (64") X 7/16", (SUB FOR AT131980, ALONG WITH X4V6X-S)

1шт.

36

AT30743

HYDRAULIC HOSE - FABRICATE

7/16" X 1 626 MM (64") X 7/16", (SUB FOR AT131979, ALONG WITH X4V6X-S)

1шт.

37

AT132513

HYDRAULIC HOSE - FABRICATE

7/16" X 700 MM (27-1/2") X 7/16", (SUB FOR AT131820, ALONG WITH AH89069)

1шт.

38

AE42718

HYDRAULIC HOSE

7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR 4234326, ALONG WITH AH89069)

1шт.

44

4203161

HYDRAULIC HOSE

(SUB FOR TH108352) (SUB FOR AT131876)

1шт.

53

M45242

CLIP

(SUB FOR TH108321) (SUB FOR 4190292)

2шт.

54

19M8324

CAP SCREW

M10 X 16

2шт.

55

12M7066

LOCK WASHER

10 MM (0.394")

2шт.

61

9742819

PLATE

(SUB FOR AT167560)

1шт.

62

19M7402

CAP SCREW

M10 X 25

2шт.

63

12M7066

LOCK WASHER

10 MM (0.394")

2шт.

64

AT30743

HYDRAULIC HOSE - FABRICATE

7/16" X 1 626 MM (64") X 7/16", (JT1)

1шт.

65

AH89069

ELBOW FITTING

1шт.

70

X4V6X-S

ELBOW FITTING

(SUB FOR AT128355 OR X3703-4-4)

2шт.

71

AH89069

ELBOW FITTING

2шт.
