Запчасти John Deere 92DLC 80 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

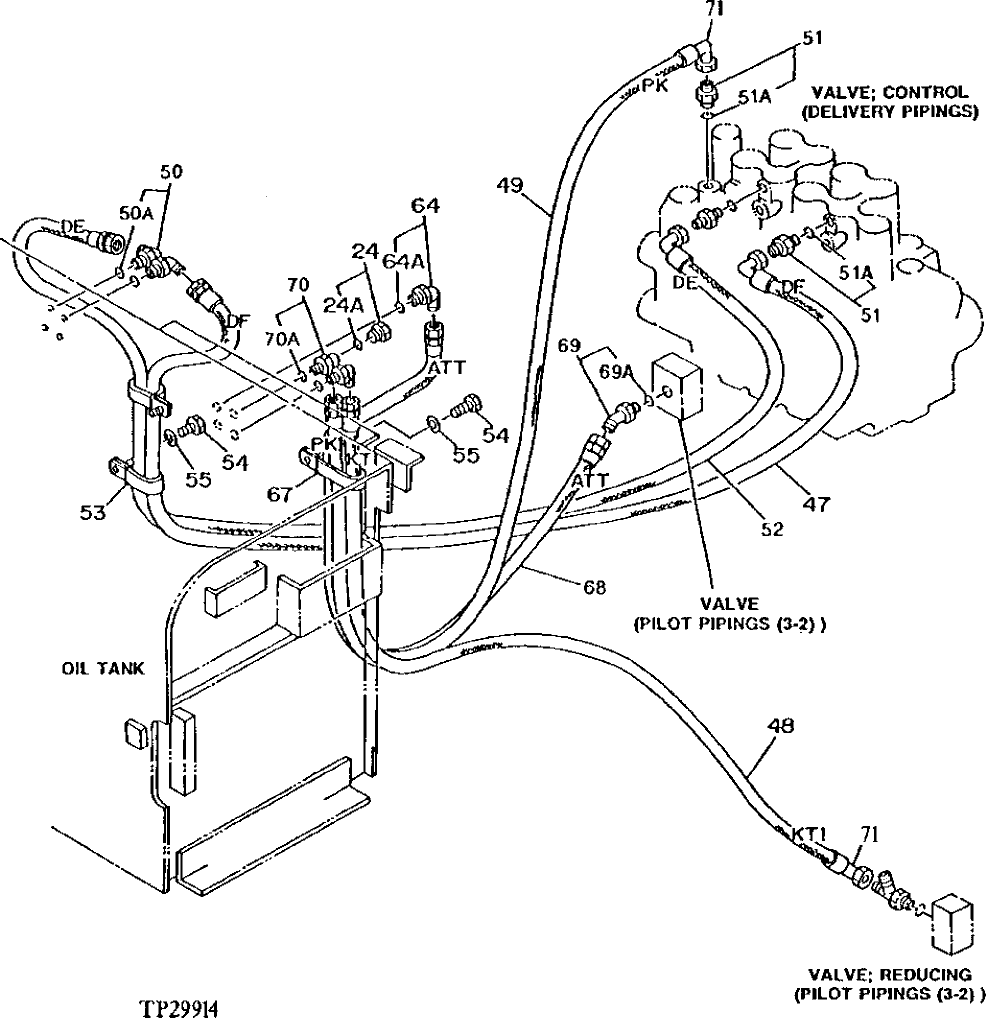

Схема запчастей John Deere 92DLC - 80 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

24

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

1шт.

24A

M800650

PACKING

1шт.

47

AT131891

HYDRAULIC HOSE - FABRICATE

(DF)

1шт.

48

AT132004

HYDRAULIC HOSE - FABRICATE

(SUB FOR 4207353 ALONG WITH AH89069)

1шт.

49

4260314

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT132503) (SUB FOR 4222081 ALONG WITH AH89069)

1шт.

50

4154670

ELBOW FITTING

(SUB FOR TH100951)

2шт.

50A

M800650

PACKING

1шт.

51

4200465

ADAPTER FITTING

(SUB FOR TH108328)

3шт.

51A

M800650

PACKING

1шт.

52

AT131891

HYDRAULIC HOSE - FABRICATE

1шт.

53

M45242

CLIP

(SUB FOR TH108321) (SUB FOR 4190292)

2шт.

54

19M8324

CAP SCREW

M10 X 16

3шт.

55

12M7066

LOCK WASHER

10 MM

3шт.

64

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

64A

M800650

PACKING

1шт.

67

R72659

CLAMP

(SUB FOR TH108594 OR 4235654)

1шт.

68

AT132003

HYDRAULIC HOSE - FABRICATE

1шт.

69

4193826

ELBOW FITTING

(SUB FOR TH106467)

1шт.

69A

M800650

PACKING

1шт.

70

4200470

ELBOW FITTING

(SUB FOR AT131737)

2шт.

70A

CH11570

O-RING

1шт.

71

AH89069

ELBOW FITTING

2шт.

Выбрано товаров: 22
