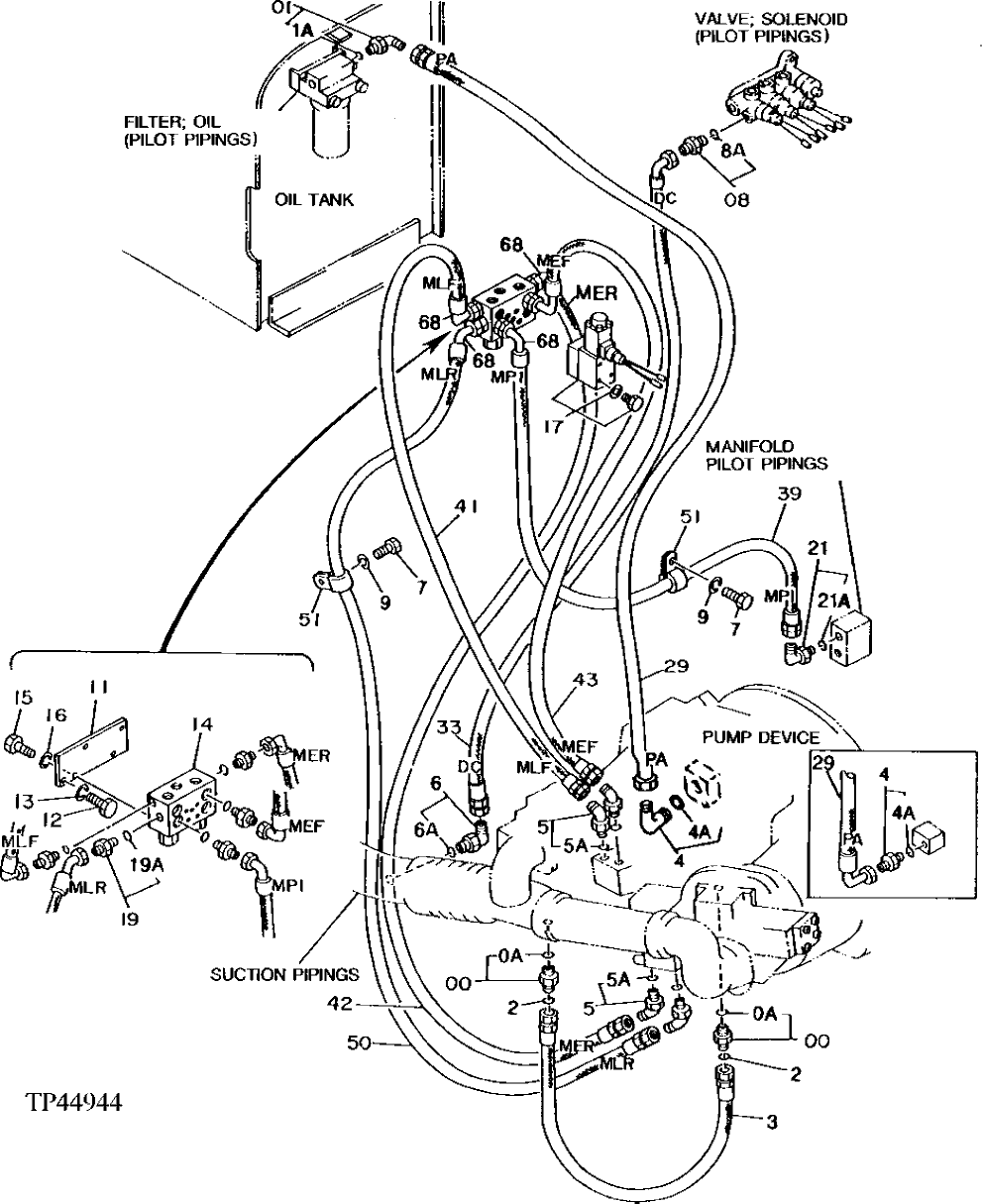

Запчасти John Deere 92DLC 76 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

0

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

2шт.

0A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

1

4154672

ELBOW FITTING

(SUB FOR TH101008)

1шт.

1A

4506418

O-RING

(SUB FOR U46489)

1шт.

2

T77858

O-RING

(SUB FOR TH108349)

2шт.

3

AT131788

HYDRAULIC HOSE - FABRICATE

1шт.

4

4221290

ADAPTER FITTING

(SUB FOR AT131902)

1шт.

4219345

ELBOW FITTING

(SUB FOR AT130819)

1шт.

4A

CH11570

O-RING

1шт.

5

4193826

ELBOW FITTING

(SUB FOR TH106467)

4шт.

5A

M800650

PACKING

1шт.

6

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

6A

M800650

PACKING

1шт.

7

19M8324

CAP SCREW

M10 X 16

2шт.

8

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

8A

M800650

PACKING

1шт.

9

12M7066

LOCK WASHER

10 MM

2шт.

11

4207494

PLATE

(SUB FOR AT131840)

1шт.

12

19M8324

CAP SCREW

2шт.

13

12M7066

LOCK WASHER

10 MM

2шт.

14

4207493

FLOW CONTROL HYD. VALVE

(SUB FOR AT131839)

1шт.

15

19M7932

CAP SCREW

M8 X 16

3шт.

16

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

3шт.

17

4184231

SOLENOID VALVE

(SUB FOR AT131721)

1шт.

19

4200465

ADAPTER FITTING

(SUB FOR TH108328)

5шт.

19A

M800650

PACKING

1шт.

21

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

21A

M800650

PACKING

1шт.

29

AT69450

HYDRAULIC HOSE - FABRICATE

(PA) (SUB FOR AT132005 ALONG WITH AT130819)

1шт.

AT69450

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT130818 ALONG WITH AT130819)

1шт.

33

AT131821

HYDRAULIC HOSE - FABRICATE

(DC)

1шт.

39

AE42282

HYDRAULIC HOSE

(SUB FOR 4207329 ALONG WITH AH89069)

1шт.

41

AE42718

HYDRAULIC HOSE

(SUB FOR 4207330 ALONG WITH AH89069)

1шт.

42

AE42282

HYDRAULIC HOSE

(SUB FOR 4207333 ALONG WITH AH89069)

1шт.

43

AT132513

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131827)

1шт.

50

AE42280

HYDRAULIC HOSE

(SUB FOR 4207331 ALONG WITH AH89069)

1шт.

51

4190275

CLAMP

(SUB FOR TH108598)

2шт.

68

AH89069

ELBOW FITTING

5шт.
