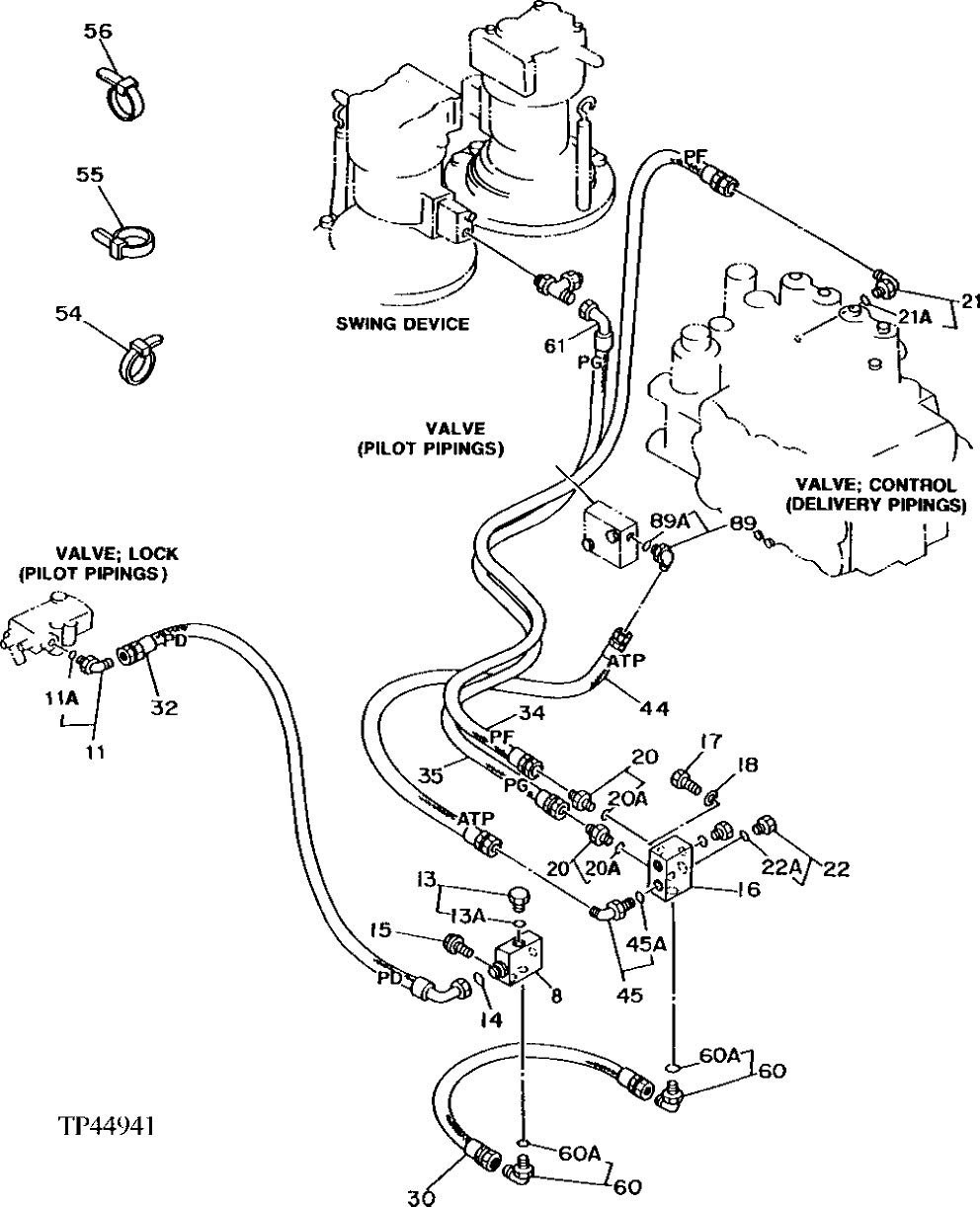

Запчасти John Deere 92DLC 72 - PILOT HYDRAULIC HOSES 3360 - EXCAVATOR 33

8

9072360

CHECK VALVE

(SUB FOR TH108415) (PILOT PRESSURE MANIFOLD)

1шт.

11

4154672

ELBOW FITTING

(SUB FOR AT131872) (SUB FOR TH101008)

1шт.

11A

4506418

O-RING

(SUB FOR U46489)

1шт.

13

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

1шт.

13A

M800650

PACKING

1шт.

14

T77857

O-RING

(SUB FOR TH108323)

1шт.

15

19M7935

CAP SCREW

M10 X 55

2шт.

16

2024853

MANIFOLD

(SUB FOR AT131597)

1шт.

17

19M7184

CAP SCREW

M8 X 55

2шт.

18

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

20

4200465

ADAPTER FITTING

(SUB FOR TH108328)

2шт.

20A

M800650

PACKING

1шт.

21

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

21A

M800650

PACKING

1шт.

22

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

2шт.

22A

M800650

PACKING

1шт.

30

AT37543

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131897)

1шт.

32

AT131892

HYDRAULIC HOSE - FABRICATE

(PD)

1шт.

34

AT132004

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131830)

1шт.

35

AE42280

HYDRAULIC HOSE

(SUB FOR 4207338 ALONG WITH AH89069)

1шт.

44

AE42282

HYDRAULIC HOSE

(SUB FOR AT131962) (CYLINDER ROD END)

1шт.

45

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

45A

M800650

PACKING

1шт.

54

H77698

TIE BAND

(SUB FOR M88199)

5шт.

55

H77698

TIE BAND

20шт.

56

H77698

TIE BAND

(SUB FOR TH106422)

5шт.

60

A852333

ELBOW FITTING

(SUB FOR TH101047) (SUB FOR 4154671)

2шт.

60A

CH11570

O-RING

1шт.

61

AH89069

ELBOW FITTING

1шт.

89

4193826

ELBOW FITTING

(SUB FOR TH106467)

1шт.

89A

M800650

PACKING

1шт.
