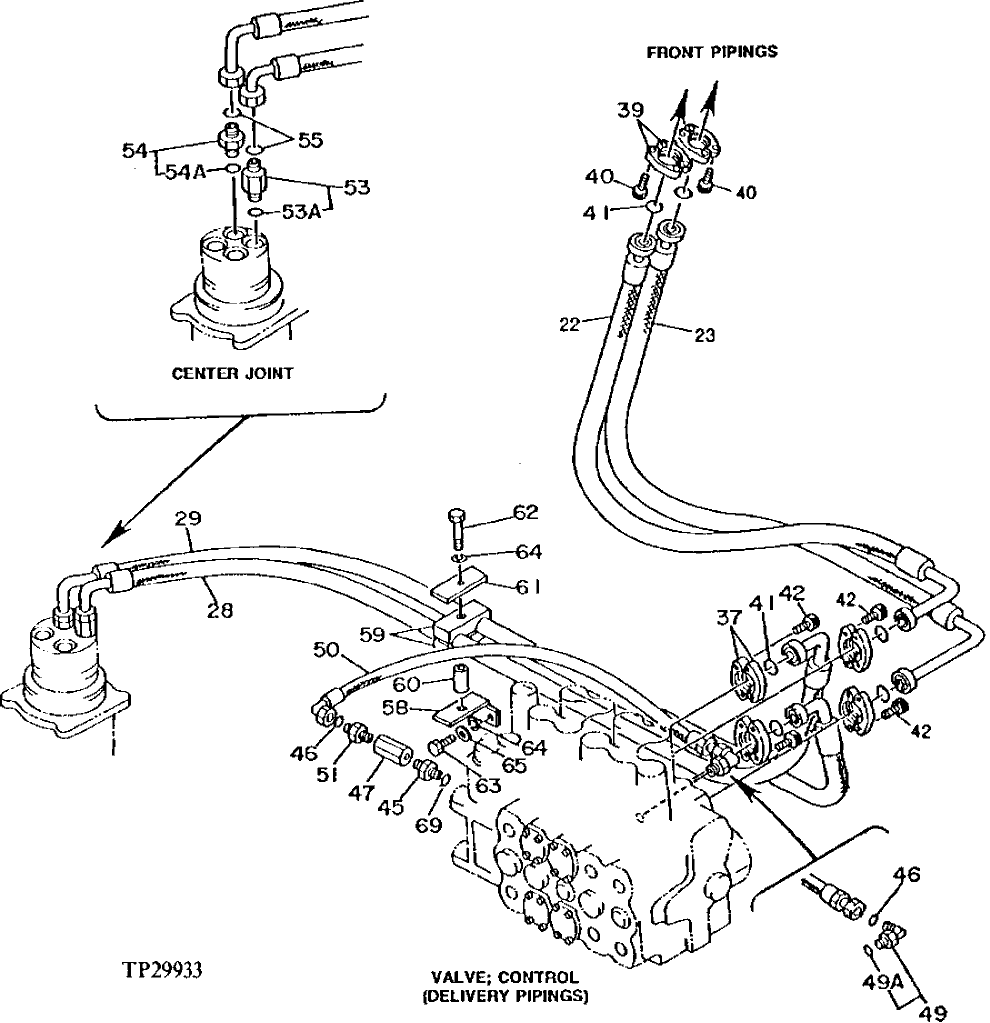

Запчасти John Deere 92DLC 68 - HIGH PRESSURE HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

22

4205321

HYDRAULIC HOSE

(SUB FOR AT131775) (BUCKET - BOOM TO VALVE)

1шт.

23

4205322

HYDRAULIC HOSE

(SUB FOR AT131776) (BUCKET - BOOM TO VALVE)

1шт.

28

4205326

HYDRAULIC HOSE

(SUB FOR AT131780)

1шт.

29

4205333

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131782)

1шт.

37

AT131685

FLANGE FITTING

8шт.

39

R29867

FLANGE FITTING

4шт.

40

19M8448

SCREW

M12 X 35

8шт.

41

T72216

O-RING

6шт.

42

19M8734

SCREW

M14 X 45, (SUB FOR TH102991)

16шт.

45

X8F3P4S

ADAPTER FITTING

(ALSO ORDER TH100960 OR 94-1303) (SUB FOR 4234652)

1шт.

46

T77857

O-RING

(SUB FOR TH108323)

2шт.

47

9034570

CHECK VALVE

(SUB FOR TH100838)

1шт.

49

A853344

ELBOW FITTING

(SUB FOR TH108401, 4200580)

1шт.

49A

4506418

O-RING

(SUB FOR U46489)

1шт.

50

AT134059

HYDRAULIC HOSE - FABRICATE

1шт.

51

4210942

ADAPTER FITTING

(SUB FOR AT131868)

1шт.

53

4205141

ADAPTER FITTING

(SUB FOR AT131770)

1шт.

53A

TH101926

O-RING

1шт.

54

4189535

ADAPTER FITTING

(SUB FOR AT114853)

1шт.

54A

TH101926

O-RING

1шт.

55

T76938

O-RING

(SUB FOR TH108326)

2шт.

58

9730356

BRACKET

(SUB FOR AT132140)

1шт.

59

4205615

HOSE CLAMP

(SUB FOR AT131792)

2шт.

60

4205614

SPACER

(SUB FOR AT131791)

1шт.

61

4711050

PLATE

(SUB FOR AT131918, 4224002)

1шт.

62

19M8122

CAP SCREW

M12 X 85

1шт.

63

19M8011

CAP SCREW

M12 X 30, (SUB FOR AT131539 OR TH101717, ALONG WITH 12M7067)

2шт.

64

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

3шт.

65

12H301

LOCK WASHER

1/2"

2шт.

69

4506418

O-RING

(SUB FOR U46489)

1шт.
