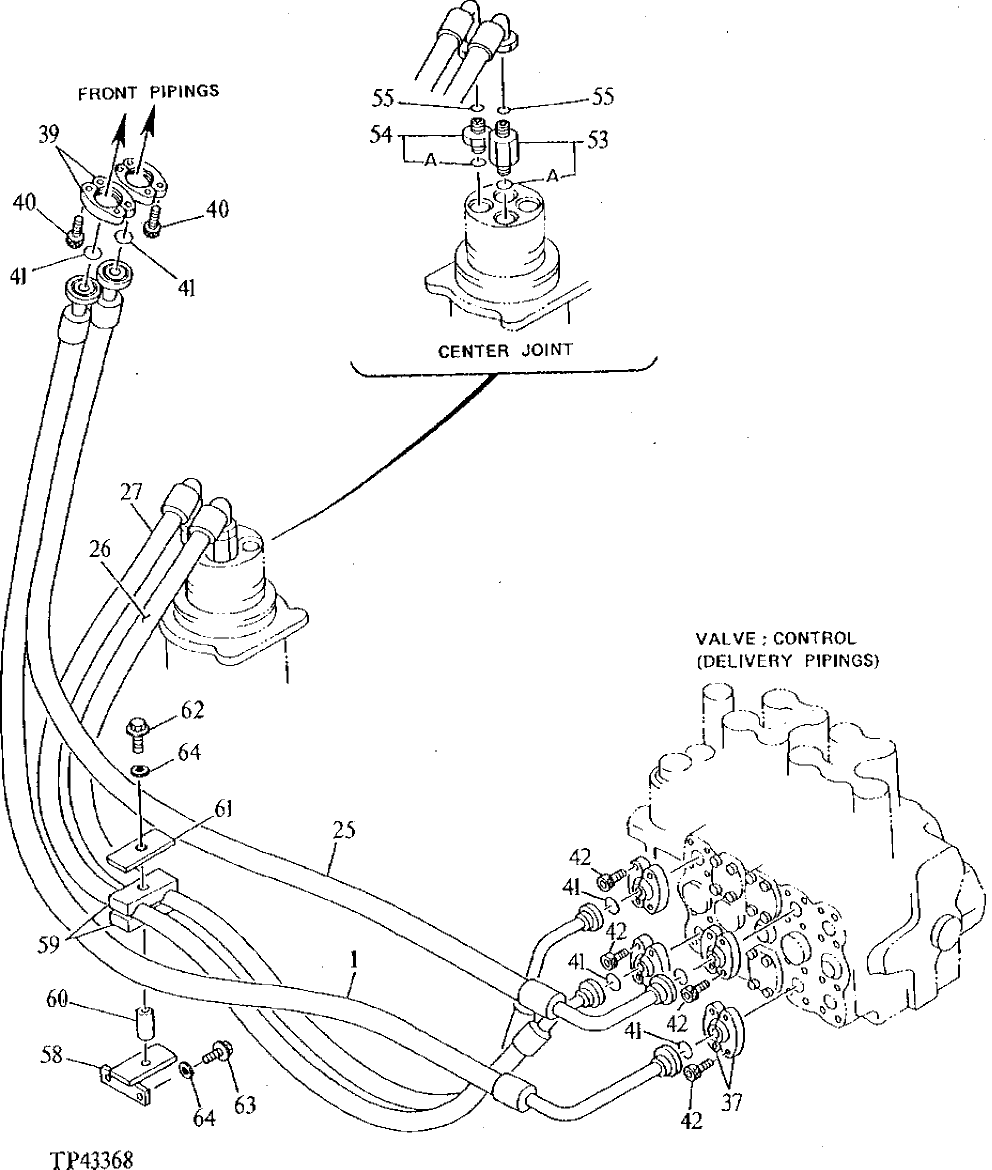

Запчасти John Deere 92DLC 66 - HIGH PRESSURE HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

1

4205323

HYDRAULIC HOSE

(SUB FOR AT131777) (ARM CYLINDER - BOOM TO VALVE)

1шт.

25

4205324

HYDRAULIC HOSE

(SUB FOR AT131778) (ARM CYLINDER - BOOM VALVE)

1шт.

26

4205325

HYDRAULIC HOSE

(SUB FOR AT131779)

1шт.

27

4205334

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT131783)

1шт.

37

AT131685

FLANGE FITTING

8шт.

39

R29867

FLANGE FITTING

4шт.

40

19M8448

SCREW

M12 X 35

8шт.

41

T72216

O-RING

6шт.

42

19M8734

SCREW

M14 X 45, (SUB FOR TH102991)

16шт.

53

4205141

ADAPTER FITTING

(SUB FOR AT131770)

1шт.

53A

TH101926

O-RING

1шт.

54

4189535

ADAPTER FITTING

(SUB FOR AT114853)

1шт.

54A

TH101926

O-RING

1шт.

55

T76938

O-RING

(SUB FOR TH108326)

2шт.

58

9730356

BRACKET

(SUB FOR AT132140)

1шт.

59

4205615

HOSE CLAMP

(SUB FOR AT131792)

2шт.

60

4205614

SPACER

(SUB FOR AT131791)

1шт.

61

4711050

PLATE

(SUB FOR AT131918, 4224002)

1шт.

62

19M8122

CAP SCREW

M12 X 85

1шт.

63

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204)

2шт.

19M8011

CAP SCREW

M12 X 30, (SUB FOR AT131539 OR TH101717, ALONG WITH 12M7067)

2шт.

64

12H301

LOCK WASHER

1/2"

3шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

3шт.
