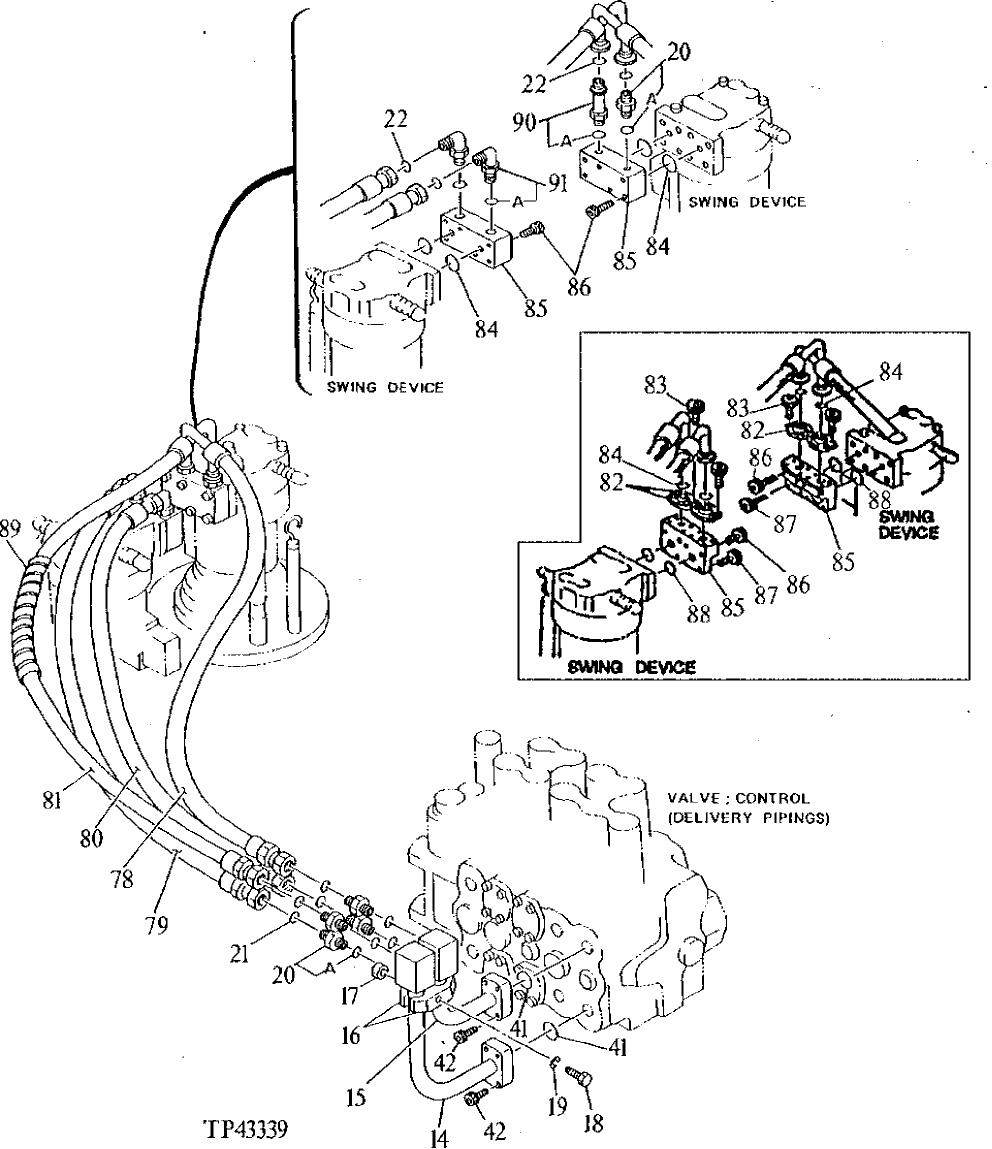

Запчасти John Deere 92DLC 64 - HIGH PRESSURE HYDRAULIC HOSES AND LINES 3360 - EXCAVATOR 33

14

8038954

OIL LINE

(SUB FOR AT132065)

1шт.

15

8038955

LINE

(SUB FOR AT132066)

1шт.

16

4053599

CLAMP

(SUB FOR TH101980)

2шт.

17

14M7275

NUT

M12

1шт.

18

19M7753

CAP SCREW

M12 X 70

1шт.

19

12H301

LOCK WASHER

12.700 MM (1/2")

1шт.

20

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

4шт.

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

5шт.

20A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

21

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070") (SUB FOR TH108349)

4шт.

22

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070")

4шт.

41

T72216

O-RING

37.694 X 3.531 MM (1-31/64" X 0.139")

2шт.

42

19M8734

SCREW

M14 X 45, (SUB FOR TH102991)

8шт.

78

AT131933

HYDRAULIC HOSE

3/4" X 930 MM (36-1/2") X 1-3/16"

1шт.

AT130871

HYDRAULIC HOSE - FABRICATE

1-3/16" X 950 MM (37-1/2") X 1-3/16"

1шт.

79

AT131933

HYDRAULIC HOSE

3/4" X 930 MM (36-1/2") X 1-3/16"

1шт.

AT120769

HYDRAULIC HOSE - FABRICATE

1-3/16" X 900 MM (35-1/2") X 1-3/16"

1шт.

80

AT131781

HYDRAULIC HOSE

3/4" X 800 MM (31-1/2") X 1-3/16"

1шт.

AT130869

HYDRAULIC HOSE - FABRICATE

1-3/16" X 820 MM (32-1/4") X 1-3/16"

1шт.

81

AT131787

HYDRAULIC HOSE

3/4" X 950 MM (37-1/2") X 1-3/16"

1шт.

AT130870

HYDRAULIC HOSE - FABRICATE

1-3/16" X 980 MM (38-1/2") X 1-3/16"

1шт.

82

R29424

FLANGE FITTING

(SUB FOR TH108300)

8шт.

83

M341032

SCREW

(SUB FOR TH101301)

16шт.

84

T59014

O-RING

24.990 X 3.530 MM (0.984" X 0.139")

4шт.

85

2024854

HOUSING

(SUB FOR AT131598)

2шт.

3073023

JUNCTION BLOCK

(SUB FOR AT130872) (SUB FOR AT171651)

2шт.

86

19M8444

SCREW

M12 X 60

8шт.

19M8499

CAP SCREW

M10 X 60

8шт.

87

19M8448

SCREW

M12 X 35

8шт.

88

T72216

O-RING

37.694 X 3.531 MM (1-31/64" X 0.139")

4шт.

89

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996, AT138222 OR 3052919)

1шт.

90

4189539

ADAPTER FITTING

(SUB FOR AT126359) (SUB FOR AT107393)

1шт.

90A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

91

4157562

ELBOW FITTING

(SUB FOR TH109540)

2шт.

91A

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.
