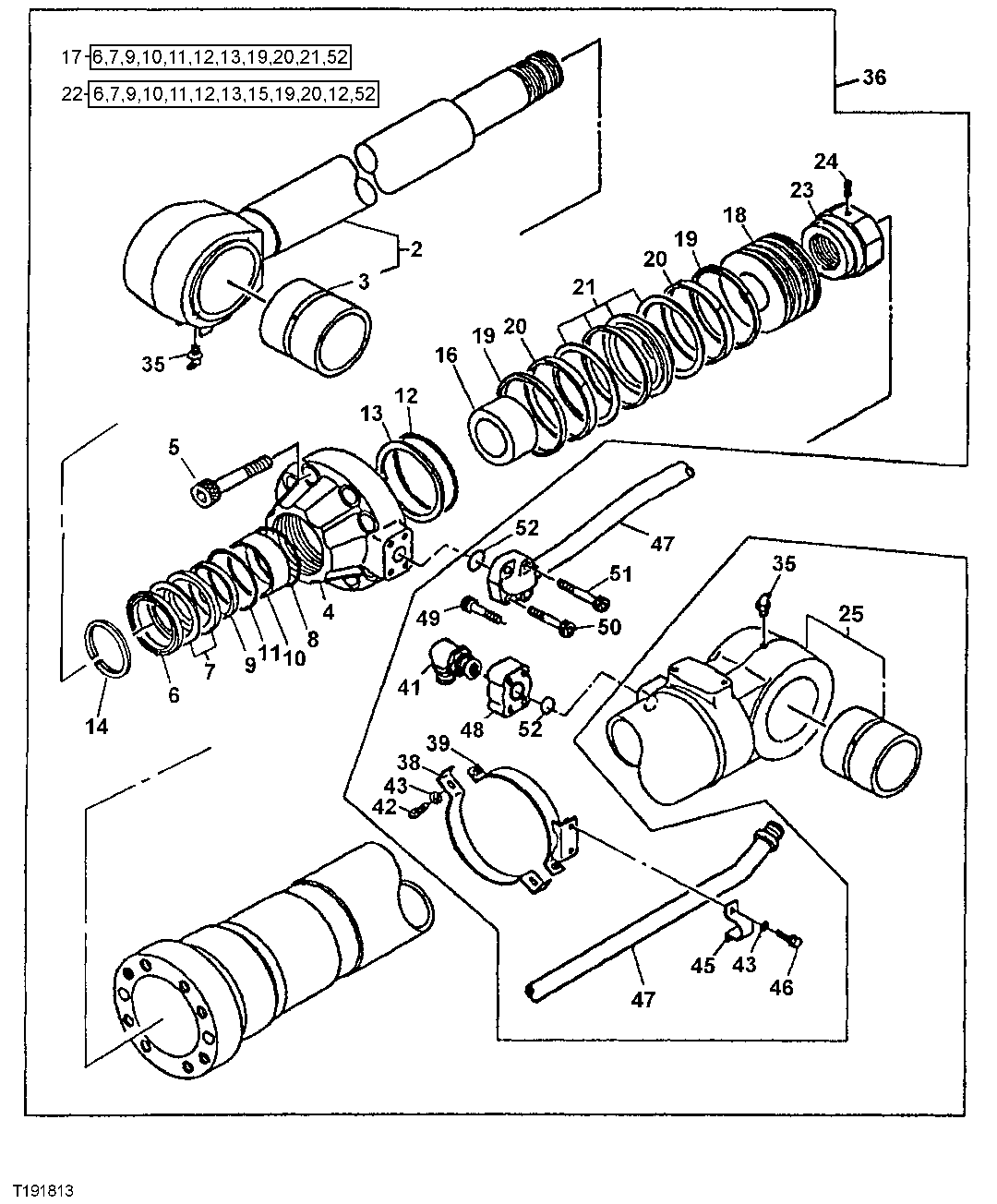

Запчасти John Deere 92DLC 50 - BUCKET CYLINDER 3360 - EXCAVATOR 33

1

3031789

BUSHING

(SUB FOR TH110072)

1шт.

2

7017181

HYDRAULIC CYLINDER ROD

(SUB FOR TH111570)

1шт.

3

3036659

BUSHING

(SUB FOR TH111167)

1шт.

4

1022645

HYDRAULIC CYLINDER CAP

(SUB FOR AT131253 OR TH111113) (ALSO ORDER AT264274, AT264294 AND 4369508)

1шт.

5

19M8630

SCREW

M24 X 80, (SUB FOR TH111067)

8шт.

6

AT264407

SEAL

(A) (B) (SUB FOR TH111215) (CYLINDER SERIAL NUMBER)

1шт.

AT264294

SEAL

(SUB FOR AT217969, 4348201) (CYLINDER SERIAL NUMBER)

1шт.

7

AT264408

SEAL

(A) (B) (SUB FOR TH111216)

1шт.

8

4264982

SNAP RING

(SUB FOR AT131254)

1шт.

9

4389326

RING

(A) (B) (SUB FOR TH111217, AT201003 AND AT264409)

1шт.

10

AT264239

BUSHING

(A) (B) (SUB FOR TH111218, AT131420)

1шт.

11

AT264406

O-RING

(A) (B) (SUB FOR TH111212)

1шт.

12

TH110052

O-RING

(A) (CYLINDER SERIAL NUMBER)

1шт.

AT264274

O-RING

(B) (SUB FOR AT159582, 4267138) (CYLINDER SERIAL NUMBER)

1шт.

13

AT264399

BACK-UP RING

(A) (B) (SUB FOR TH110055) (CYLINDER SERIAL NUMBER)

1шт.

14

4369508

RING

RETAINING, (SUB FOR AT217983) (CYLINDER SERIAL NUMBER)

1шт.

15

AT280433

BACK-UP RING

(B) (NOT ILLUSTRATED)

1шт.

16

4194625

RING

(SUB FOR TH111275)

1шт.

17

AT196474

SEAL KIT

(INCLUDES PARTS MARKED (A)) (CYL S/N -803512) (SUB FOR TH111625, 9181751)

1шт.

18

3080835

PISTON

(SUB FOR TH111164 AND 3036603)

1шт.

19

AT264400

RING

(A) (B) (SUB FOR TH110062, 4185247)

2шт.

20

AT264401

WEAR RING

(A) (B) (SUB FOR TH110063)

2шт.

21

AT264402

RING

(A) (B) (SUB FOR TH110065)

1шт.

22

9175564

SEAL KIT

(INCLUDES ALL PARTS MARKED B) (CYL S/N 803513- ) (SUB FOR AT264430, AT181792)

1шт.

23

3039348

NUT

(SUB FOR TH111191)

1шт.

24

4201806

SET SCREW

(SUB FOR TH110066)

1шт.

25

4646017J

HYDRAULIC CYLINDER BARREL

(SUB FOR TH111599 OR 9121231)

1шт.

35

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

2шт.

36

9111168

HYDRAULIC CYLINDER

(SUB FOR 9076768EX, AT182455)

1шт.

38

8036709

CLAMP

(SUB FOR TH110057)

2шт.

39

8038475

CLAMP

(SUB FOR TH110056)

2шт.

41

A853388

ELBOW FITTING

(SUB FOR TH108325 OR 4198799)

1шт.

42

19M7550

CAP SCREW

M10 X 35

4шт.

43

12M7066

LOCK WASHER

10 MM

8шт.

45

4174241

CLAMP

(SUB FOR TH110059)

2шт.

46

19M7402

CAP SCREW

M10 X 25

4шт.

47

8044732

TUBE

(SUB FOR AT128498)

1шт.

48

3046126

TUBE

(SUB FOR AT128499)

1шт.

49

19M8448

SCREW

4шт.

50

19M8341

SCREW

M12 X 45

2шт.

51

19M8444

SCREW

2шт.

52

AT264324

O-RING

(A) (B) (SUB FOR TH100044)

2шт.
