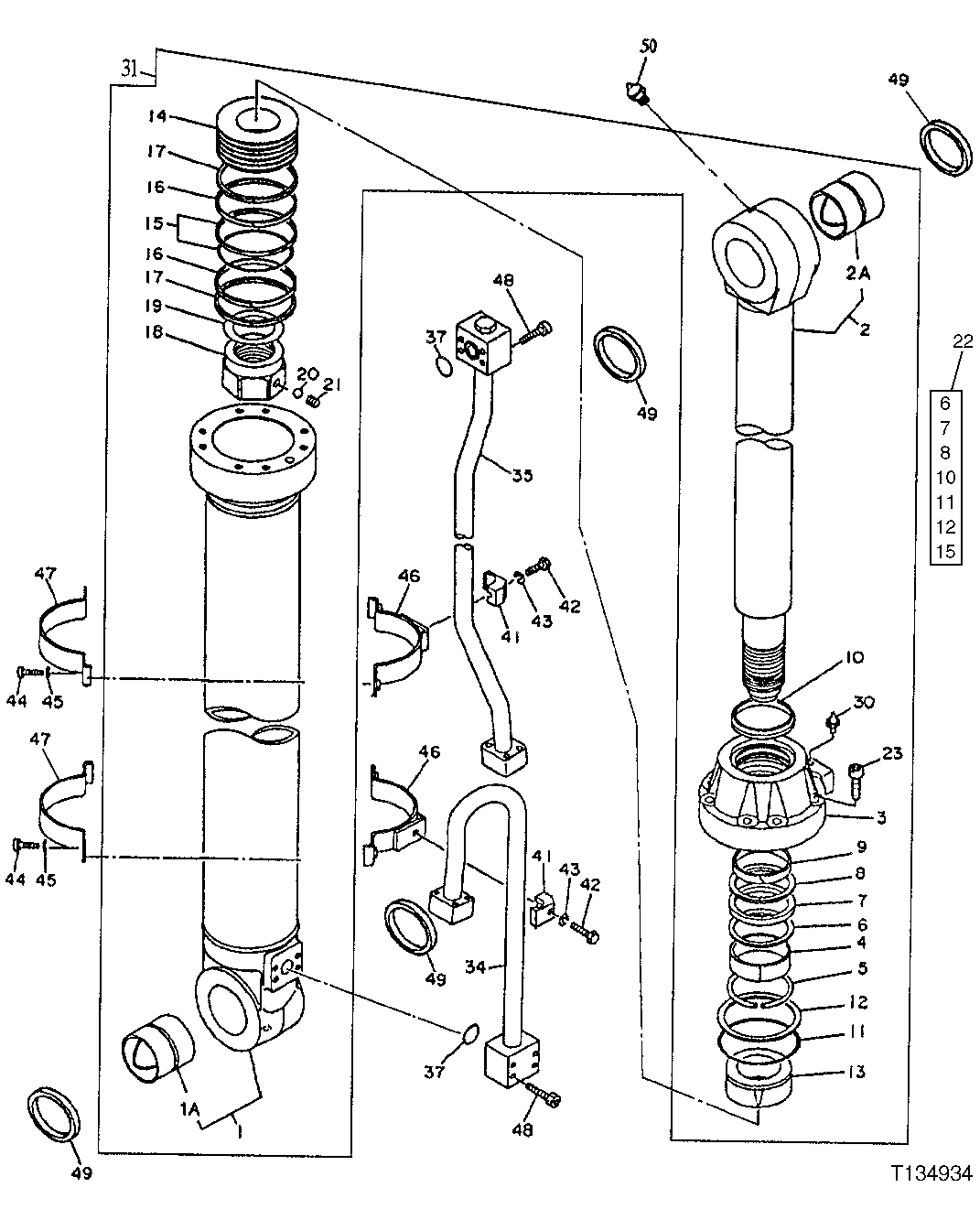

Запчасти John Deere 92DLC 48 - ARM CYLINDER 3360 - EXCAVATOR 33

1

0353001

HYDRAULIC CYLINDER BARREL

(SUB FOR AT132310)

1шт.

1A

0352722-P

BUSHING

(SUB FOR AT132301)

1шт.

2

0353002

ROD

(SUB FOR AT132311)

1шт.

2A

0352722-P

BUSHING

(SUB FOR AT132301)

1шт.

3

0353003

HYDR. CYLINDER ROD GUIDE

(SUB FOR AT132312)

1шт.

4

AT264250

BUSHING

(SUB FOR AT132313, 0353004)

1шт.

5

0133709

SNAP RING

(SUB FOR TH104999)

1шт.

6

AT264251

RING

(A) (SUB FOR 0941506 OR AT132314 OR 0353005 OR 4S00045)

1шт.

7

AT264242

SEAL

(A) (SUB FOR AT132164, 4S00037)

1шт.

8

AT264246

BACK-UP RING

(A) (SUB FOR AT132173, 4S00038)

1шт.

9

0417605

RING

(SUB FOR 0353006) (SUB FOR AT132315)

1шт.

10

AT264282

RING

(A) (SUB FOR AT132174, AT191199, 4437982)

1шт.

11

AT264241

O-RING

(A) (SUB FOR AT132155, A811180)

1шт.

12

AT264243

BACK-UP RING

(A) (SUB FOR AT132168, 4S00079)

1шт.

13

0353007

BEARING

(SUB FOR AT132316)

1шт.

14

0353008

PISTON

(SUB FOR AT132317)

1шт.

15

T201905

O-RING

(A) (SUB FOR 4S00081 AND AT132169)

1шт.

16

AT264249

RING

(SUB FOR AT132186 AND 4S00091)

2шт.

17

AT264245

WEAR RING

(SUB FOR AT132170)

2шт.

18

0353009

NUT

(SUB FOR AT132318)

1шт.

19

0353010

SHIM

(SUB FOR AT132319)

1шт.

20

0353011

BALL

(SUB FOR AT132320)

1шт.

21

0353012

SET SCREW

(SUB FOR AT132321)

1шт.

22

4437964

SEAL KIT

(INCLUDES PARTS MARKED (A)) (ALSO ORDER AT264249, (2) AT132170 AND (2) AT132315) (SUB FOR AT132412, AT264427 OR AT302757)

1шт.

23

4104472

BOLT

(SUB FOR AT132322)

8шт.

30

0237418

BLEED VALVE

(SUB FOR TH102787)

2шт.

31

AT264201

CYLINDER

ARM, REMANUFACTURED, (SUB FOR AT131955, 4236055)

1шт.

34

0399001

LINE

(SUB FOR AT132323, 0353014) (ALSO ORDER (4) 19M8734)

1шт.

35

0353015

LINE

(SUB FOR AT132324)

1шт.

37

AT264254

O-RING

(SUB FOR AT132423, 955612)

2шт.

41

0972307

CLAMP

(SUB FOR AT132325, 0353016 OR 0353016J)

2шт.

42

19M4789

CAP SCREW

M14 X 80

2шт.

43

12H317

LOCK WASHER

9/16"

2шт.

44

19M7550

CAP SCREW

M10 X 35

4шт.

45

12M7066

LOCK WASHER

10 MM

4шт.

46

0353017

BAND

(SUB FOR AT132326)

2шт.

47

0353018J

HALF CLAMP

(SUB FOR 0353018) (SUB FOR AT132327)

2шт.

48

19M8803

SCREW

M14 X 90, (SUB FOR AT132328)

8шт.

49

TH103200

SEAL

(ROD AND HEAD END)

4шт.

50

TH100074

LUBRICATION FITTING

1шт.
