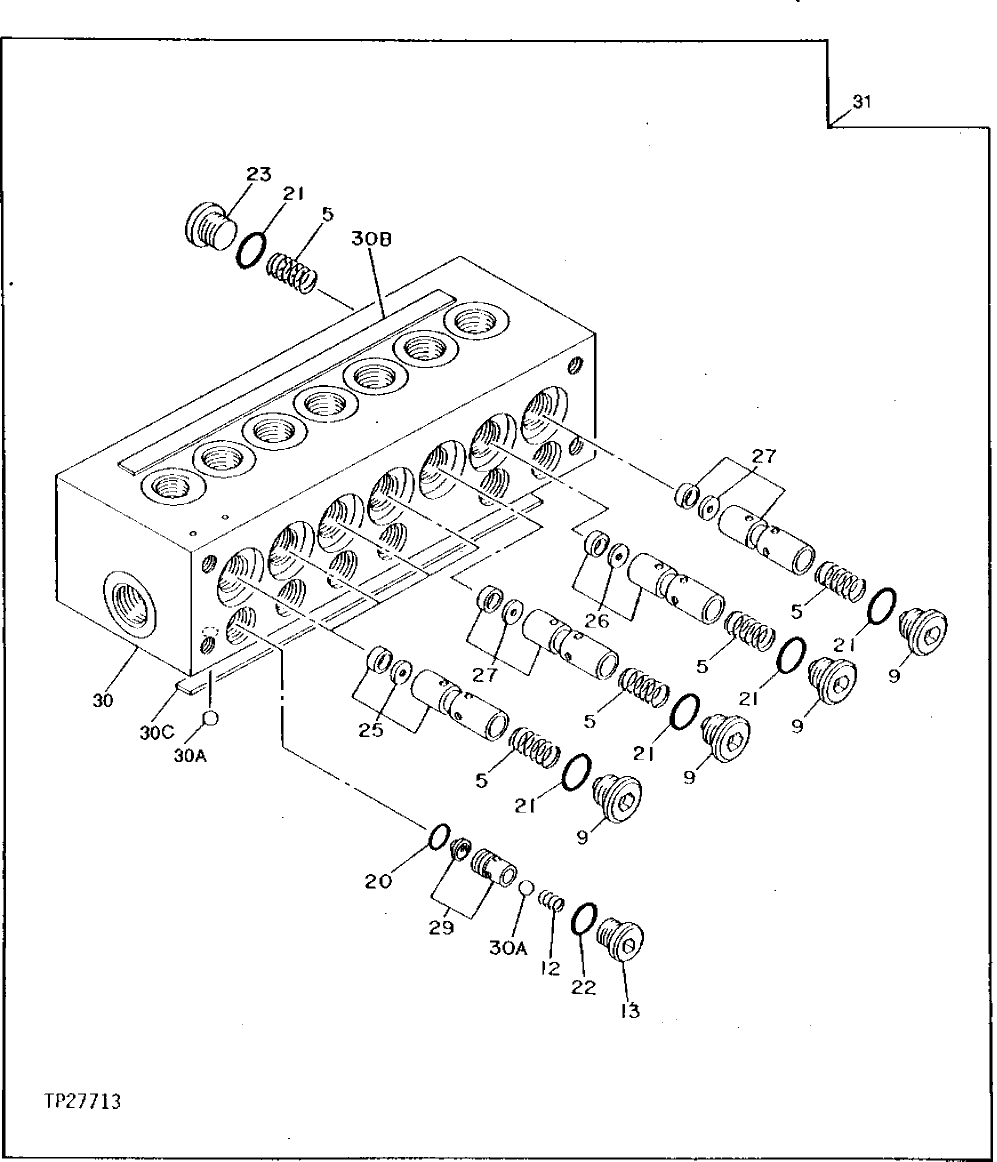

Запчасти John Deere 92DLC 34 - PILOT HYDRAULICS FLOW CONTROL VALVE 3360 - EXCAVATOR 33

5

0309801

SPRING

(SUB FOR TH109280)

14шт.

9

0309802

PIPE PLUG

(SUB FOR TH109281)

7шт.

12

0309803

SPRING

(SUB FOR TH109282)

6шт.

13

AT49216

FITTING PLUG

(SUB FOR TH109283) (CONTAINS O-RING)

6шт.

T70177

O-RING

(NOT ILLUSTRATED)

1шт.

20

CH11569

PACKING

6шт.

21

CH11570

O-RING

14шт.

22

4S00110

O-RING

(SUB FOR TH109284 OR R26448, THIS APPLICATION)

6шт.

23

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805)

7шт.

25

0352401

PLUNGER

(SUB FOR AT132273)

4шт.

26

0352402

PLUNGER

(SUB FOR AT127370)

1шт.

27

0352403

PLUNGER

(SUB FOR AT132274)

2шт.

29

0309810

FILTER

(SUB FOR TH109290)

6шт.

30

HOUSING

(SUB AT131919) (INCLUDES ITEMS 30A THRU 30C) ( TH109291 NO LONGER AVAILABLE)

1шт.

30A

L38718

BALL

(SUB FOR TH109294)

12шт.

30B

SEAL

(SUB AT131919)

1шт.

30C

SEAL

(SUB AT131919)

1шт.

31

4224218

HYD ACTUATED CONTROL VALVE

(SUB FOR AT131919)

1шт.
