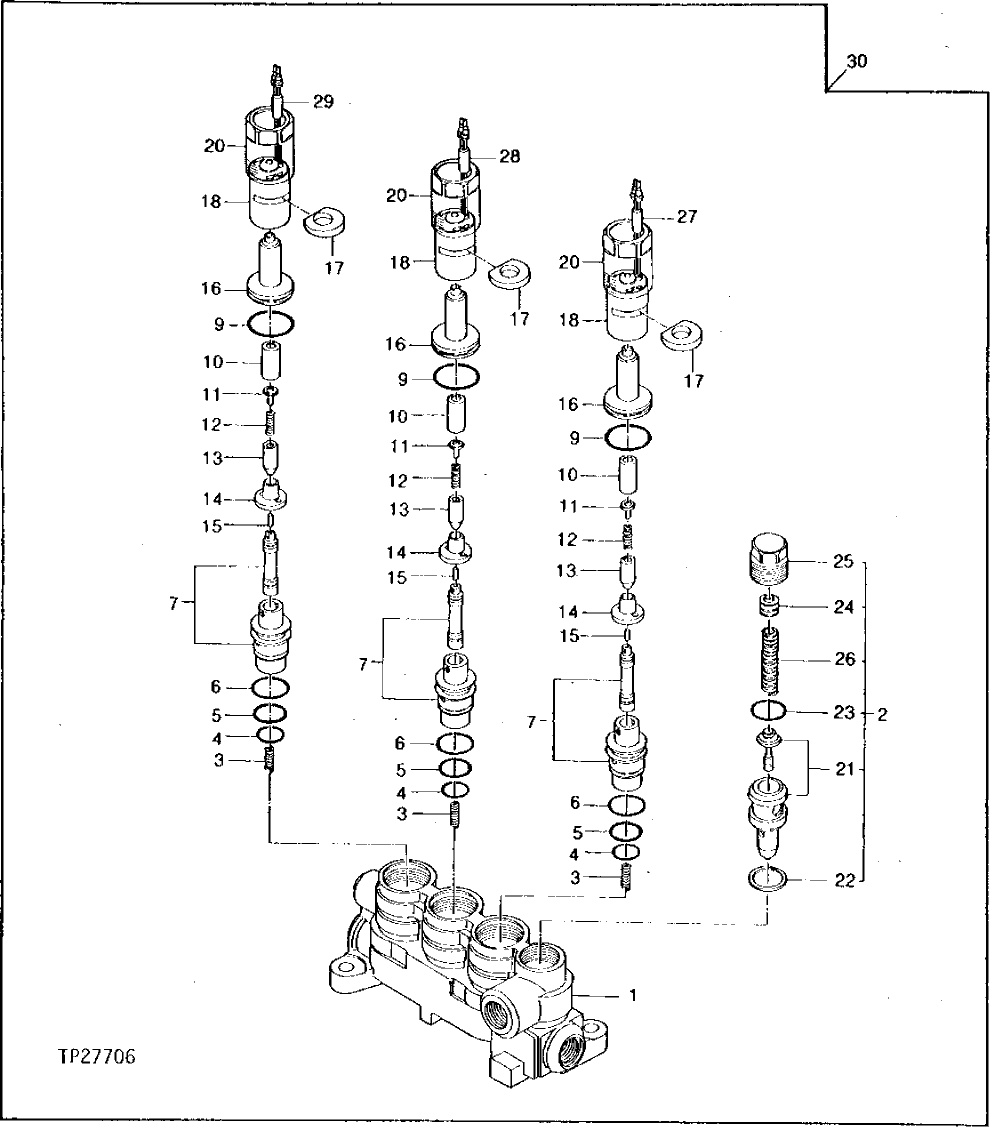

Запчасти John Deere 92DLC 24 - SOLENOID VALVE 3360 - EXCAVATOR 33

1

HOUSING

(SUB AT131812) ( TH109249 NO LONGER AVAILABLE)

1шт.

2

RELIEF VALVE

PILOT PRESSURE REGULATOR ( TH109250 NO LONGER AVAILABLE)

1шт.

3

0308711

SPRING

(SUB FOR TH109259)

3шт.

4

CH11570

O-RING

3шт.

5

985099

O-RING

(SUB FOR TH101479)

3шт.

6

AT264333

O-RING

(SUB FOR TH100096)

3шт.

7

VALVE SPOOL

( TH109260 NO LONGER AVAILABLE)

3шт.

9

0308713

O-RING

(SUB FOR TH109261)

3шт.

10

PIPE

( 0308714 NO LONGER AVAILABLE) (SUB FOR TH109262)

3шт.

4488303

LINE

3шт.

11

4488306

VALVE SEAT

(SUB FOR TH109263, 0308715 OR 4605187)

3шт.

12

4488310

SPRING

(SUB FOR TH109264 OR 0308716)

3шт.

13

0308717

PLUNGER

(SUB FOR TH109265)

3шт.

14

0308718

STOP

(SUB FOR TH109266)

3шт.

15

4488302

ROD

(SUB FOR 0308719) (SUB FOR TH109267)

3шт.

16

HOUSING

(SUB AT131812) ( TH109268 NO LONGER AVAILABLE)

3шт.

17

4488304

SPACER

(SUB FOR TH109269 OR 0308721)

3шт.

18

0308722

SOLENOID

(SUB FOR TH109270)

3шт.

20

0308724

SCREW

(SUB FOR TH109272)

3шт.

21

RELIEF VALVE

( TH109251 NO LONGER AVAILABLE)

1шт.

22

4487648

GASKET

(SUB FOR TH109252 OR 0308704)

1шт.

23

4487138

O-RING

(SUB FOR TH109253 OR 0308705)

1шт.

24

SHIM

(K) (SUB AT146246) ( TH109254 NO LONGER AVAILABLE)

1шт.

SHIM

(K) (SUB AT146246) ( TH109255 NO LONGER AVAILABLE)

1шт.

SHIM

(K) (SUB AT146246) ( TH109256 NO LONGER AVAILABLE)

1шт.

25

PLUG

( TH109257 NO LONGER AVAILABLE)

1шт.

26

0308710

SPRING

(SUB FOR TH109258)

1шт.

27

TAPE

( TH109273 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

28

TAPE

( TH109274 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

29

TAPE

( TH109275 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

30

4207082

SOLENOID VALVE

(SUB FOR AT131812)

1шт.
