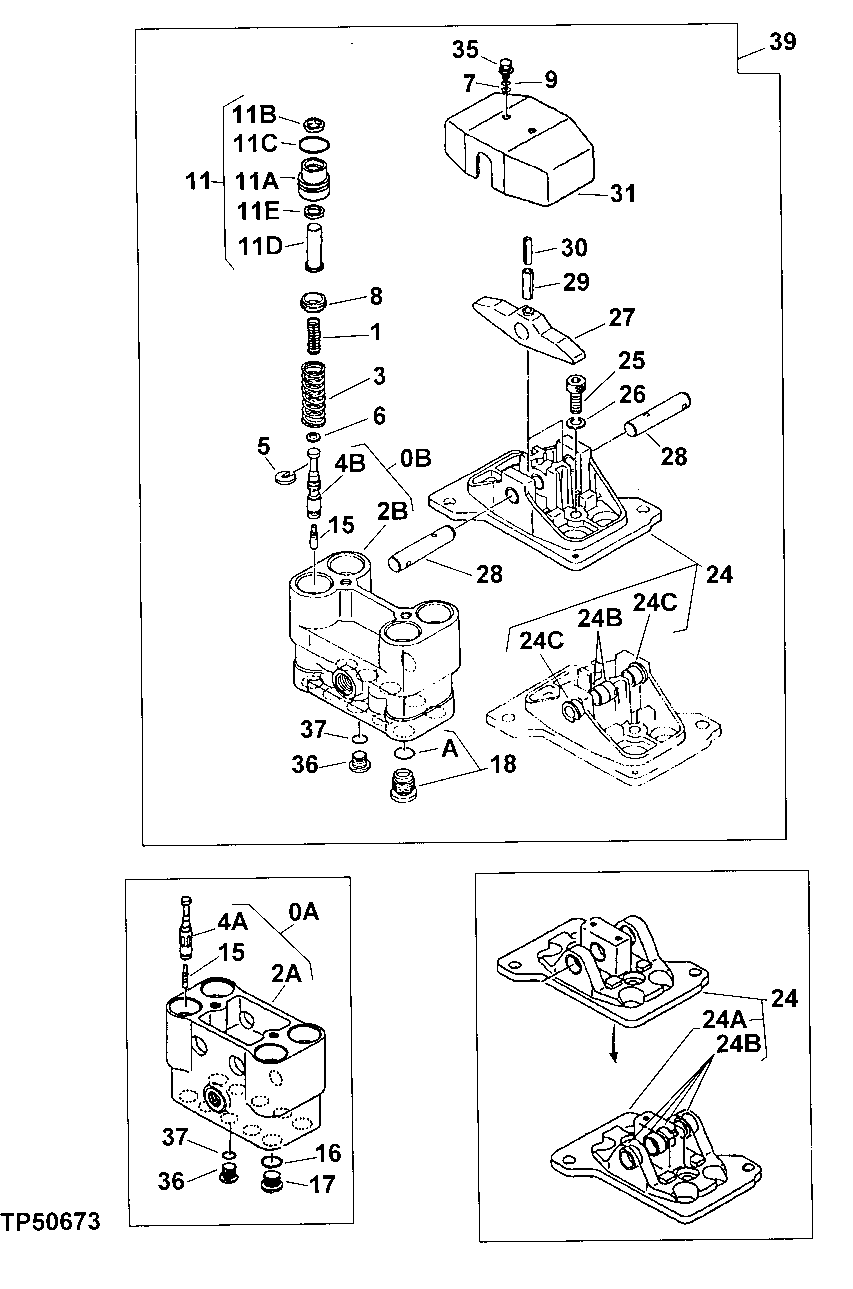

Запчасти John Deere 92DLC 20 - PROPEL PILOT VALVE 3360 - EXCAVATOR 33

0A

CASE

(SUB AT128307) ( TH109234 NO LONGER AVAILABLE)

1шт.

0B

CASE

(SUB AT128307)

1шт.

1

4203421

SPRING

(SUB FOR TH109235)

4шт.

2A

CASE

1шт.

2B

CASE

1шт.

3

4203413

COMPRESSION SPRING

(SUB FOR TH109236)

4шт.

4A

SPOOL

4шт.

4B

SPOOL

4шт.

5

4177777

SPACER

(SUB FOR TH109216)

4шт.

6

4173208

SHIM

(SUB FOR TH109217)

20шт.

7

12M7006

LOCK WASHER

6 MM

2шт.

8

4203412

GUIDE

(SUB FOR TH109237)

4шт.

9

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

11

9089355

PLUNGER

(SUB FOR AT128176)

4шт.

11A

4240150

SEAL

(SUB FOR TH111960)

1шт.

11B

U46166

O-RING

1шт.

11C

4240151

SEAL

(SUB FOR TH109224)

1шт.

11D

BUSHING

(SUB AT128176)

1шт.

11E

PUSH ROD

(SUB AT128176)

1шт.

15

4184929

PISTON

(SUB FOR TH109228)

4шт.

16

CH10569

PACKING

4шт.

17

4185057

DRAIN PLUG

(SUB FOR TH109241)

4шт.

18

9111583

FITTING PLUG

(SUB FOR AT134350)

4шт.

18A

CH10570

O-RING

1шт.

24

9085785

HOLDER

(SUB FOR TH111961) ASSEMBLY WITH BUSHINGS

1шт.

24A

HOLDER

(SUB TH111961)

1шт.

24B

4238834

BUSHING

(SUB FOR TH111963)

4шт.

4238834

BUSHING

(SUB FOR TH111963)

2шт.

24C

4274716

BUSHING

(SUB FOR AT154947)

2шт.

25

19M8440

SCREW

M10 X 25

2шт.

26

12M7066

LOCK WASHER

10 MM

2шт.

27

3035803

CAM

(SUB FOR TH109243)

2шт.

28

4190983

PIN FASTENER

(SUB FOR TH109244)

2шт.

29

34M7225

SPRING PIN

8 X 28 MM, (SUB FOR TH109245) (SUB FOR 34M6402)

2шт.

30

4213419

SPRING PIN

(SUB FOR TH111654)

2шт.

31

2022964

COVER

(SUB FOR TH109246)

1шт.

35

19M8425

CAP SCREW

M6 X 16, (SUB FOR 4181729, ALONG WITH 12M7006 AND 24M7054)

2шт.

19M7923

CAP SCREW

M6 X 12, (SUB FOR AT133603) (ALSO ORDER 12M7006 AND 24M7054)

2шт.

36

4208977

DRAIN PLUG

(SUB FOR TH111351)

2шт.

37

CH11561

PACKING

2шт.

39

9073404

HYD ACTUATED CONTROL VALVE

(SUB FOR TH108383) (SUB FOR AT128307)

1шт.
