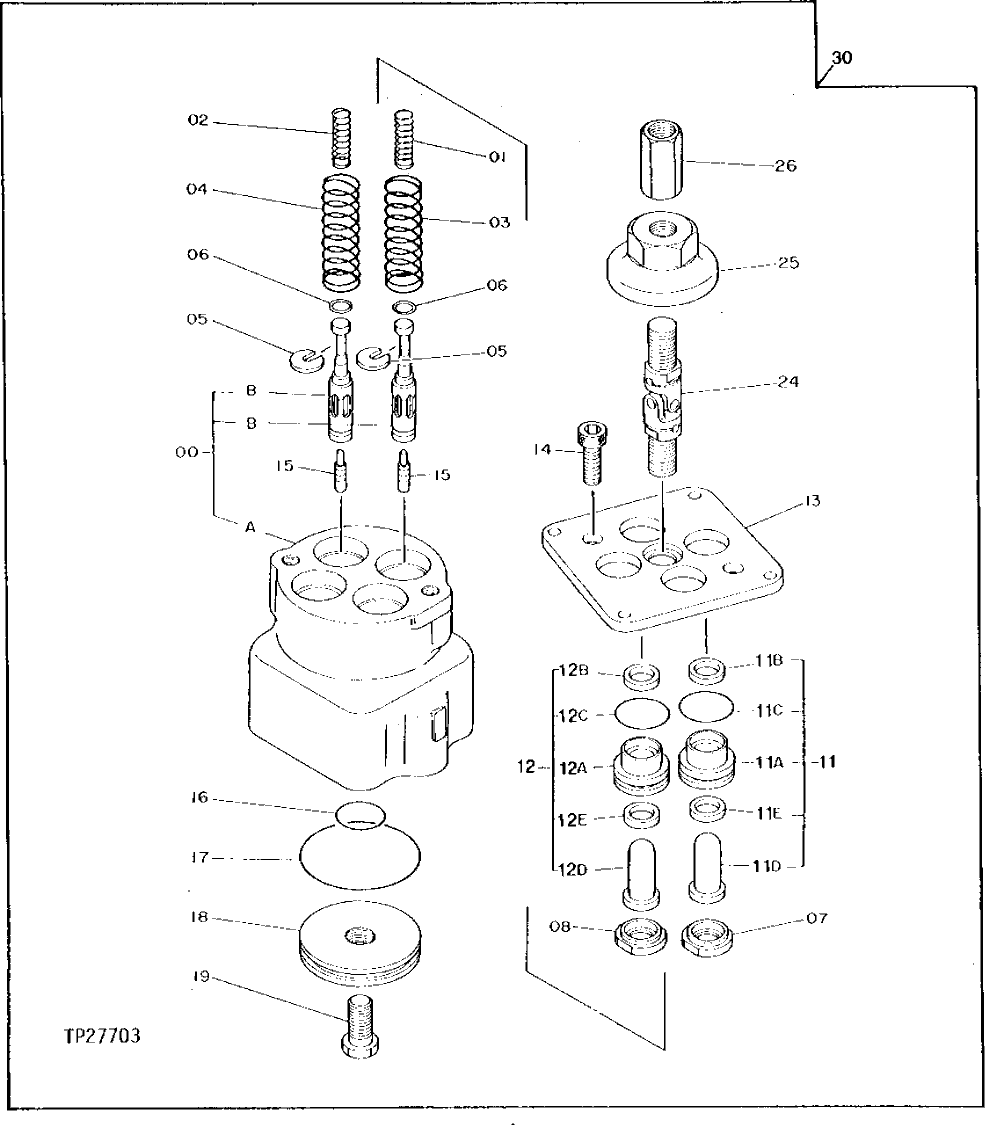

Запчасти John Deere 92DLC 14 - PILOT CONTROL VALVE 3360 - EXCAVATOR 33

0

CASE

( TH109211 NO LONGER AVAILABLE)

1шт.

0A

CASE

1шт.

0B

SPOOL

4шт.

1

4201915

SPRING

(SUB FOR TH109212)

2шт.

2

4166686

COMPRESSION SPRING

(SUB FOR TH109213)

2шт.

3

4195421

COMPRESSION SPRING

(SUB FOR TH109214)

2шт.

4

4186544

COMPRESSION SPRING

(SUB FOR TH109215)

2шт.

5

4177777

SPACER

(SUB FOR TH109216)

4шт.

6

4173208

SHIM

(SUB FOR TH109217)

20шт.

7

4179257

GUIDE

(SUB FOR TH109219) PORTS ONE AND THREE

2шт.

8

4177896

GUIDE

(SUB FOR TH109218) PORTS TWO AND FOUR

2шт.

11

PLUNGER

(SUB (2) 9104359, (2) 9104360 AND 4284175) PORTS ONE AND THREE ( 9089809 NO LONGER AVAILABLE)

2шт.

11A

BUSHING

1шт.

11B

4240150

SEAL

(SUB FOR TH111960)

1шт.

11C

U46166

O-RING

1шт.

11D

PUSH ROD

1шт.

11E

4240151

SEAL

(SUB FOR TH109224)

1шт.

12

PLUNGER

(SUB (2) 9104359, (2) 9104360 AND 4284175) PORTS TWO AND FOUR ( 9089808 NO LONGER AVAILABLE)

2шт.

12A

BUSHING

1шт.

12B

4240150

SEAL

(SUB FOR TH111960)

1шт.

12C

U46166

O-RING

1шт.

12D

PUSH ROD

1шт.

12E

4240151

SEAL

(SUB FOR TH109224)

1шт.

13

PLATE

( 4184930 NO LONGER AVAILABLE) (SUB 4284175, ALONG WITH (2) 9104359 AND (2) 9104360)

1шт.

14

19M8440

SCREW

M10 X 25

2шт.

15

4184929

PISTON

(SUB FOR TH109228)

4шт.

16

CH11562

O-RING

1шт.

17

CH11571

PACKING

1шт.

18

4184954

PLATE

(SUB FOR TH109229)

1шт.

19

19M8168

SCREW

M12 X 25

1шт.

24

4285209

UNIVERSAL JOINT

(SUB FOR TH109230)

1шт.

25

4184931

CAM

(SUB FOR TH109231)

1шт.

26

4182067

JOINTER

(SUB FOR TH109232)

1шт.

30

AT189840

HYD/PILOT CNTL VALVE REMAN

(USE AT131277 IF AVAILABLE) ( TH111710 NO LONGER AVAILABLE) (SUB FOR AT131277)

1шт.
