10 - MAIN CONTROL VALVE

Запчасти John Deere 92DLC 10 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33

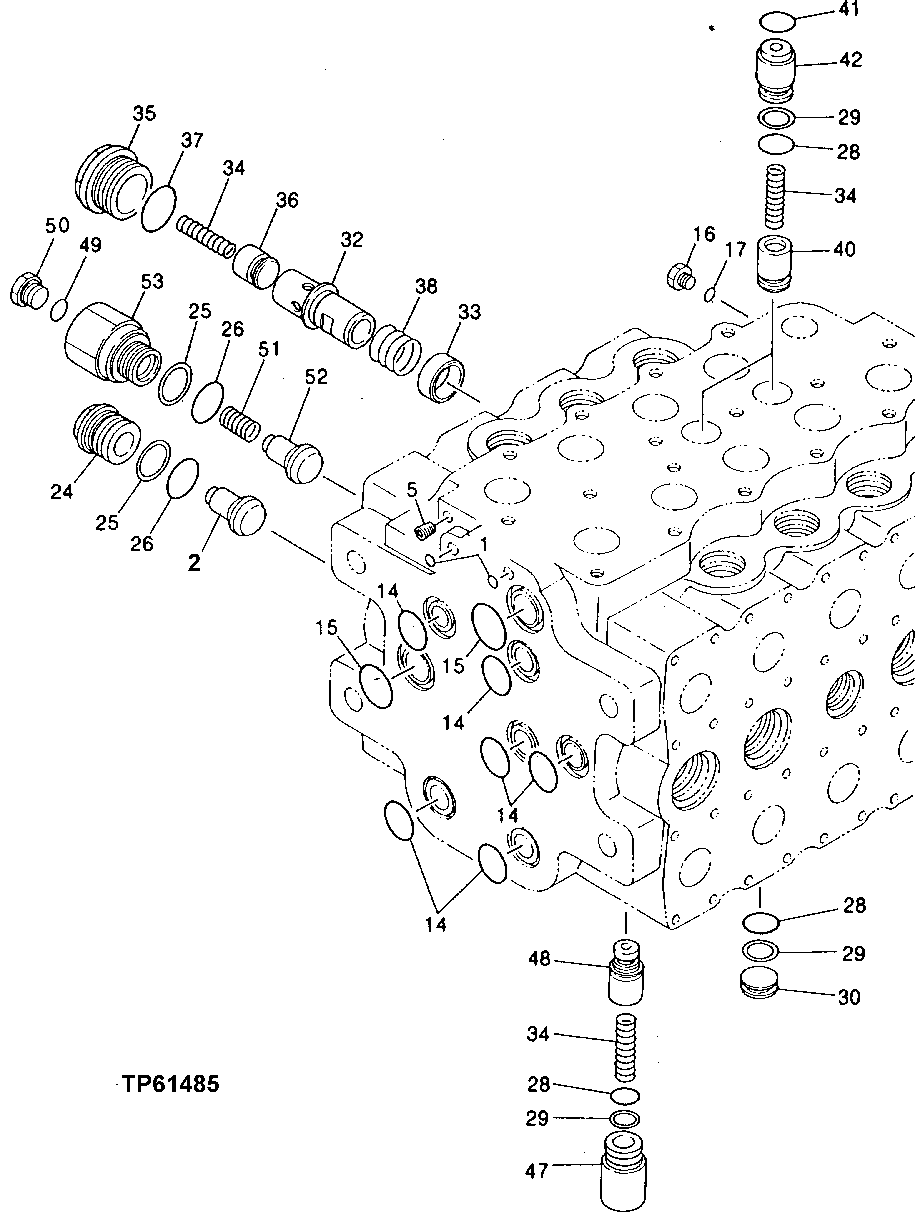

Схема запчастей John Deere 92DLC - 10 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CH17167

O-RING

2шт.

2

POPPET

(NOT REQUIRED)

1шт.

0488402

POPPET

(SUB FOR AT186334)

1шт.

5

94-2010

FITTING PLUG

(SUB FOR TH100689)

1шт.

14

AT264360

O-RING

(SUB FOR TH104930, 4506430)

6шт.

15

970860

O-RING

(SUB FOR TH104634)

2шт.

16

0332936

FITTING

(SUB FOR TH110337)

1шт.

17

M800650

PACKING

1шт.

24

0353213

DRAIN PLUG

(SUB FOR AT132341)

1шт.

0488403

PLUG

(SUB FOR AT186335) (SUB FOR AT130929, ALONG WITH 0488402)

1шт.

25

0353211

BACK-UP RING

(SUB FOR AT132339)

2шт.

26

R29463

O-RING

(SUB FOR AT132340)

2шт.

985098

O-RING

(SUB FOR TH102528)

2шт.

28

AT264333

O-RING

(SUB FOR TH100096)

4шт.

29

4028266

BACK-UP RING

(SUB FOR AT132396)

4шт.

30

0353218

PLUG

(SUB FOR AT132346)

1шт.

32

0353222

SLEEVE

(SUB FOR AT132350)

1шт.

4384858

SLEEVE

(SUB FOR AT130939, ALONG WITH 0488406 AND 0488405)

1шт.

33

0353223

POPPET

(SUB FOR AT132351)

1шт.

0399504

POPPET

(SUB FOR AT130936)

1шт.

34

4040288

SPRING

(SUB FOR AT132398)

4шт.

35

0353219

DRAIN PLUG

(SUB FOR AT132347)

1шт.

0488406

FITTING PLUG

(SUB FOR AT130935, THIS APPLICATION) (ALSO ORDER 4384858) (SUB FOR AT186340)

1шт.

36

4040287

POPPET

(SUB FOR AT132397)

1шт.

4040287

POPPET

(SUB FOR AT132397) (ALSO ORDER 0488405 AND 4384874)

1шт.

37

4037888

O-RING

(SUB FOR AT122625)

1шт.

38

0353229

SPRING

(SUB FOR AT132357)

1шт.

0384111

SPRING

(SUB FOR AT131255)

1шт.

40

0238407

POPPET

(SUB FOR AT132166)

2шт.

41

CH11564

PACKING

(SUB FOR AT128324)

2шт.

CH11564

PACKING

2шт.

42

0353214

PLUG

(SUB FOR AT132342)

2шт.

47

0353221

PLUG

(SUB FOR AT132349)

1шт.

48

0353220

POPPET

(SUB FOR AT132348)

1шт.

49

4506418

O-RING

(SUB FOR U46489)

1шт.

50

0225216

FITTING PLUG

(SUB FOR TH105757)

1шт.

51

0353234

SPRING

(SUB FOR AT132362)

1шт.

52

0353233

POPPET

(SUB FOR AT132361)

1шт.

53

0353235

PLUG

(SUB FOR AT132363)

1шт.

0399508

FITTING PLUG

(SUB FOR AT130940)

1шт.

55

4296334

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR AT130927, AT131804, AT131432, AT186105 AND 4296334EX)

1шт.
