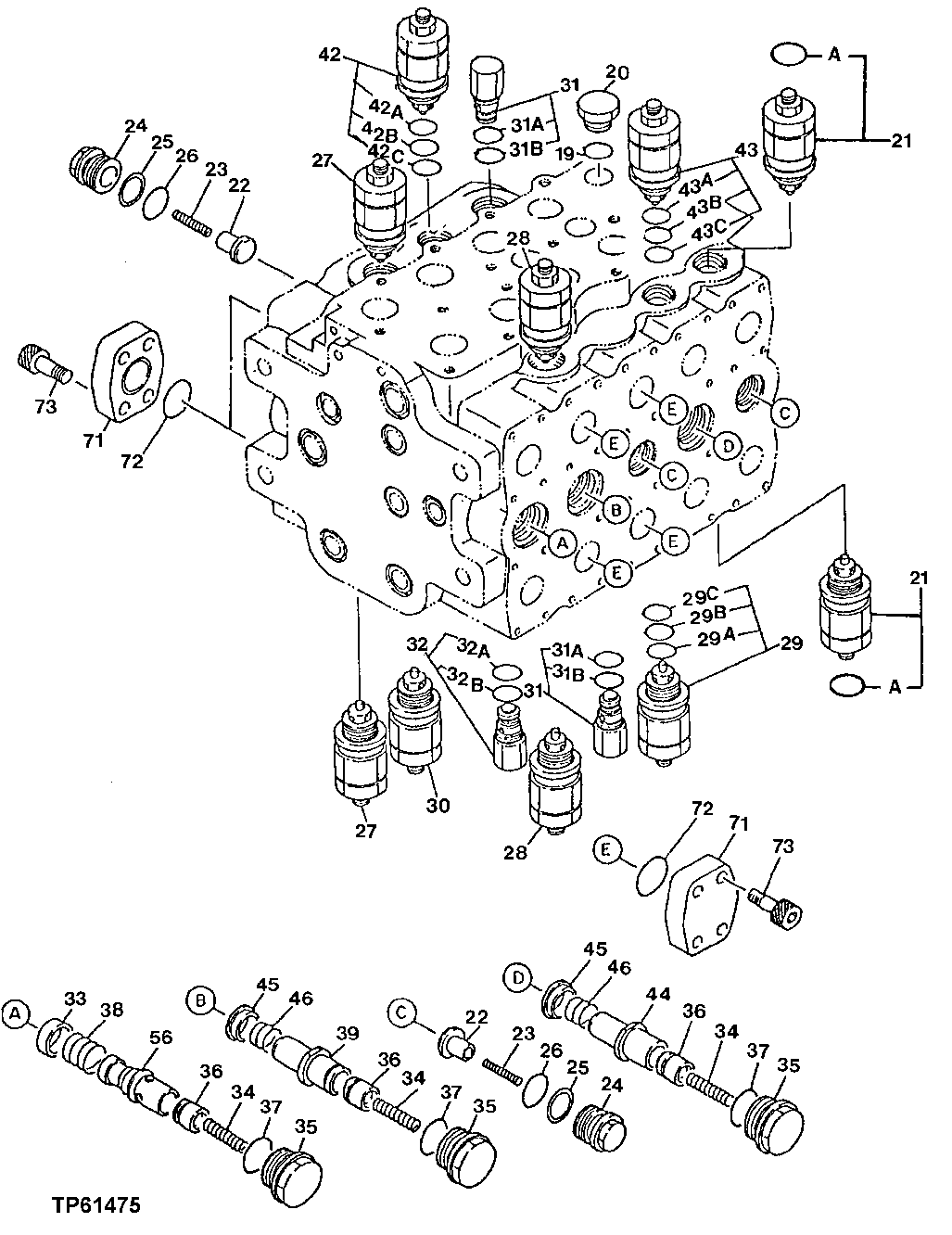

Запчасти John Deere 92DLC 8 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33

37

4037888

O-RING

43.700 X 3.500 MM (1.720" X 0.138") (SUB FOR AT122625)

3шт.

38

0353229

SPRING

(SUB FOR AT132357)

1шт.

0384111

SPRING

(SUB FOR AT131255)

1шт.

39

4384874

SLEEVE

(SUB FOR AT132343, ALONG WITH 0488406 AND 0488405)

1шт.

4384874

SLEEVE

(SUB FOR AT130932, ALONG WITH 0488406 AND 0488405)

1шт.

42

RELIEF VALVE

(SUB AT131480) (BOOM) ( AT132416 NOT AVAILABLE FOR SERVICE)

1шт.

4296985

PRESSURE RELIEF VALVE

(SUB FOR AT131480) (BOOM)

1шт.

42A

R29936

O-RING

29.743 X 2.946 MM (1.171" X 0.116") (SUB FOR AT127982)

1шт.

42B

4288115

BACK-UP RING

(SUB FOR AT131478)

1шт.

42C

4051360

O-RING

(SUB FOR AT131479)

1шт.

43

RELIEF VALVE

(SUB AT131480) (ARM) ( AT132416 NOT AVAILABLE FOR SERVICE)

1шт.

4296985

PRESSURE RELIEF VALVE

(SUB FOR AT131480)

1шт.

43A

R29936

O-RING

29.743 X 2.946 MM (1.171" X 0.116") (SUB FOR AT127982)

1шт.

43B

4288115

BACK-UP RING

(SUB FOR AT131478)

1шт.

43C

4051360

O-RING

(SUB FOR AT131479)

1шт.

44

SLEEVE

(SUB 4384875, 0488405 AND 0488406) ( AT132352 NO LONGER AVAILABLE)

1шт.

4384875

SLEEVE

(SUB FOR AT130937, ALONG WITH 0488405 AND 0488406)

1шт.

45

0353217

POPPET

(SUB FOR AT132345)

2шт.

4314111

POPPET

(SUB FOR AT130934) (SUB FOR AT169266)

2шт.

46

0353216

SPRING

(SUB FOR AT132344)

2шт.

0399502

SPRING

(SUB FOR AT130933)

2шт.

56

0353225

SLEEVE

(SUB FOR AT132353)

1шт.

0488409

SLEEVE

(SUB FOR 0404106) (SUB FOR AT130938, ALONG WITH 0488405 AND 0488406)

1шт.

71

T153655

PLUG

(SUB FOR AT132358)

6шт.

72

R61105

O-RING

37.694 X 3.531 MM (1-31/64" X 0.139") (SUB FOR AT132359)

6шт.

73

0353232

BOLT

(SUB FOR AT132360)

24шт.

74

4296334

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR AT130927, AT131804, AT131432, AT186105 AND 4296334EX)

1шт.
