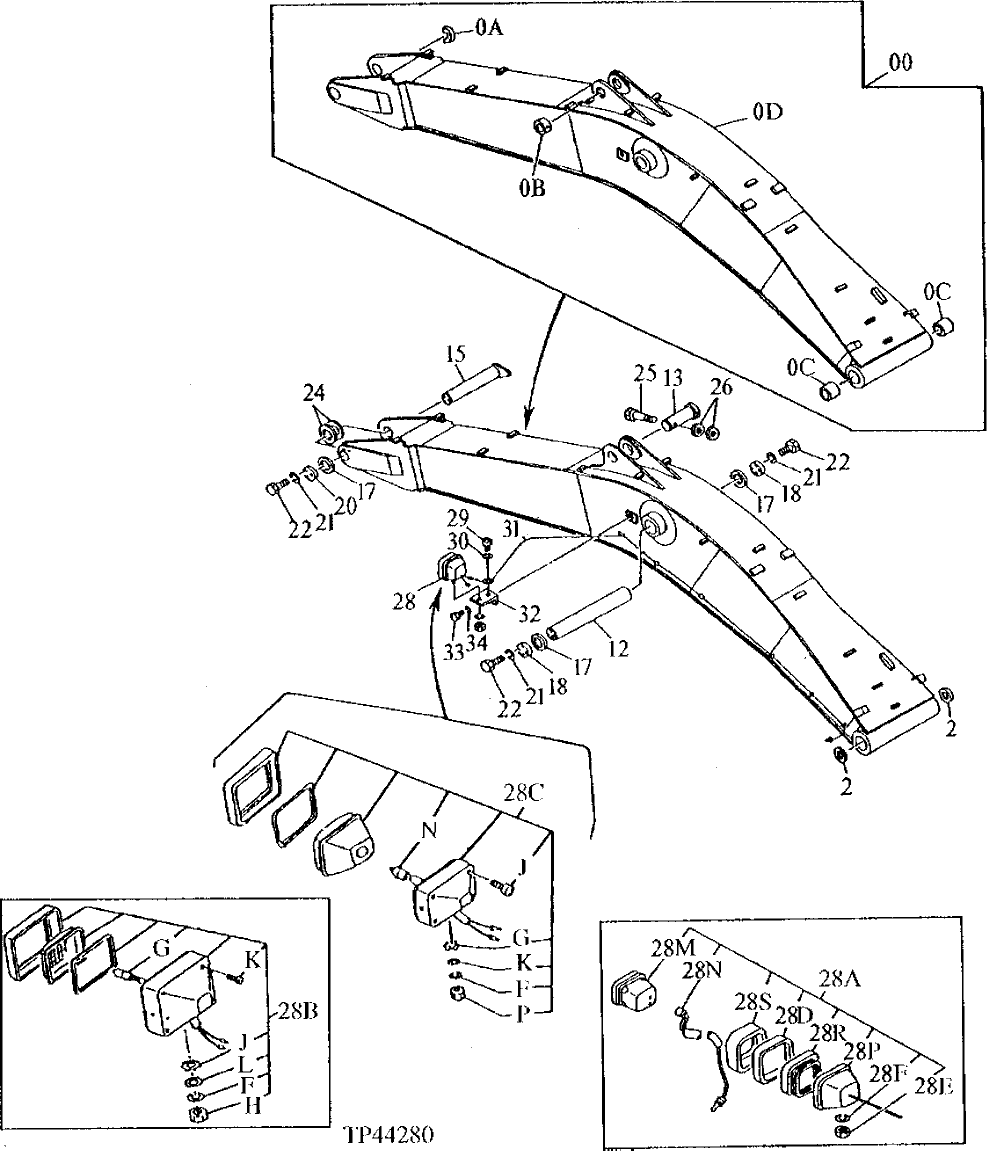

Запчасти John Deere 92DLC 2 - STANDARD BOOM 3340 - EXCAVATOR 33

0

AT132045

EXCAVATOR BOOM

(CONVENIENCE ASSEMBLY)

1шт.

0A

4206990

STOP

(SUB FOR AT131806)

1шт.

0B

4662435

STOP

(SUB FOR AT131769 OR 4205110)

1шт.

0C

3055205

BUSHING

(SUB FOR AT131643) (USE IF AVAILABLE)

2шт.

3055205

BUSHING

(SUB FOR AT131643) (SUB FOR AT201685)

2шт.

0D

EXCAVATOR BOOM

(SUB AT132045)

1шт.

2

AT131684

SEAL

2шт.

12

AT131630

PIN

1шт.

13

AT128428

PIN FASTENER

(SUB FOR AT131631)

1шт.

15

AT132098

PIN

1шт.

17

4040931

WASHER

(SUB FOR AT131672)

3шт.

18

4117700

SPACER

(SUB FOR AT131693)

2шт.

20

4206989

WASHER

(SUB FOR AT131805)

1шт.

21

12M7070

LOCK WASHER

20 MM

11шт.

22

19M7597

CAP SCREW

M20 X 50

11шт.

24

4232239R

SHIM

1.2MM, (SUB FOR AT131939 OR 4232239)

ARшт.

25

19M8100

CAP SCREW

M20 X 180, (SUB FOR TH103500)

1шт.

26

14M7277

NUT

M20

2шт.

28A

LAMP

(SUB AT165110) ( TH102149 NO LONGER AVAILABLE)

1шт.

28B

LAMP

(SUB AT165110) ( AT159146 NO LONGER AVAILABLE)

1шт.

28C

AT165110

LAMP

(SUB FOR AT176424, TH102149 OR AT159146)

1шт.

28D

HOLDER

( TH102153 NO LONGER AVAILABLE)

1шт.

28E

14M7502

NUT

M14, (SUB FOR 14M7150)

1шт.

28F

12H317

LOCK WASHER

9/16"

1шт.

28G

AT135758

BULB

(SUB FOR AT159149) (USE IF AVAILABLE)

1шт.

AT135758

BULB

(SUB FOR AT159149 OR AT154990)

1шт.

28H

14M7345

NUT

M14, (SUB FOR J952014) (SUB FOR TH103791)

1шт.

28J

4307026

WASHER

(SUB FOR T144361)

1шт.

28K

37H19

SCREW

(SUB FOR T144362 OR 4307027)

1шт.

28L

24M7085

WASHER

15 X 28 X 2.500 MM

1шт.

28M

4163596

LAMP

(SUB FOR TH102150)

1шт.

28N

WIRING HARNESS

( AT128418 NO LONGER AVAILABLE)

1шт.

28P

HOUSING

( AT128419 NO LONGER AVAILABLE)

1шт.

28R

BAND

( TH102151 NO LONGER AVAILABLE)

1шт.

28S

HOLDER

( TH102152 NO LONGER AVAILABLE)

1шт.

29

21M7288

SCREW

M6 X 10

1шт.

30

12M7006

LOCK WASHER

6 MM

1шт.

31

4235107

WIRE

(SUB FOR AT132528)

1шт.

32

4224631

ANGLE

(SUB FOR TH111685)

1шт.

33

J901425

CAP SCREW

(SUB FOR TH104071)

1шт.

34

12H317

LOCK WASHER

9/16"

1шт.
