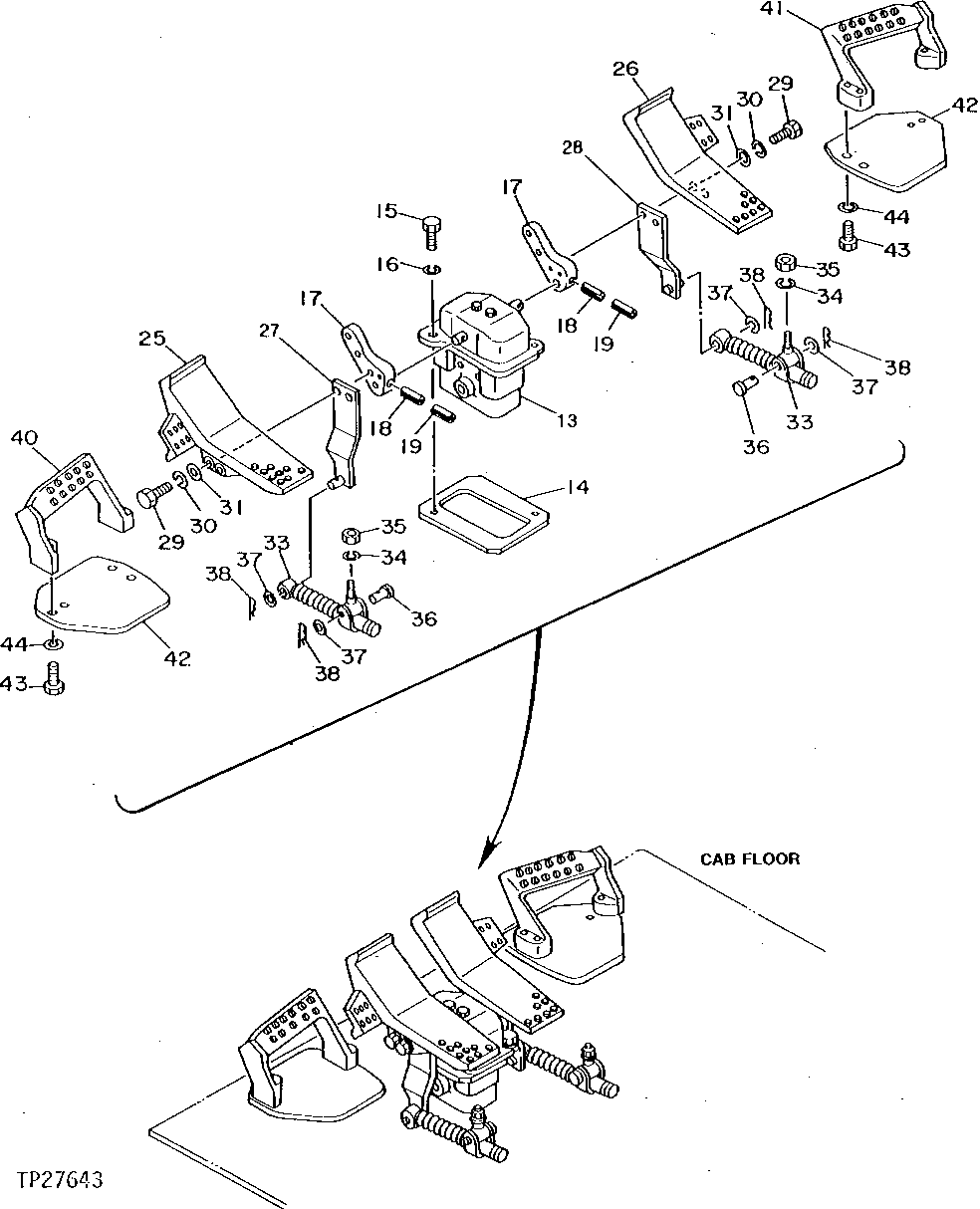

Запчасти John Deere 92DLC 4 - CONTROL PEDALS 3315 - EXCAVATOR 33

13

9073404

HYD ACTUATED CONTROL VALVE

(SUB FOR AT128307)

1шт.

14

4191969

PLATE

(SUB FOR TH108382)

1шт.

15

19M7358

CAP SCREW

M10 X 40

2шт.

16

12M7066

LOCK WASHER

10 MM

2шт.

17

4204996

BRACKET

(SUB FOR TH108374)

2шт.

18

34M7062

SPRING PIN

5 X 32 MM

2шт.

19

34M7124

SPRING PIN

8 X 30 MM, (SUB FOR 34M7065)

2шт.

25

PEDAL

( TH108375 NOT AVAILABLE FOR SERVICE) (SUB AT128309, ALONG WITH (2) 19M7358, (2) 12M7066 AND (2) 24M7028)

1шт.

1024442

PEDAL

(SUB FOR AT128309)

1шт.

26

PEDAL

( TH108376 NOT AVAILABLE FOR SERVICE) (SUB AT128310, ALONG WITH (2) 19M7358, (2) 12M7066 AND (2) 24M7028)

1шт.

1024440

PEDAL

(SUB FOR AT128310)

1шт.

27

9728065

BRACKET

(SUB FOR TH108386)

1шт.

28

9728053

BRACKET

(SUB FOR TH108387)

1шт.

29

19M7662

CAP SCREW

M10 X 30, (USE WITH TH108375 ORIGINAL PEDAL)

4шт.

19M7358

CAP SCREW

M10 X 40, (USE WITH AT128309 OR AT128310 REPLACEMENT PEDALS)

4шт.

30

12M7066

LOCK WASHER

10 MM

4шт.

31

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

33

4204959

TORSIONAL DAMPER

(SUB FOR TH108384)

2шт.

34

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

35

14M7273

NUT

M8

2шт.

36

4044928

PIN

(SUB FOR TH108385)

2шт.

37

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

38

H132922

COTTER PIN

4шт.

40

2024629

FOOTREST

(SUB FOR TH108380)

1шт.

41

2024630

FOOTREST

(SUB FOR TH108379)

1шт.

42

4191971

COVER

(SUB FOR TH108381)

2шт.

43

19M7662

CAP SCREW

M10 X 30

6шт.

44

12M7066

LOCK WASHER

10 MM

6шт.
