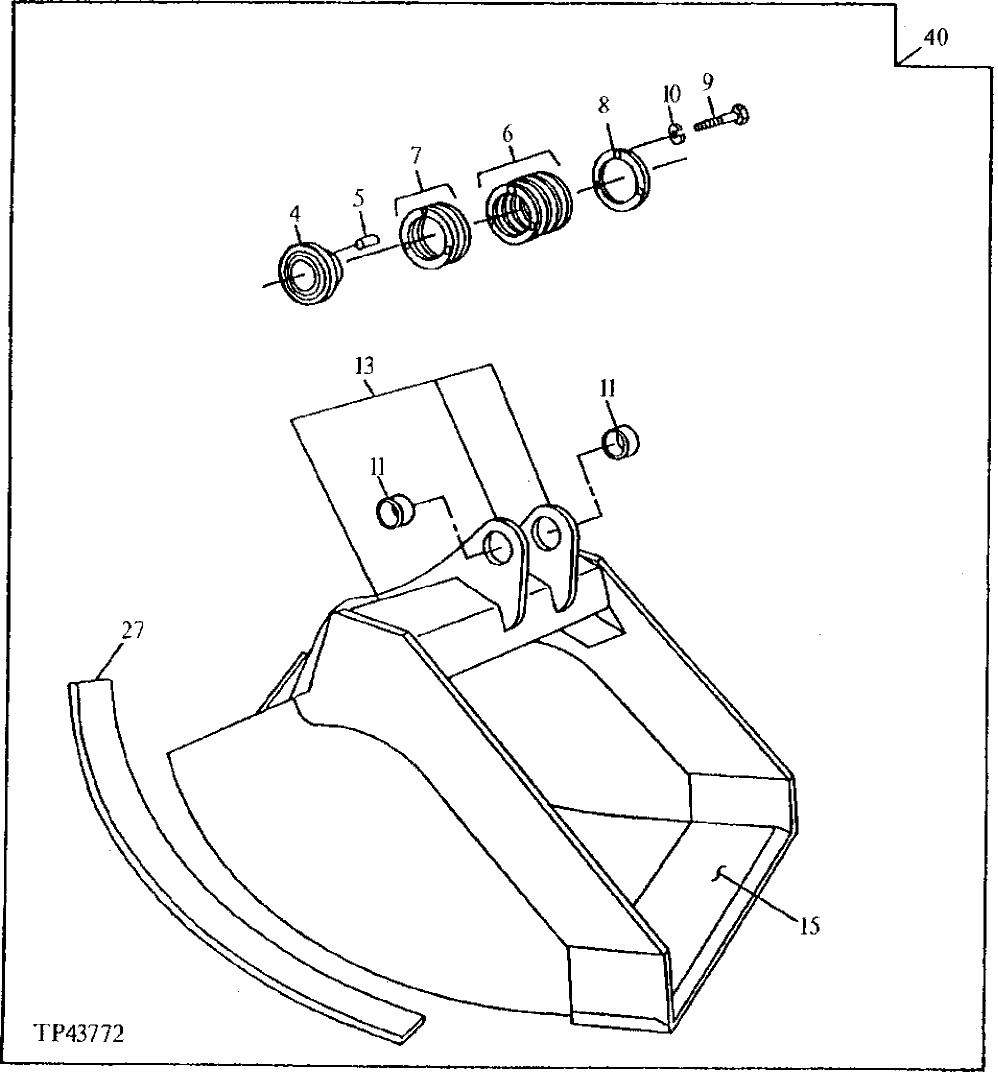

Запчасти John Deere 92DLC 22 - DITCH CLEANING BUCKET 3302 - EXCAVATOR 33

4

3038818

BOSS

(SUB FOR AT131625)

1шт.

5

4179110

PIN

(SUB FOR TH103520)

2шт.

6

AT131816

WASHER

(1.0 MM)

7шт.

7

4207194

SHIM

(SUB FOR AT131815) (0.5 MM)

2шт.

8

AT131814

PLATE

1шт.

9

19H2706

CAP SCREW

5/8" X 2"

4шт.

10

12H294

LOCK WASHER

5/8"

4шт.

11

AT128461

BUSHING

2шт.

13

C610778

PIVOT

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

CUTTING EDGE

(CUT TO LENGTH FROM AT131089 BULK MATERIAL)

1шт.

27

300292

BAR

(F) (WEAR STRIP)

4шт.

40

EXCAVATOR BUCKET

( AT160753 NLA) (84 INCH - 2.40 CUBIC YARD)

1шт.
