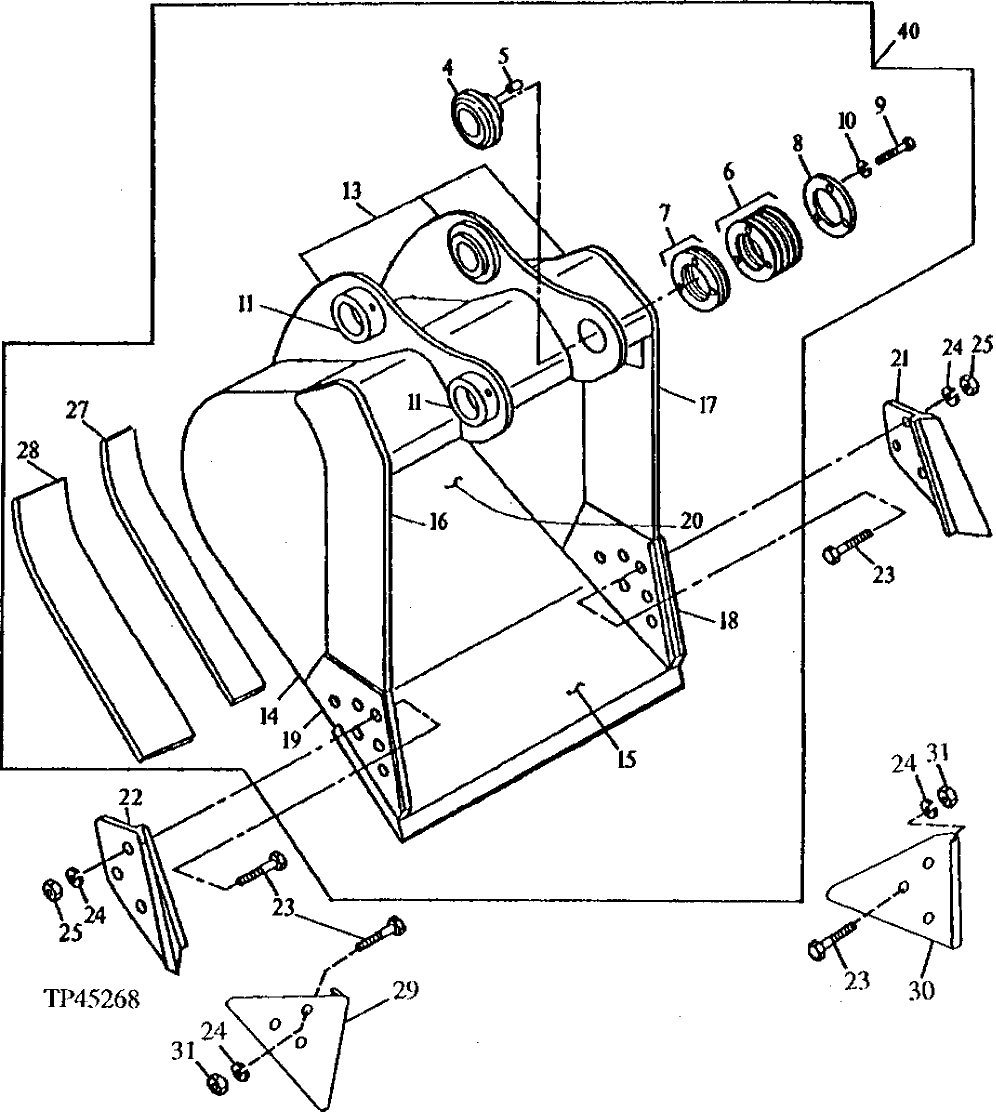

Запчасти John Deere 92DLC 10 - HEAVY DUTY HIGH CAPCITY BUCKET (FOR USE WITH 161" ARM ONLY) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 - EXCAVATOR 33

4

4143522

BUSHING

(SUB FOR TH103234)

1шт.

5

4179110

PIN

(SUB FOR TH103520)

1шт.

6

4143524

WASHER

(SUB FOR TH103235) (1 MM)

6шт.

7

4143525

SHIM

(SUB FOR TH103236) (.5 MM)

2шт.

8

TH103237

PLATE

1шт.

9

19H2706

CAP SCREW

5/8" X 2"

3шт.

10

12H294

LOCK WASHER

5/8"

3шт.

11

TH103198

BUSHING

2шт.

13

C606320

PIVOT

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300324

PLATE

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT131097

CUTTING EDGE

(CUT TO LENGTH) (72 INCHES)

1шт.

T154189

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH) (42 INCHES)

1шт.

T154188

DURA-MAX TM CUTTING EDGE

(CUT TO LENGTH) (36 INCHES)

1шт.

16

300327

VERTICAL CUTTER

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300328

VERTICAL CUTTER

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

300326

VERTICAL CUTTER

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

300325

VERTICAL CUTTER

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

600196

MOLDBOARD

(F) (60 INCH)

1шт.

21

CUTTING EDGE

(K) (SUB AT131085)

1шт.

22

CUTTING EDGE

(K) (SUB AT131085)

1шт.

23

09H1771

BOLT

(K) 7/8" X 3", (K2)

6шт.

24

12H245

LOCK WASHER

(K) 7/8", (K2)

6шт.

25

14H1077

NUT

(K) 7/8"

6шт.

27

300645

BAR

(F) (INNER WEAR)

2шт.

28

307451

BAR

(F) (OUTER WEAR)

2шт.

29

SHROUD

(WEAR SHROUD) (SUB AT167876) (K2)

1шт.

30

SHROUD

(WEAR SHROUD) (SUB AT167876) (K2)

1шт.

31

14H1044

NUT

22.225 MM (7/8") (WEAR SHROUD) (K2)

6шт.

40

EXCAVATOR BUCKET

(SUB AT163660) (SUB FOR AT131236 OR AT131237) (60 INCH - 3 CUBIC YARD) (USE WITH 16 FOOT 1 INCH ARM) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) ( AT163672 NO LONGER AVAILABLE)

1шт.
