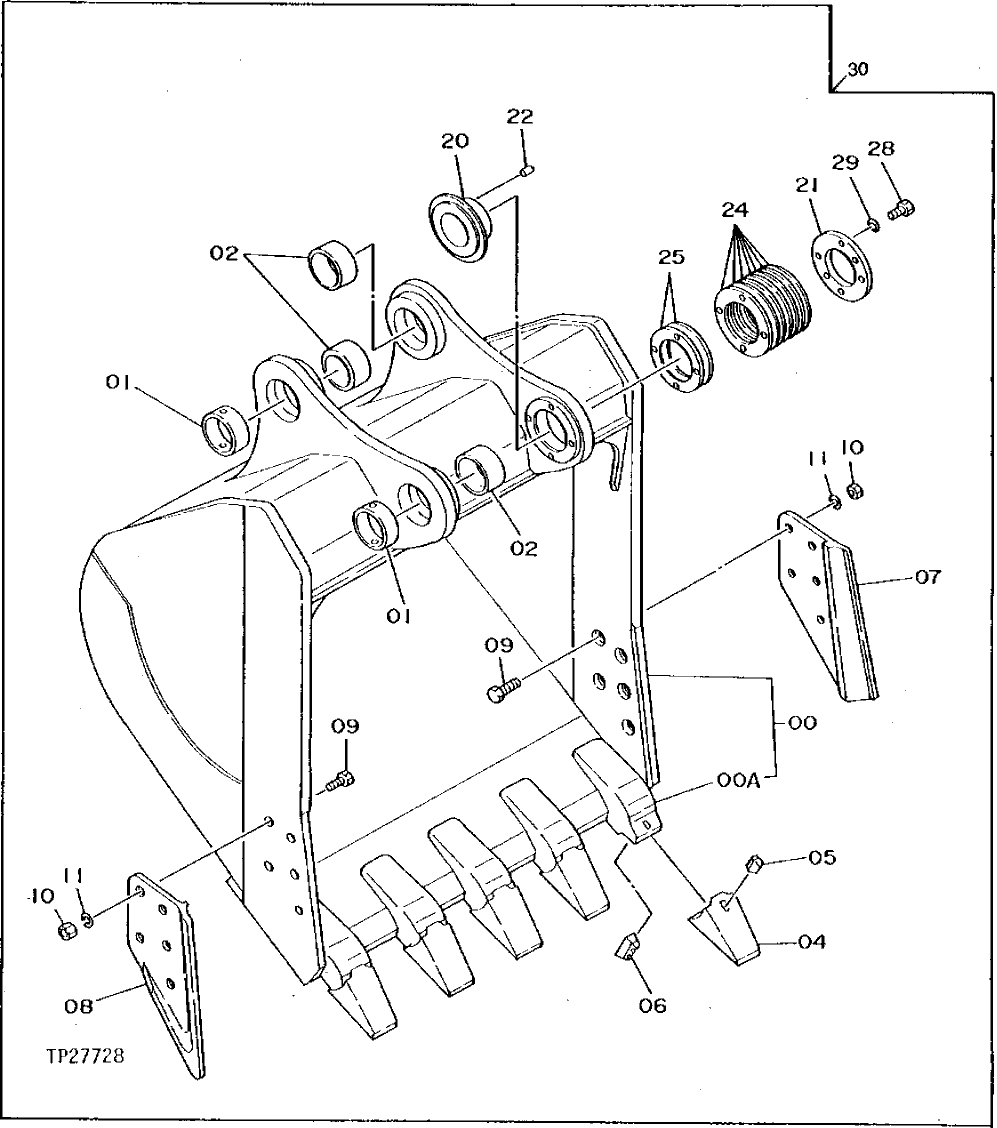

Запчасти John Deere 92DLC 2 - BUCKET 3302 - EXCAVATOR 33

0

EXCAVATOR BUCKET

( AT132572 - NO LONGER AVAILABLE) (1.8 CU. METER) (NOT FOR USE WITH 4.9M (16' 1") ARM)

1шт.

EXCAVATOR BUCKET

(2.0 CU. METER) (NOT FOR USE WITH 4.9M (16' 1") ARM) ( AT132571 NO LONGER AVAILABLE)

1шт.

0A

4613845

BUCKET TOOTH ADAPTER

(SUB FOR AT131709 OR 4153602)

5шт.

1

AT128461

BUSHING

(SUB FOR AT131767)

2шт.

2

4205109

BUSHING

(SUB FOR AT131768)

3шт.

4

T45S

TOOTH

(SUB FOR AT131710 OR T47166)

5шт.

5

T45PN

PIN FASTENER

(SUB FOR AT132132 OR T47165)

5шт.

6

T45LK

LOCK

(SUB FOR AT132133 OR T47164)

5шт.

7

1010517

CUTTING EDGE

(SUB FOR AT131563)

1шт.

8

1010518

CUTTING EDGE

(SUB FOR AT131564)

1шт.

9

19M8573

CAP SCREW

M27 X 70

10шт.

10

14M7476

NUT

M27

10шт.

11

12H318

LOCK WASHER

1-1/8"

10шт.

20

3038818

BOSS

(SUB FOR AT131625)

1шт.

21

AT131814

PLATE

1шт.

22

4179110

PIN

(SUB FOR TH103520)

2шт.

24

AT131816

WASHER

1MM

7шт.

25

4207194

SHIM

5MM, (SUB FOR AT131815)

2шт.

28

19M7409

CAP SCREW

M16 X 50, (1.8 CU. METER)

4шт.

19M7489

CAP SCREW

M16 X 45, (2.0 CU. METER)

4шт.

29

12H294

LOCK WASHER

5/8"

4шт.

30

EXCAVATOR BUCKET

( AT131517 NO LONGER AVAILABLE) (2 CU. METER) (NOT FUR USE WITH 4.9M (16' 1") ARM)

1шт.

EXCAVATOR BUCKET

( AT131516 NO LONGER AVAILABLE) (1.8 CU. METER) (NOT FUR USE WITH 4.9M (16' 1") ARM)

1шт.
