Запчасти John Deere 92DLC 18 - GEAR PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

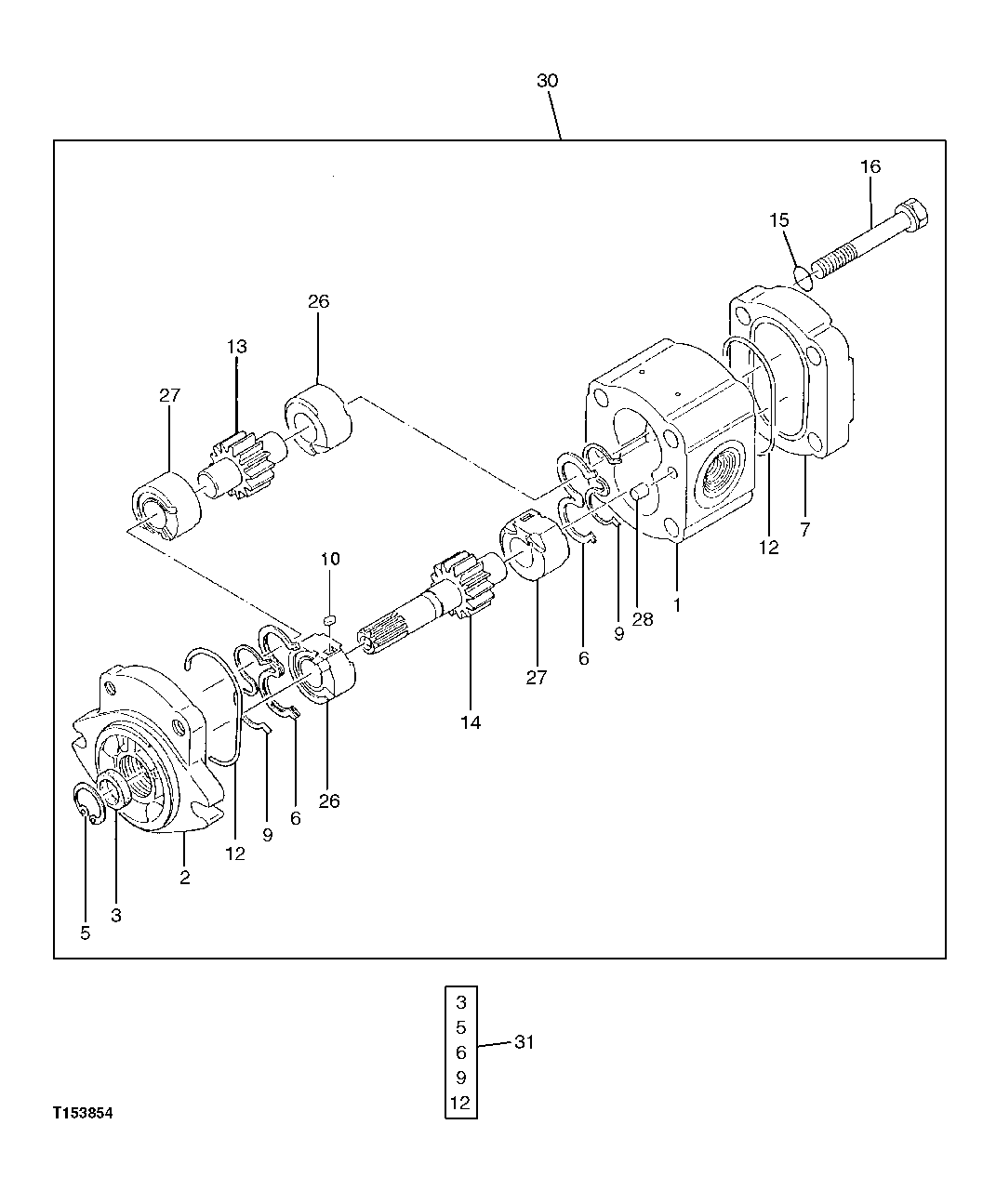

Схема запчастей John Deere 92DLC - 18 - GEAR PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

Артикул

Название

Примечание

Количество

1

HOUSING

(SUB TH109457)

1шт.

2

FLANGE

(TH109916 - NO LONGER AVAILABLE)

1шт.

3

0408202

SEAL

(A) (SUB FOR TH109917) (SUB FOR AT153880)

1шт.

5

40M1855

SNAP RING

(A)

1шт.

6

SEAL

(A) (SUB 0408207)

2шт.

7

COVER

(TH109919 - NO LONGER AVAILABLE) (SUB TH109457)

1шт.

9

BACK-UP RING

(A) (SUB 0408207)

2шт.

10

4206162

KEY

(SUB FOR TH109921)

2шт.

12

O-RING

(A) ( TH109922 NO LONGER AVAILABLE)

2шт.

13

GEAR

(SUB TH109457)

1шт.

14

GEAR

(SUB TH109457)

1шт.

15

0266736

WASHER

(SUB FOR TH109923) (SUB FOR TH105196)

4шт.

16

19M8093

CAP SCREW

M10 X 100, (SUB FOR TH109924)

4шт.

26

BUSHING

(SUB TH109457)

2шт.

27

BUSHING

(SUB TH109457)

2шт.

28

4206166

DOWEL PIN

(SUB FOR TH109925)

2шт.

30

9217993

PUMP

(SUB FOR TH109457 AND 4181700)

1шт.

31

0408207

SEAL KIT

(INCLUDES PARTS MARKED (A)) (SUB FOR AT153885)

1шт.

Выбрано товаров: 18
