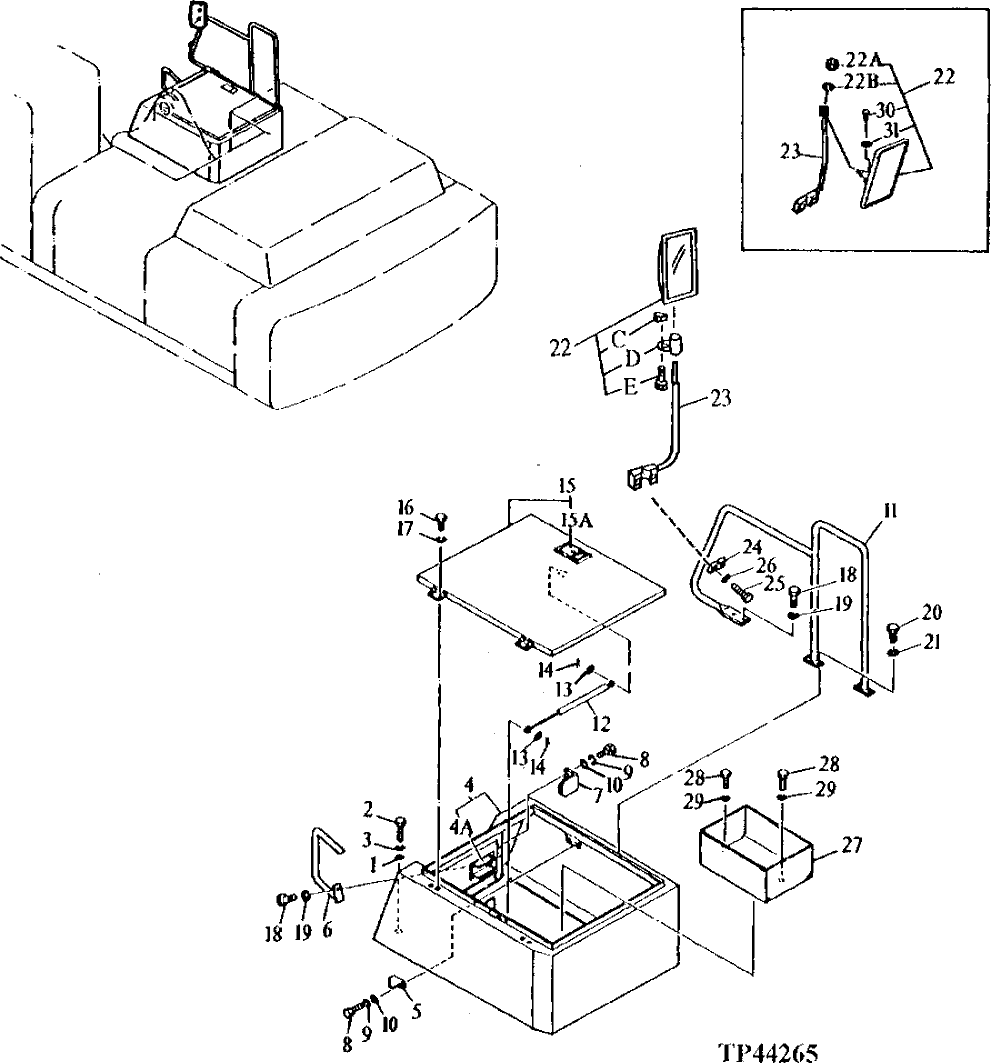

Запчасти John Deere 92DLC 12 - BATTERY COVER, TOOL BOX, MIRROR AND HAND RAIL 1910 - SHEET METAL AND STYLING 19
№
Артикул
Название
Примечание
Количество
1
24H1748
WASHER
6шт.
2
19M7872
CAP SCREW
M12 X 25
6шт.
3
12H301
LOCK WASHER
1/2"
6шт.
4
5002545
COVER
(SUB FOR AT132020)
1шт.
5
4224237
STOP
(SUB FOR AT131921)
1шт.
6
8044852
HANDRAIL
(SUB FOR AT132108)
1шт.
7
4224236
STOP
(SUB FOR AT131920)
1шт.
8
19M7872
CAP SCREW
M12 X 25
4шт.
9
12H301
LOCK WASHER
1/2"
4шт.
10
24H1748
WASHER
1/2" X 1-1/4" X 0.105"
4шт.
11
7020935
HANDRAIL
(SUB FOR AT132053)
1шт.
12
4188366
ABSORBER
(SUB FOR TH109684)
1шт.
13
24M7055
WASHER
8.400 X 16 X 1.600 MM
2шт.
14
H132922
COTTER PIN
2шт.
15
7019965
COVER
(SUB FOR AT132046)
1шт.
18
19M7872
CAP SCREW
M12 X 25
3шт.
19
12H301
LOCK WASHER
1/2"
3шт.
20
19M7872
CAP SCREW
M12 X 25
4шт.
21
12H301
LOCK WASHER
1/2"
4шт.
22
4318135
REAR VIEW MIRROR
(RIGHT SIDE) (SUB FOR AT103919, THIS APPLICATION) (SUB FOR AT121241)
1шт.
REAR VIEW MIRROR
( TH104119 NO LONGER AVAILABLE) (SUB AT185207 MIRROR AND AT187241 ARM)
1шт.
4420724
REAR VIEW MIRROR
(SUB FOR AT185207)
1шт.
22B
12M7056
LOCK WASHER
8 MM, (SUB FOR 12M7065)
1шт.
22D
CLAMP
(NOT AVAILABLE FOR SERVICE)
1шт.
23
ARM
( 8039961 NO LONGER AVAILABLE) (SUB 4420724, ALONG WITH 8077830)
1шт.
4420724
REAR VIEW MIRROR
(SUB AT187241) (SUB FOR AT163944)
1шт.
8077830
STOP
(SUB FOR AT187241)
1шт.
24
AT219494
CLAMP
(SUB FOR AT131743)
1шт.
25
19M8359
CAP SCREW
M8 X 45, (SUB FOR AT131536)
2шт.
26
12M7056
LOCK WASHER
8 MM, (SUB FOR 12M7065)
2шт.
27
8042432
TOOLBOX
(SUB FOR AT132092)
1шт.
28
19M7872
CAP SCREW
M12 X 25
2шт.
29
12H301
LOCK WASHER
1/2"
2шт.
30
21M7250
SCREW
M4 X 12
3шт.
31
12H315
LOCK WASHER
4.166 MM, (SUB FOR 12M7063)
3шт.
Выбрано товаров: 42
