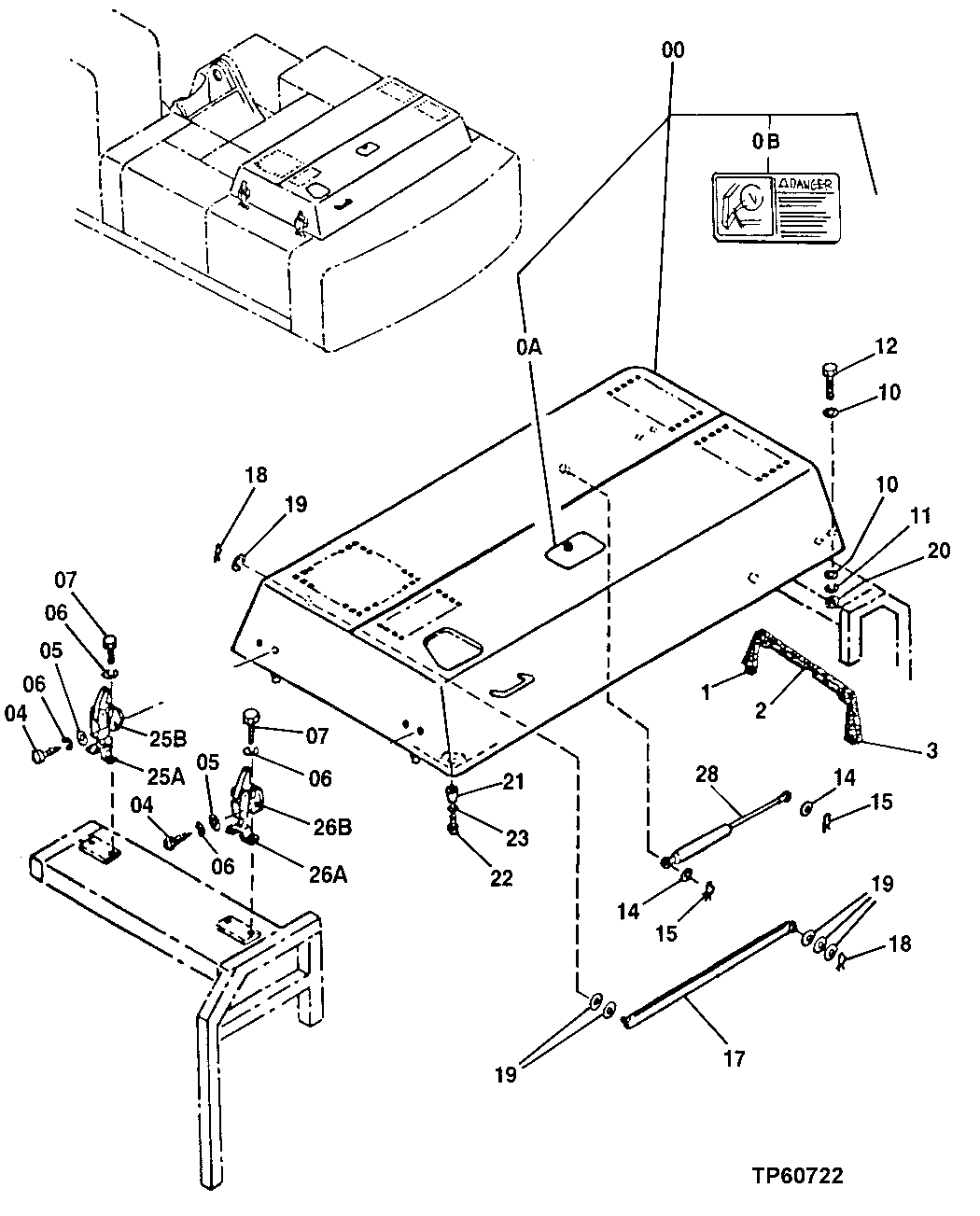

Запчасти John Deere 92DLC 10 - HOOD 1910 - SHEET METAL AND STYLING 19

0

7021015

COVER

(SUB FOR AT132055)

1шт.

0A

8045041

COVER

(SUB FOR AT159070)

1шт.

0B

2042309

LABEL

(SUB FOR T164032) (CAUTION)

1шт.

1

4346822

PAD

(SUB FOR T160190)

1шт.

2

4346821

PAD

(SUB FOR T160189)

1шт.

3

4346823

PAD

(SUB FOR T160191)

1шт.

4

21M7397

SCREW

M8 X 25

4шт.

5

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

6

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

8шт.

7

19M7932

CAP SCREW

M8 X 16

4шт.

10

24M7047

WASHER

13 X 24 X 2.500 MM

8шт.

11

12H301

LOCK WASHER

1/2"

4шт.

12

19M7403

CAP SCREW

M12 X 35

4шт.

14

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

15

H132922

COTTER PIN

4шт.

17

9729704

SUPPORT

(SUB FOR AT132136)

1шт.

18

M40461

SPRING LOCKING PIN

(SUB FOR TH100590)

2шт.

19

24M7053

WASHER

17 X 30 X 3 MM

5шт.

20

14M7275

NUT

M12

4шт.

21

4227780

BUMPER

(SUB FOR AT131934)

2шт.

22

21M7022

SCREW

M5 X 20

2шт.

23

12M7064

LOCK WASHER

5 MM

2шт.

25A

3074568

CATCH

(SUB FOR AT131654)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

25B

3021131

ANCHOR

(SUB FOR TH102247)

1шт.

26A

3074568

CATCH

(SUB FOR AT131654)

1шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

26B

3021131

ANCHOR

(SUB FOR TH102247)

1шт.

28

4326349

CYLINDER

(SUB FOR AT132552) (SUB FOR AT165267)

2шт.
