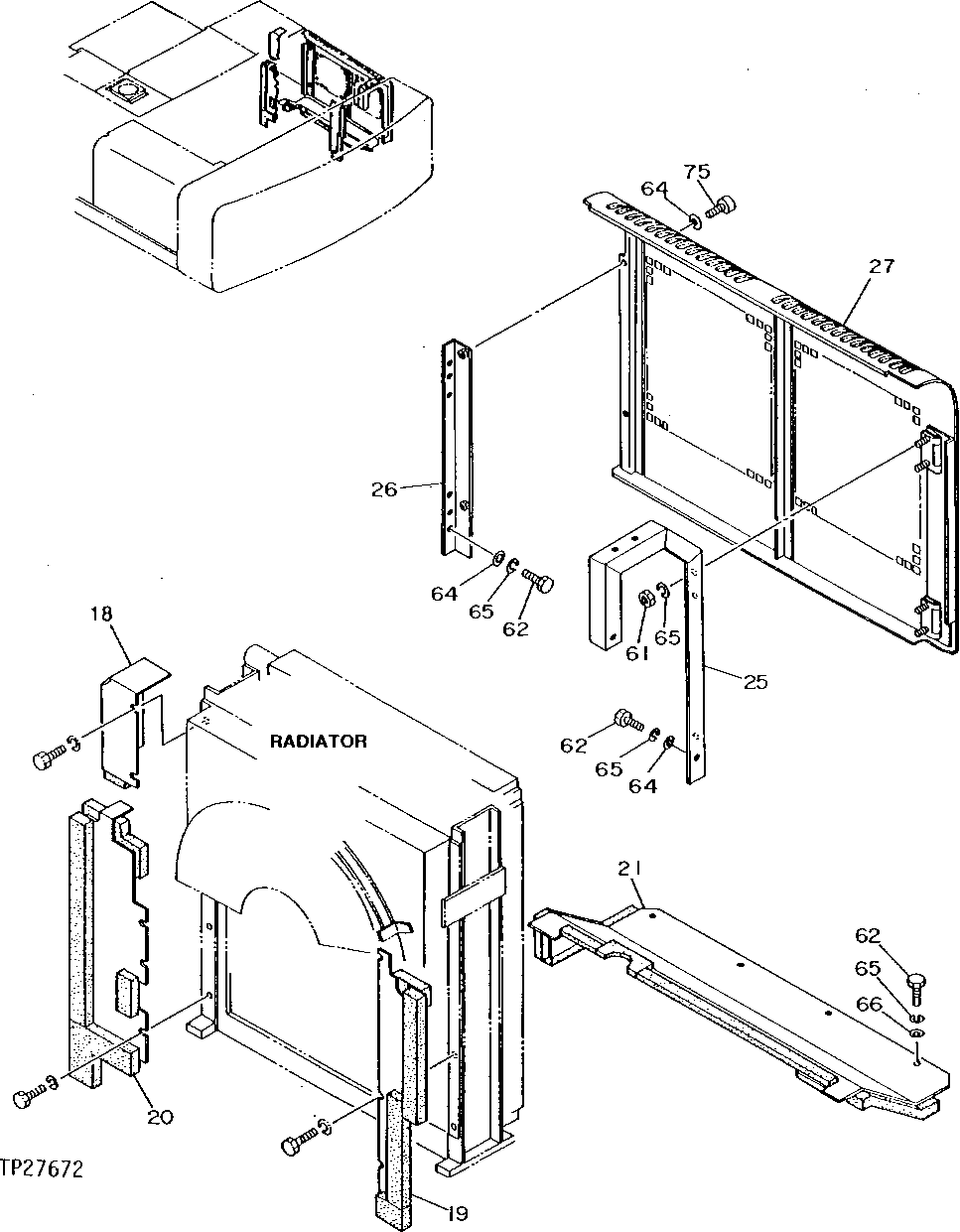

Запчасти John Deere 92DLC 8 - ENGINE COMPARTMENT SERVICE DOORS 1910 - SHEET METAL AND STYLING 19

18

8041178

COVER

(SUB FOR AT132088)

1шт.

19

7021028

COVER

(SUB FOR AT132057)

1шт.

20

7021027

COVER

(SUB FOR AT132056)

1шт.

21

7021030

COVER

(SUB FOR AT132058)

1шт.

25

8041086

SUPPORT

(SUB FOR AT132087)

1шт.

26

8042528

SUPPORT

(SUB FOR AT132093)

1шт.

27

6010070

DOOR

(SUB FOR AT132033)

1шт.

61

14M7275

NUT

M12

4шт.

62

19M7872

CAP SCREW

M12 X 25

8шт.

64

24M7047

WASHER

13 X 24 X 2.500 MM

6шт.

65

12H301

LOCK WASHER

1/2"

12шт.

66

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

4шт.

75

19M8443

SCREW

M12 X 20

2шт.
