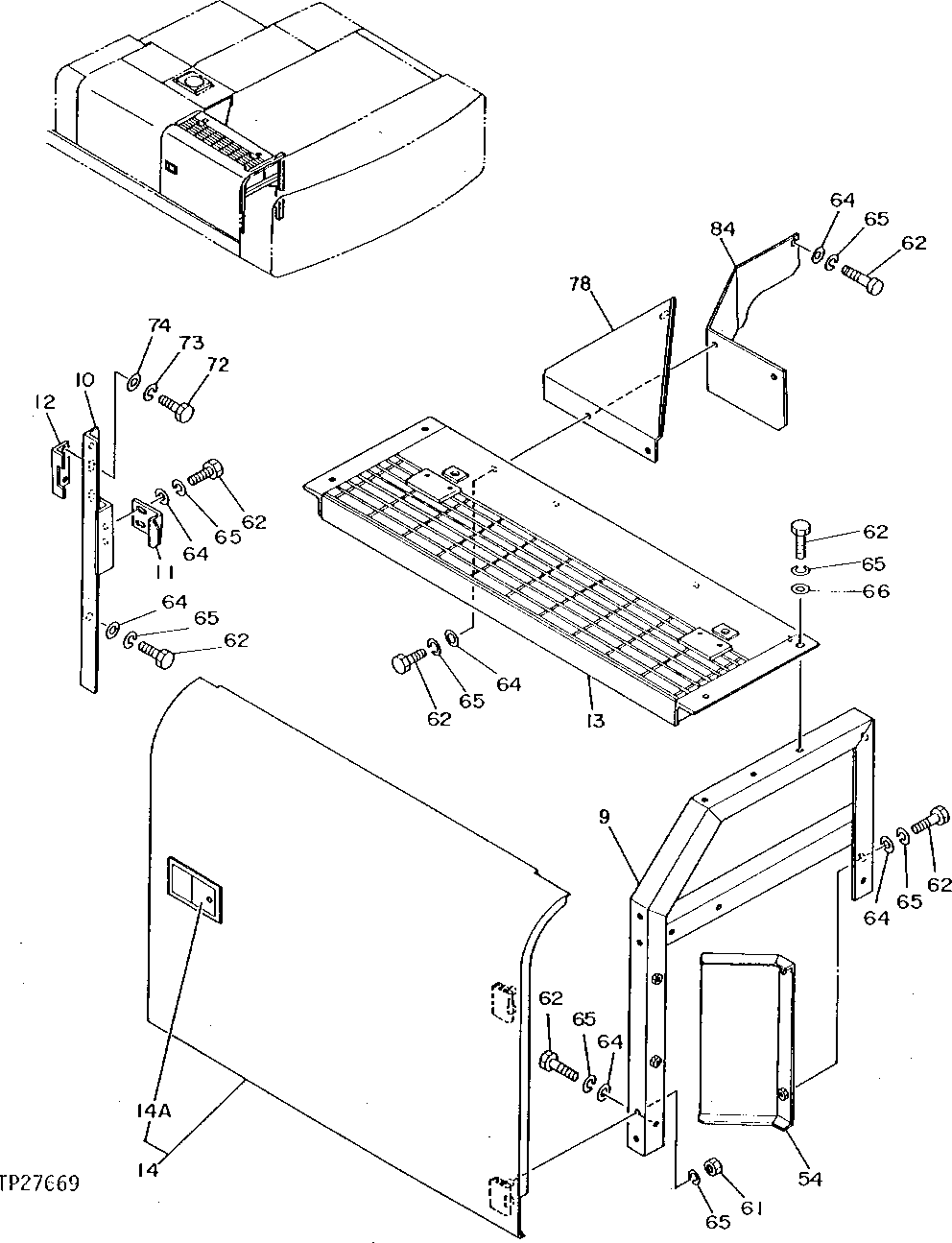

Запчасти John Deere 92DLC 2 - ENGINE COMPARTMENT SERVICE DOORS 1910 - SHEET METAL AND STYLING 19

9

8041388

SUPPORT

(SUB FOR AT132089)

1шт.

10

8042722

SUPPORT

(SUB FOR AT132095)

1шт.

11

4188492

STOP

(SUB FOR TH108762)

1шт.

12

3037786

BRACKET

(SUB FOR TH109681)

1шт.

13

7021482

STEP

(SUB FOR AT132061)

1шт.

14

6008683

DOOR

(SUB FOR AT132027)

1шт.

14A

4361763

LOCK

(SUB FOR TH110898 OR AT115741) (SUB FOR AT214010)

1шт.

54

8043662

COVER

(SUB FOR AT132105)

1шт.

61

14M7275

NUT

M12

4шт.

62

19M7872

CAP SCREW

M12 X 25

15шт.

64

24M7047

WASHER

13 X 24 X 2.500 MM

11шт.

65

12H301

LOCK WASHER

1/2"

19шт.

66

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

4шт.

72

19M7932

CAP SCREW

M8 X 16

2шт.

73

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

74

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

78

3050494

COVER

(SUB FOR AT128433)

1шт.

84

8047193

COVER

(SUB FOR AT128434)

1шт.
