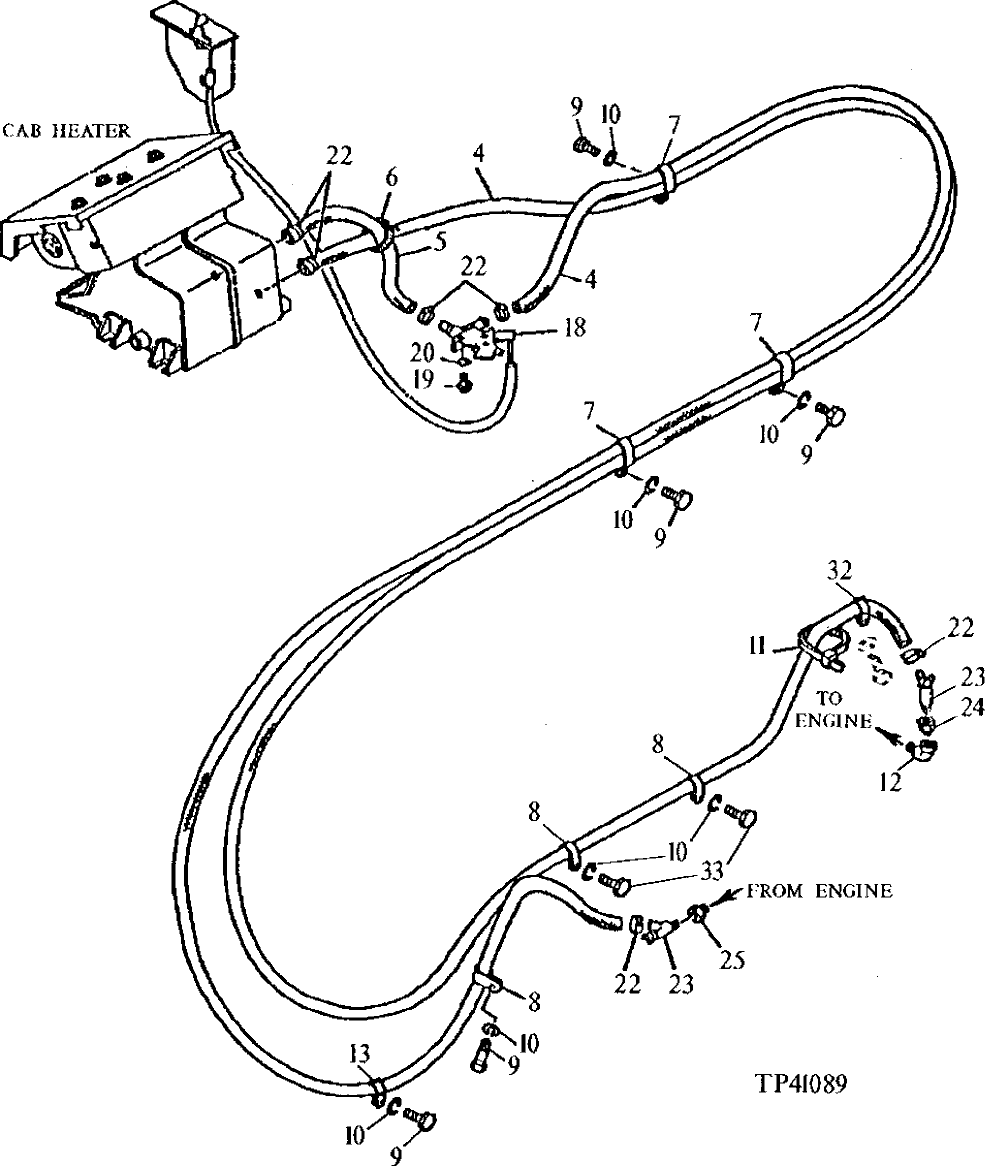

Запчасти John Deere 92DLC 4 - CAB HEATER PIPINGS 1830 - OPERATORS STATION 18

4

HOSE

(MAKE FROM TY22328) (SUB FOR T78162)

2шт.

5

HOSE

(MAKE FROM TY22328) (SUB FOR T78162)

1шт.

6

H77698

TIE BAND

5шт.

7

4190266

CLIP

(SUB FOR TH108793)

3шт.

8

T24432

CLAMP

(SUB FOR TH108595)

3шт.

9

19M8324

CAP SCREW

M10 X 16

ARшт.

10

12M7066

LOCK WASHER

10 MM

ARшт.

11

H77698

TIE BAND

(SUB FOR TH106422)

1шт.

12

15H602

ELBOW FITTING

(SUB FOR AT132595)

1шт.

13

T24432

CLAMP

1шт.

18

4195823

DRAIN VALVE

(SUB FOR TH108790)

1шт.

19

21M7252

SCREW

M4 X 16

2шт.

20

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

22

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

6шт.

23

VALVE

(SUB AT105319 AND T103301) ( TH106168 NO LONGER AVAILABLE)

2шт.

24

15H586

ADAPTER FITTING

3/8", (SUB FOR AT131530)

1шт.

25

15H619

PIPE BUSHING

3/8", (SUB FOR AT131531)

1шт.

32

T24432

CLAMP

1шт.

33

19M3142

CAP SCREW

M10 X 18

ARшт.
