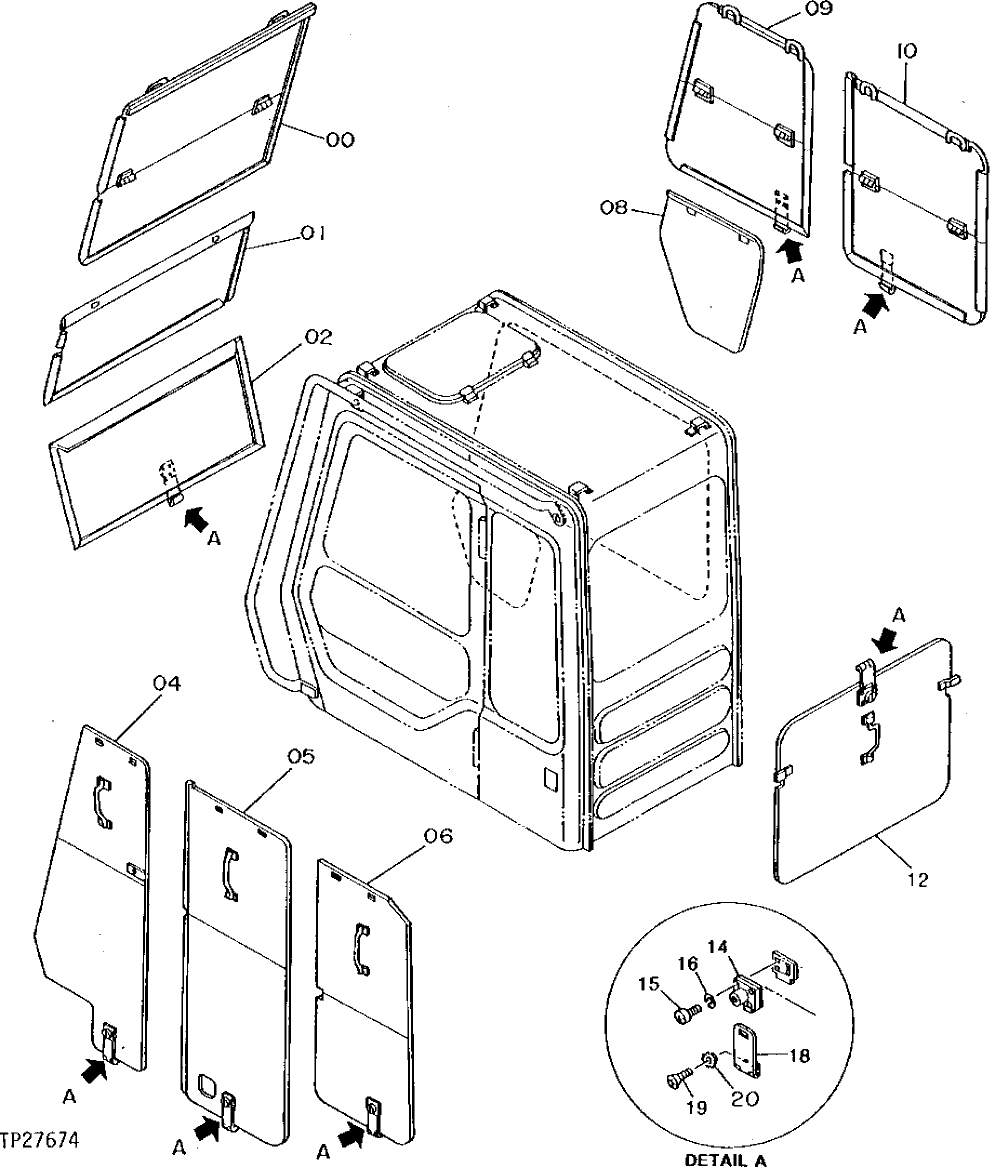

Запчасти John Deere 92DLC 24 - VANDAL COVERS 1810 - OPERATORS STATION 18

0

COVER

( TH108972 NO LONGER AVAILABLE)

1шт.

1

8039460

COVER

(SUB FOR TH108973)

1шт.

2

8043759

COVER

(SUB FOR AT132579)

1шт.

4

COVER

( TH108975 NO LONGER AVAILABLE)

1шт.

5

COVER

( TH108976 NO LONGER AVAILABLE)

1шт.

6

COVER

( TH108977 NO LONGER AVAILABLE)

1шт.

8

COVER

( TH108978 NO LONGER AVAILABLE)

1шт.

9

COVER

( TH111513 NO LONGER AVAILABLE)

1шт.

10

8040947

COVER

(SUB FOR TH111514)

1шт.

12

8043751

COVER

(SUB FOR AT132578)

1шт.

14

4361601

LOCK

(SUB FOR TH108982) (SUB FOR AT176636) (USES H800 KEY)

7шт.

AT194969

KEY

(SUB FOR AT147803) (H800) (NOT ILLUSTRATED)

1шт.

15

21M7022

SCREW

M5 X 20

28шт.

16

12M7064

LOCK WASHER

5 MM

28шт.

18

TH108983

HINGE

7шт.

19

21M7249

SCREW

M5 X 10

14шт.

20

T205218

WASHER

(SUB FOR TH111908, 4107762)

14шт.
