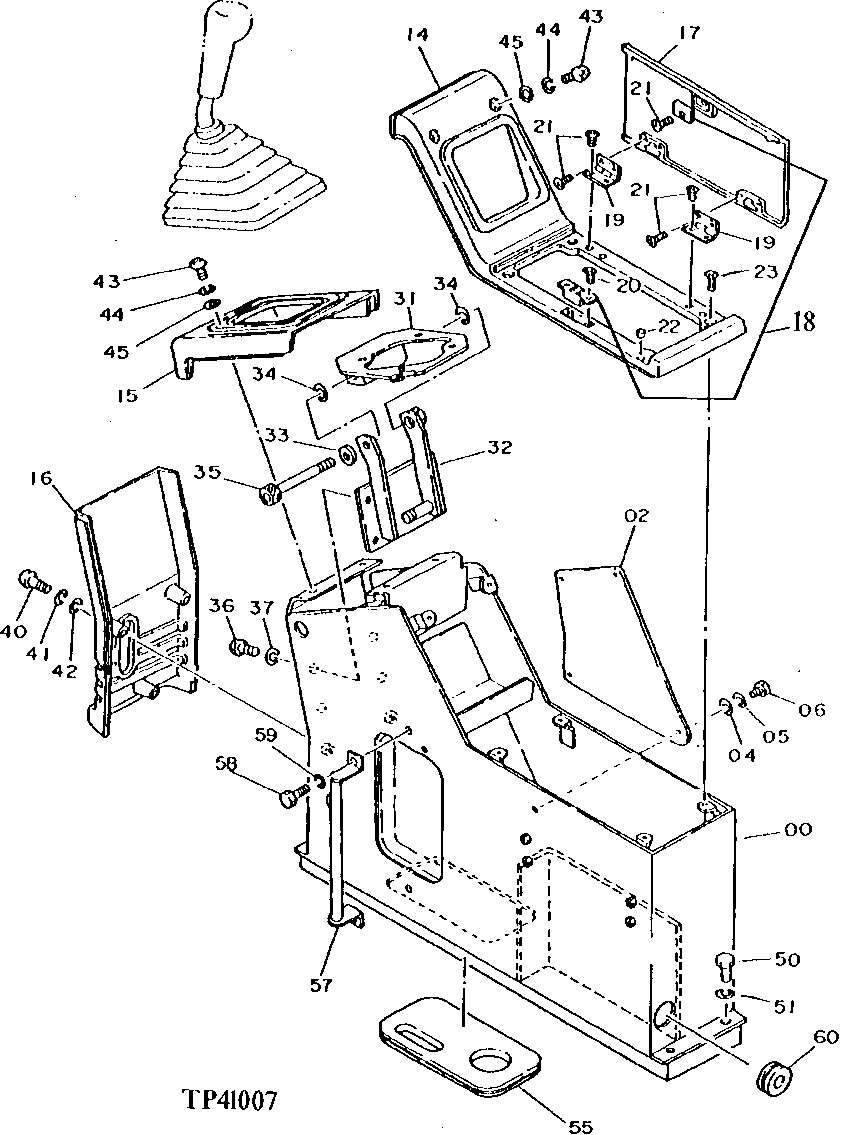

Запчасти John Deere 92DLC 18 - LEFT CONTROL BOX 1810 - OPERATORS STATION 18

0

7020906

STAND

(SUB FOR AT132052)

1шт.

2

4200807

COVER

(SUB FOR TH108500)

1шт.

4

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

5

12M7006

LOCK WASHER

6 MM

4шт.

6

J900614

BOLT

(SUB FOR TH104056)

4шт.

14

5002029

COVER

(SUB FOR TH108501)

1шт.

15

1010967

COVER

(SUB FOR TH108502)

1шт.

16

1010900

COVER

(SUB FOR TH108503)

1шт.

17

7017989

COVER

(SUB FOR TH108504)

1шт.

18

4199403

MAGNET

(SUB FOR TH108505)

1шт.

19

4199401

HINGE

(SUB FOR TH108506)

2шт.

20

21M7398

SCREW

M3 X 10

2шт.

21

21M7404

SCREW

M2.500 X 6

9шт.

22

4208354

BUMPER

(SUB FOR TH108508)

2шт.

23

21M7254

SCREW

M6 X 16

4шт.

31

BRACKET

( TH108492 NO LONGER AVAILABLE)

1шт.

32

BRACKET

( TH108510 NO LONGER AVAILABLE)

1шт.

33

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

34

4191947

SHIM

(SUB FOR TH108494)

2шт.

35

19M8442

SCREW

M12 X 100

1шт.

36

19M7938

CAP SCREW

M10 X 20

4шт.

37

12M7066

LOCK WASHER

10 MM

4шт.

40

21M7405

SCREW

M6 X 40

3шт.

41

12M7006

LOCK WASHER

6 MM

3шт.

42

24M7054

WASHER

6.400 X 12 X 1.600 MM

3шт.

43

21M7206

SCREW

M6 X 20

6шт.

44

12M7006

LOCK WASHER

6 MM

6шт.

45

24M7054

WASHER

6.400 X 12 X 1.600 MM

6шт.

50

19M8499

CAP SCREW

M10 X 60

4шт.

51

12M7066

LOCK WASHER

10 MM

4шт.

55

4200658

GROMMET

(SUB FOR TH108496)

1шт.

57

9728240

SUPPORT

(SUB FOR TH108511)

1шт.

58

19M7938

CAP SCREW

M10 X 20

2шт.

59

12M7066

LOCK WASHER

10 MM

2шт.

60

GROMMET

(SUB FOR AT126267) ( 4184582 NLA)

1шт.
