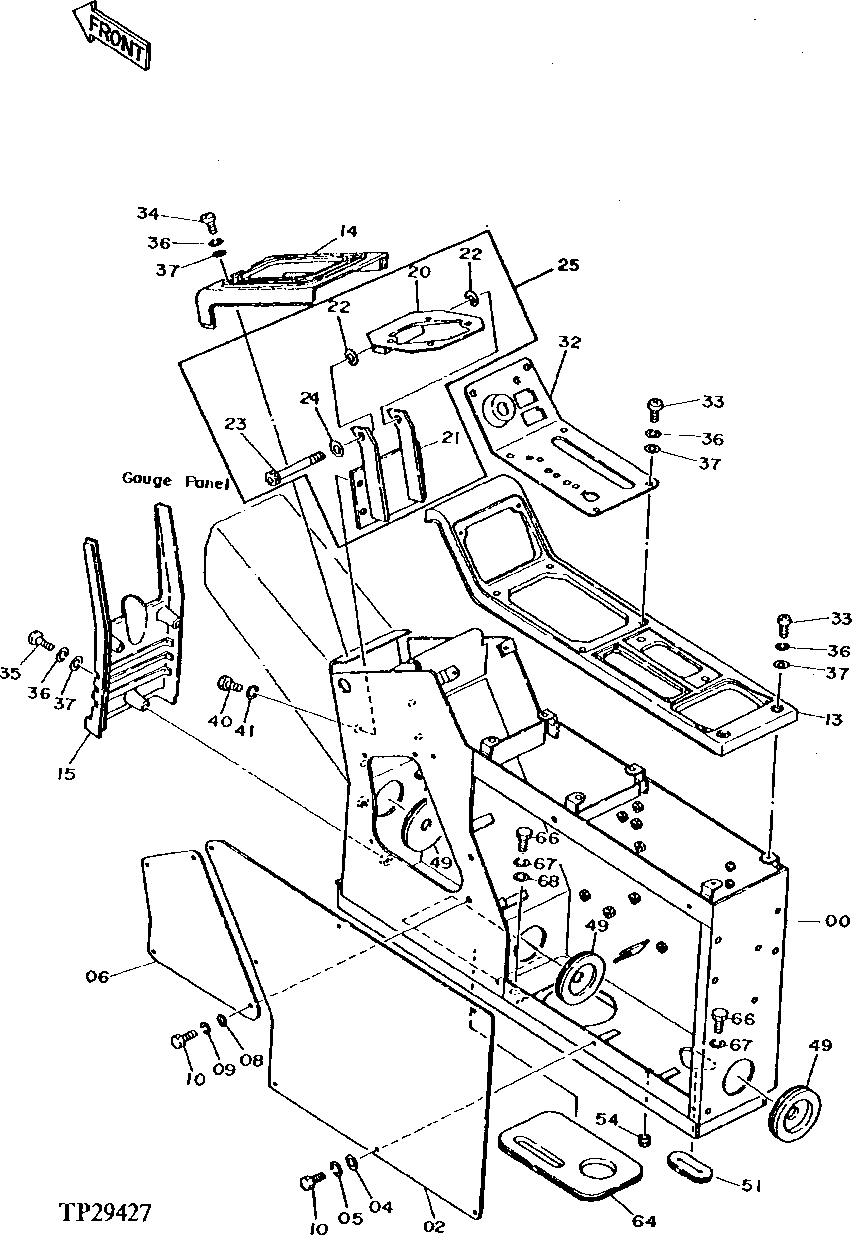

Запчасти John Deere 92DLC 16 - RIGHT CONTROL BOX 1810 - OPERATORS STATION 18

0

8044587

STAND

(SUB FOR AT132106)

1шт.

8052227

STAND

(SUB FOR AT131382)

1шт.

2

3037903

COVER

(SUB FOR TH108485)

1шт.

4

24M7250

WASHER

6.400 X 17 X 3 MM

7шт.

5

12M7006

LOCK WASHER

6 MM

7шт.

6

4191972

COVER

(SUB FOR TH108486)

1шт.

8

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

9

12M7006

LOCK WASHER

6 MM

4шт.

10

J900614

BOLT

(SUB FOR TH104056)

11шт.

13

5002033

PANEL

(SUB FOR TH108487)

1шт.

14

1010966

COVER

(SUB FOR TH108488)

1шт.

15

1010899

COVER

(SUB FOR TH108489)

1шт.

20

8038104

BRACKET

(SUB FOR TH108509)

1шт.

21

8038102

BRACKET

(SUB FOR TH108493)

1шт.

22

4191947

SHIM

(SUB FOR TH108494)

2шт.

23

19M8442

SCREW

M12 X 100

1шт.

24

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

25

BRACKET

( 9076592 NO LONGER AVAILABLE) (ORDER COMPONENTS)

1шт.

32

7044989

PANEL

(SUB FOR 3055215)

1шт.

33

21M7246

SCREW

M6 X 16

8шт.

34

21M7206

SCREW

M6 X 20

4шт.

35

21M7405

SCREW

M6 X 40

3шт.

36

12M7006

LOCK WASHER

6 MM

15шт.

37

24M7054

WASHER

6.400 X 12 X 1.600 MM

15шт.

40

19M7938

CAP SCREW

M10 X 20

4шт.

41

12M7066

LOCK WASHER

10 MM

4шт.

49

4161992

GROMMET

(SUB FOR TH108491)

3шт.

51

4205083

GROMMET

(SUB FOR TH108495)

1шт.

54

94-2817

GROMMET

(SUB FOR TH102171)

1шт.

64

4200658

GROMMET

(SUB FOR TH108496)

1шт.

66

19M8499

CAP SCREW

M10 X 60

6шт.

67

12M7066

LOCK WASHER

10 MM

6шт.

68

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.
