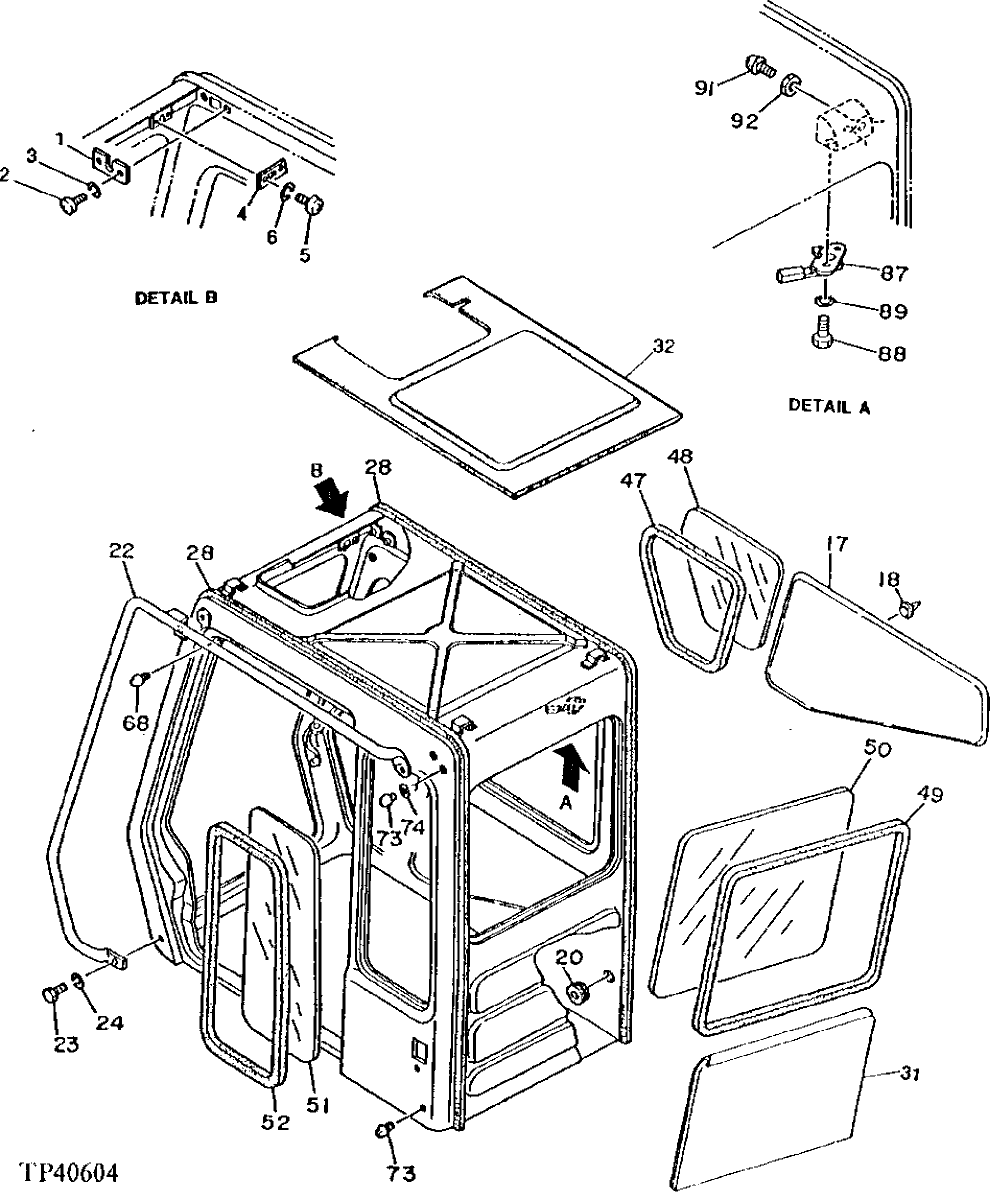

Запчасти John Deere 92DLC 8 - CAB COMPONENTS 1810 - OPERATORS STATION 18

1

4204599

SHIM

(SUB FOR TH108682)

1шт.

2

21M7396

SCREW

M4 X 10

2шт.

3

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

4

4204600

BRACKET

(SUB FOR TH108683)

1шт.

5

21M7394

SCREW

M3 X 10

2шт.

6

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

2шт.

17

4204606

PAD

(SUB FOR TH108689)

1шт.

18

4204607

CLIP

(SUB FOR TH108690)

10шт.

20

4473966

BUSHING

(SUB FOR TH108691 OR 4204608)

1шт.

22

4271609

HANDLE

(SUB FOR AT131996)

1шт.

23

19M7402

CAP SCREW

M10 X 25

3шт.

24

12M7066

LOCK WASHER

10 MM

3шт.

28

4204611

ISOLATOR

(SUB FOR TH108694)

2шт.

31

4251706

SEALING TRIM

(SUB FOR AT128331)

1шт.

32

4251703

SEALING TRIM

(SUB FOR AT128328)

1шт.

47

4204571

ISOLATOR

(SUB FOR TH108653)

1шт.

48

TH108654

WINDOWPANE

1шт.

49

4204573

ISOLATOR

(SUB FOR TH108655)

1шт.

50

TH108656

WINDOWPANE

1шт.

51

TH108657

WINDOWPANE

1шт.

52

4204576

ISOLATOR

(SUB FOR TH108658)

1шт.

68

4172321

BUMPER

(SUB FOR TH108666)

1шт.

73

4204586

BUMPER

(SUB FOR TH108668)

2шт.

74

4204587

WASHER

(SUB FOR TH108669)

1шт.

87

4204594

LOCK

(SUB FOR TH108677)

1шт.

88

19M7932

CAP SCREW

M8 X 16

2шт.

89

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

91

4204586

BUMPER

(SUB FOR TH108668)

1шт.

92

14M7152

NUT

M10

1шт.

95

CAB

(4196647J NLA) (SUB FOR AT114976) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.
