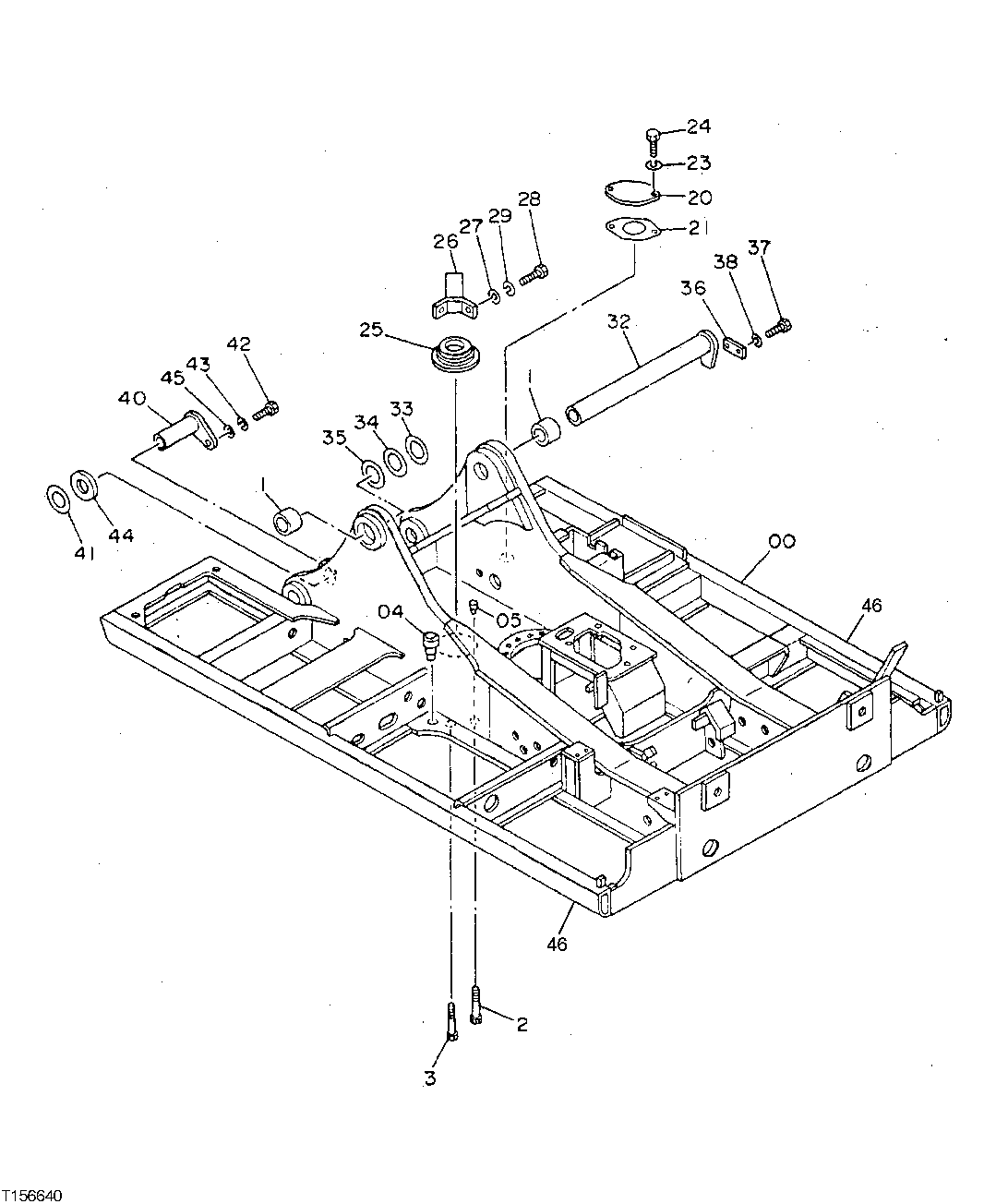

Запчасти John Deere 92DLC 2 - MAIN FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

0

AT132017

MAIN FRAME

(CONVENIENCE ASSEMBLY)

1шт.

1

4216361

BUSHING

(SUB FOR AT131871)

2шт.

2

4223579

BOLT

(SUB FOR AT131916)

32шт.

3

J932716

BOLT

(SUB FOR AT131915 OR 4223578, ALONG WITH 4626326)

4шт.

4626326

SPACER

4шт.

4

4226681

PIN FASTENER

(SUB FOR AT131928)

2шт.

5

425175

PLUG

(SUB FOR AT132013)

7шт.

20

4070948

COVER

(SUB FOR AT131676)

1шт.

21

4602624

GASKET

(SUB FOR AT131677 AND 4070949)

1шт.

23

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

24

19M7881

SCREW

M8 X 20

2шт.

25

4205476

COVER

(SUB FOR AT131790)

1шт.

26

8039014

STOP

(SUB FOR AT132067)

1шт.

27

4114404

WASHER

(SUB FOR TH108203) (SUB FOR AT130666)

2шт.

28

19M6332

CAP SCREW

M14 X 35

2шт.

29

12H317

LOCK WASHER

9/16"

2шт.

32

AT132064

PIN FASTENER

1шт.

33

4207845

WASHER

3.2MM, (SUB FOR AT131850)

1шт.

34

4173485

WASHER

2.3MM, (SUB FOR AT131718)

1шт.

35

4191280

SOLID SHIM

1MM, (SUB FOR AT131726)

2шт.

36

4122729

STRAP

(SUB FOR AT131696)

1шт.

37

19M7950

CAP SCREW

M20 X 45, (SUB FOR AT131544)

2шт.

38

12M7070

LOCK WASHER

20 MM

2шт.

40

AT132074

PIN FASTENER

2шт.

41

4143607

WASHER

1.2MM, (SUB FOR TH103208)

4шт.

42

19M7950

CAP SCREW

M20 X 45, (SUB FOR AT131544)

2шт.

43

12M7070

LOCK WASHER

20 MM

2шт.

44

4207890

SPACER

(SUB FOR AT131851)

2шт.

45

4040826

BUSHING

(SUB FOR AT131671)

2шт.

46

4455818

FRAME

1шт.
