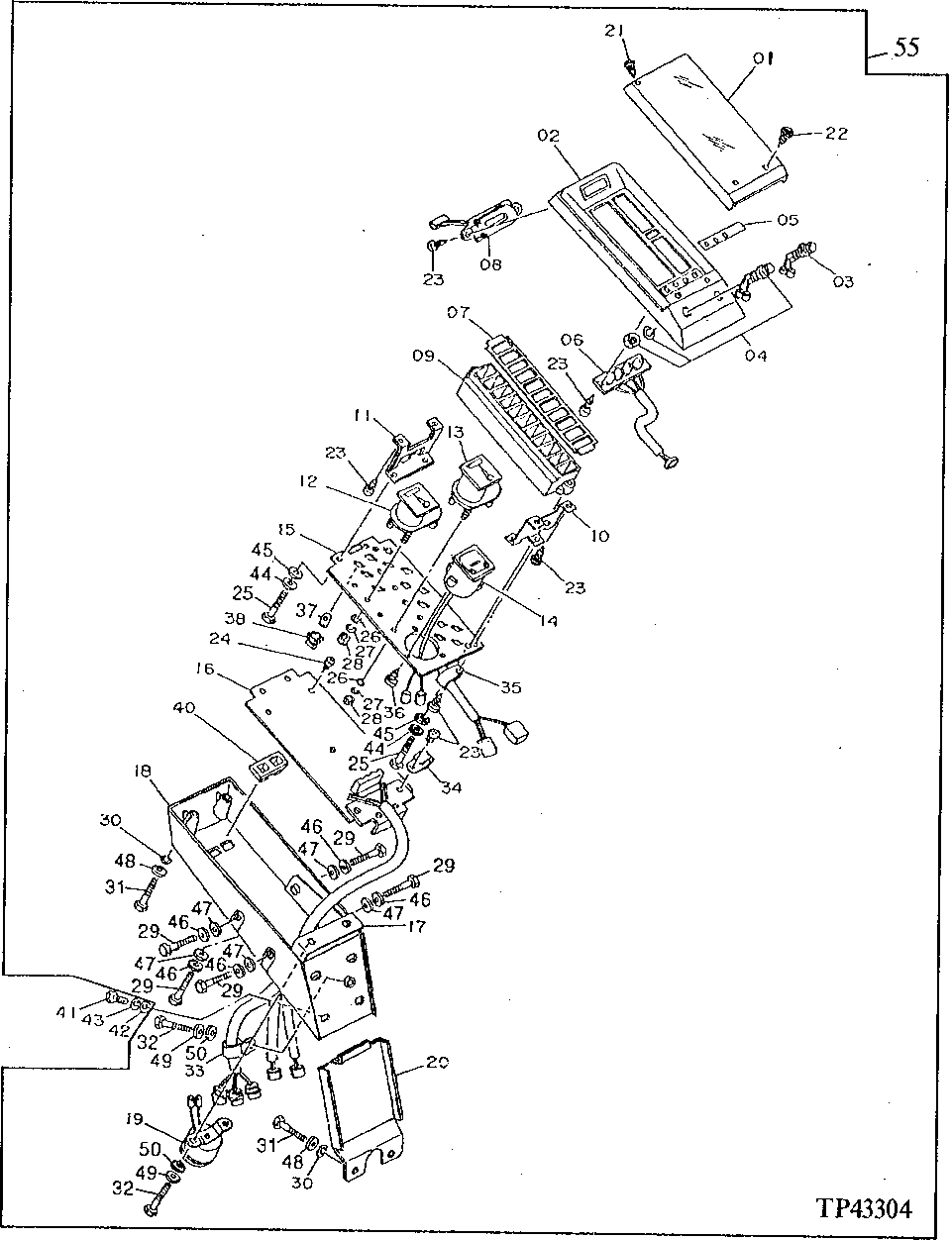

Запчасти John Deere 92DLC 2 - GAUGE PANEL 1676 - ELECTRICAL SYSTEM 16

1

4208843

COVER

(SUB FOR TH108514)

1шт.

2

4208844

HOUSING

(SUB FOR TH108515)

1шт.

3

4208845

SWITCH

(SUB FOR TH108516) (BUZZER CANCEL)

1шт.

4

4208846

SWITCH

(SUB FOR TH108517) (LEVEL CHECK)

1шт.

5

4208847

MASK

(SUB FOR TH108518)

1шт.

6

4208848

BOARD

(SUB FOR TH108519)

1шт.

7

4209958

LENS

(SUB FOR TH108520) (WARNING)

1шт.

8

4208850

CLOCK

(SUB FOR TH108521)

1шт.

9

4208851

HOUSING

(SUB FOR TH108522)

1шт.

10

4208852

BRACKET

(SUB FOR TH108523)

1шт.

11

BRACKET

(SUB FOR TH108524) ( 4208853 NSEP)

1шт.

12

4208854

TEMPERATURE GAUGE

(SUB FOR TH108525)

1шт.

13

4208855

GAUGE

FUEL, (SUB FOR TH108526)

1шт.

14

4208856

HOUR METER

(SUB FOR TH108527)

1шт.

15

4208857

BOARD

DISPLAY, (SUB FOR TH108528)

1шт.

16

4208858

BOARD

MONITOR CONTROL PANEL (LOGIC) (SUB FOR TH108529)

1шт.

17

4208859

BRACKET

(SUB FOR TH108530)

1шт.

18

4208860

HOUSING

(SUB FOR TH108531)

1шт.

19

4208861

AUDIBLE WARNING ALARM

LOW ENGINE OIL PRESSURE, COOLANT OVERHEAT, START WITH AUTO IDLE SWITCH ON, (SUB FOR TH108532)

1шт.

20

4208862

COVER

(SUB FOR TH108533)

1шт.

21

4208864

SCREW

(SUB FOR TH108534) (SUB FOR TH108535)

2шт.

22

4208864

SCREW

(SUB FOR TH108535)

2шт.

23

37H95

SCREW

(SUB FOR TH108536)

12шт.

24

37M7067

SCREW

(SUB FOR TH108537)

2шт.

25

21M7395

SCREW

M4 X 8

5шт.

26

4208868

SHIM

(SUB FOR TH108539)

8шт.

27

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

8шт.

28

14M7030

NUT

M3

8шт.

29

21M7305

SCREW

M6 X 12

6шт.

30

24M7117

WASHER

4.300 X 9 X 0.800 MM, (SUB FOR TH108541)

6шт.

31

21M7396

SCREW

M4 X 10

6шт.

32

21M7347

SCREW

M5 X 14

3шт.

33

4208874

CLIP

(SUB FOR TH108544)

1шт.

34

4208875

CLIP

(SUB FOR TH108545)

2шт.

35

4208876

CLIP

(SUB FOR TH108546)

1шт.

36

37M7181

SCREW

(SUB FOR TH108547)

3шт.

37

4208878

BULB

(SUB FOR TH108548 OR (15) T67008) (SUB FOR TH108548)

15шт.

38

4208879

SOCKET

(SUB FOR TH108549)

15шт.

40

4252141

COVER

(SUB FOR AT128332)

1шт.

41

19M7881

SCREW

M8 X 20

4шт.

42

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

43

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

44

24M7117

WASHER

4.300 X 9 X 0.800 MM

5шт.

45

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

5шт.

46

24M7054

WASHER

6.400 X 12 X 1.600 MM

6шт.

47

12M7006

LOCK WASHER

6 MM, (SUB FOR 12M7099)

6шт.

48

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

6шт.

49

24M7027

WASHER

5.300 X 10 X 1 MM

3шт.

50

12M7064

LOCK WASHER

5 MM

3шт.

55

4205438

GAUGE

(SUB FOR TH108513)

1шт.
