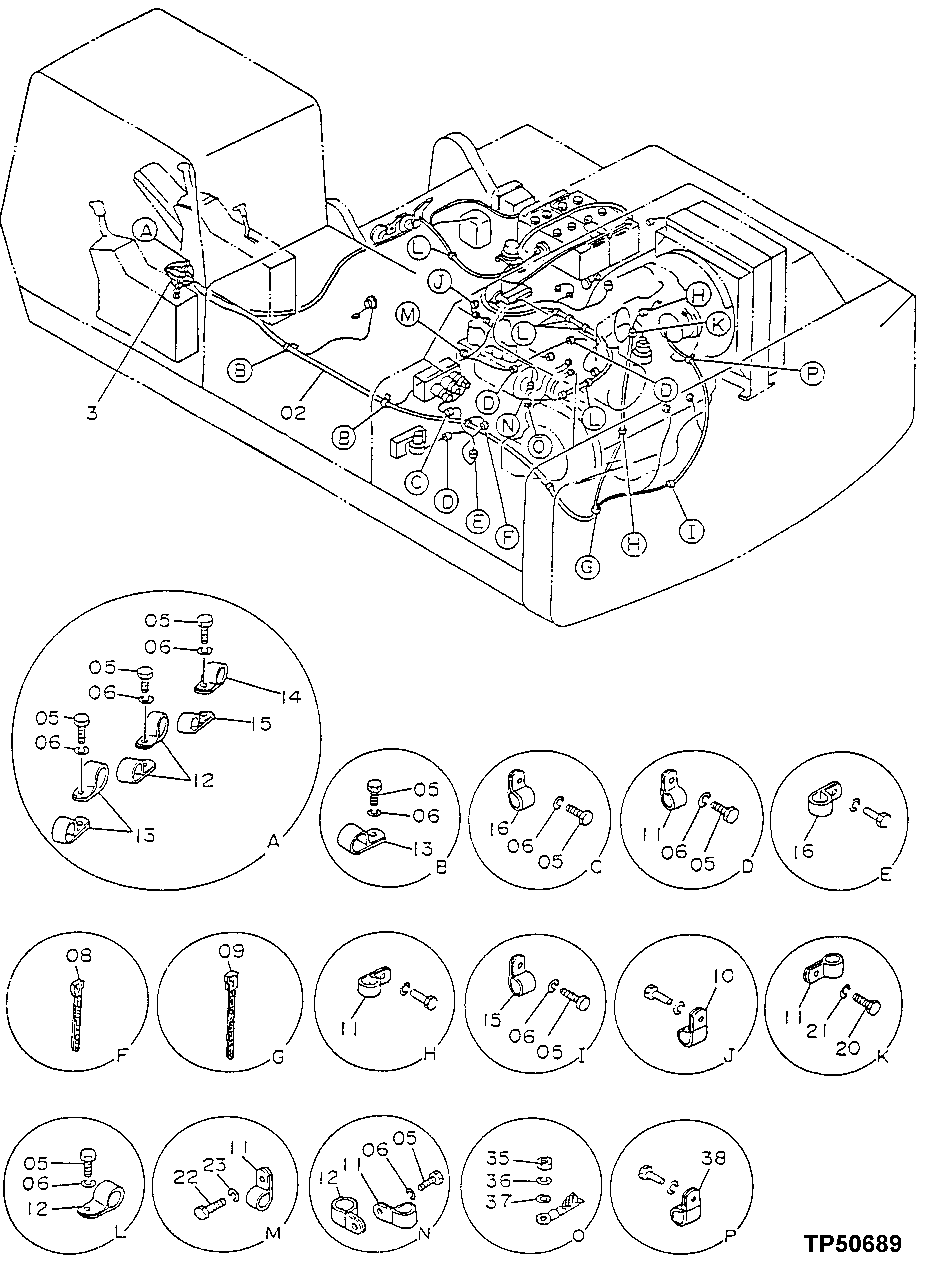

Запчасти John Deere 92DLC 16 - WIRING HARNESS CLAMPS 1674 - ELECTRICAL SYSTEM 16

2

WIRING HARNESS

(SUB AT131323, ALONG WITH AT145341, AT131384, AT131385, (2) 21M7288, (2) 12M7006 AND (2) 24M7054) ( AT132544 NO LONGER AVAILABLE)

1шт.

WIRING HARNESS

(SUB AT131323, ALONG WITH AT131384, AT131385, (2) 21M7288, (2) 12M7006 AND (2) 24M7054) ( AT132544 NO LONGER AVAILABLE)

1шт.

WIRING HARNESS

(SUB AT131323, ALONG WITH AT131384, AT131385, (2) 21M7288, (2) 12M7006 AND (2) 24M7054) ( AT132544 NO LONGER AVAILABLE)

1шт.

4286416

WIRING HARNESS

(SUB FOR AT131323)

1шт.

3

4395092

WIRING HARNESS

(CAB) (SUB FOR AT181740)

1шт.

5

19M8324

CAP SCREW

M10 X 16

17шт.

6

12M7066

LOCK WASHER

10 MM

17шт.

8

H77698

TIE BAND

(SUB FOR M88199)

20шт.

9

H77698

TIE BAND

20шт.

10A

AH79175

CLIP

(SUB FOR TH108600 OR 4190272)

1шт.

10B

AH79175

CLIP

(SUB FOR TH108600 OR 4190272)

1шт.

11

4190261

CLIP

(SUB FOR TH109649)

8шт.

12

R72659

CLAMP

(SUB FOR TH108594 OR 4235654)

9шт.

13

XCL-19

HOSE CLAMP

(SUB FOR TH108459 OR 4192035)

4шт.

14

R73384

CLAMP

(SUB FOR TH108597 OR 4190253)

1шт.

15

R73291

CLAMP

(SUB FOR TH108596) (SUB FOR 4190262)

2шт.

16

4190275

CLAMP

(SUB FOR TH108598)

2шт.

20

19H2038

CAP SCREW

3/8" X 1/2"

1шт.

21

12H304

LOCK WASHER

3/8"

1шт.

22

19M7932

CAP SCREW

M8 X 16

1шт.

23

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

35

14M7274

NUT

M10

1шт.

36

12M7066

LOCK WASHER

10 MM

1шт.

37

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

38

AT47069

GROUND CABLE

(SUB FOR AT154993) STRAP (ENGINE FLYWHEEL HOUSING TO GROUND)

1шт.
