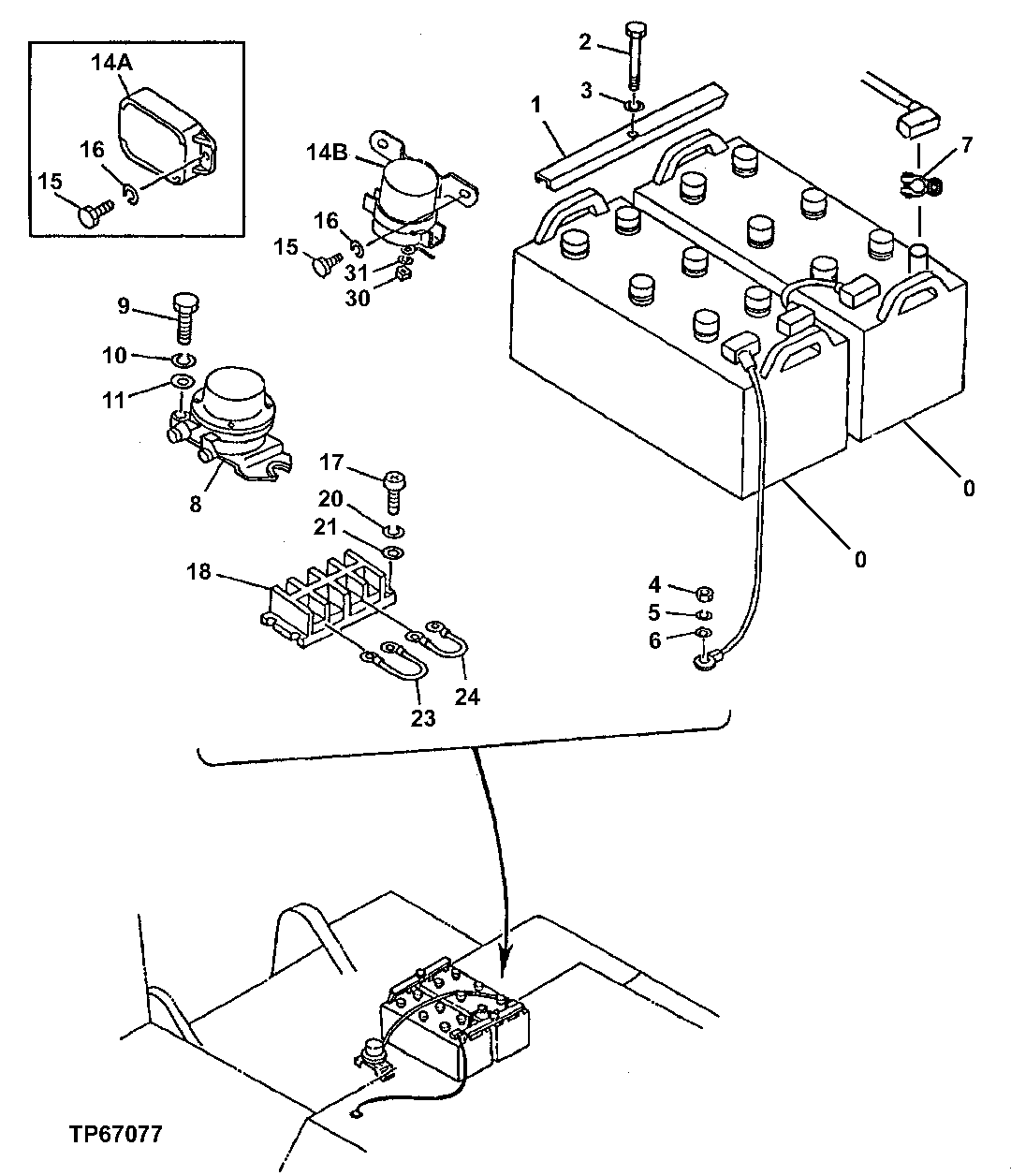

Запчасти John Deere 92DLC 14 - ELECTRICAL PARTS 1674 - ELECTRICAL SYSTEM 16

0

TY23020

DRY CHARGED BATTERY

(SUB FOR TY21709) (12 VOLT)

2шт.

1

4145156

HOLDER

(SUB FOR TH102147)

2шт.

2

4206101

BOLT

(SUB FOR AT131796)

2шт.

3

12H301

LOCK WASHER

1/2"

2шт.

4

14M7274

NUT

M10

1шт.

5

12M7066

LOCK WASHER

10 MM

1шт.

6

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

7

AT219485

CLAMP

(BATTERY TERMINAL CLAMP)

4шт.

8

4031771

RELAY

(SUB FOR TH104069) (BATTERY)

1шт.

9

19M7407

CAP SCREW

M8 X 25, (SUB FOR AT133604)

2шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

11

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

14A

AT85258

RELAY

(STARTER) (SUB AT145341, ALONG WITH (2) T28583 CONNECTORS)

1шт.

14B

AT145341

RELAY

(STARTER)

1шт.

14M7165

LOCK NUT

M6, (STARTER RELAY TERMINALS)

2шт.

15

19M7300

CAP SCREW

M6 X 10

2шт.

16

12M7006

LOCK WASHER

6 MM

2шт.

17

21M7216

SCREW

M4 X 20, (SUB FOR AT132462)

4шт.

18

4222280

ELEC. CONNECTOR TERMINAL

(SUB FOR AT131908)

1шт.

20

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

4шт.

21

24M7117

WASHER

4шт.

23

4223437

WIRING LEAD

(SUB FOR AT131912)

1шт.

24

4223438

WIRING LEAD

(SUB FOR AT131913)

1шт.

30

14M7272

NUT

M6

2шт.

31

12M7006

LOCK WASHER

6 MM

2шт.
