Запчасти John Deere 92DLC 12 - ELECTRIC PARTS 1674 - ELECTRICAL SYSTEM 16

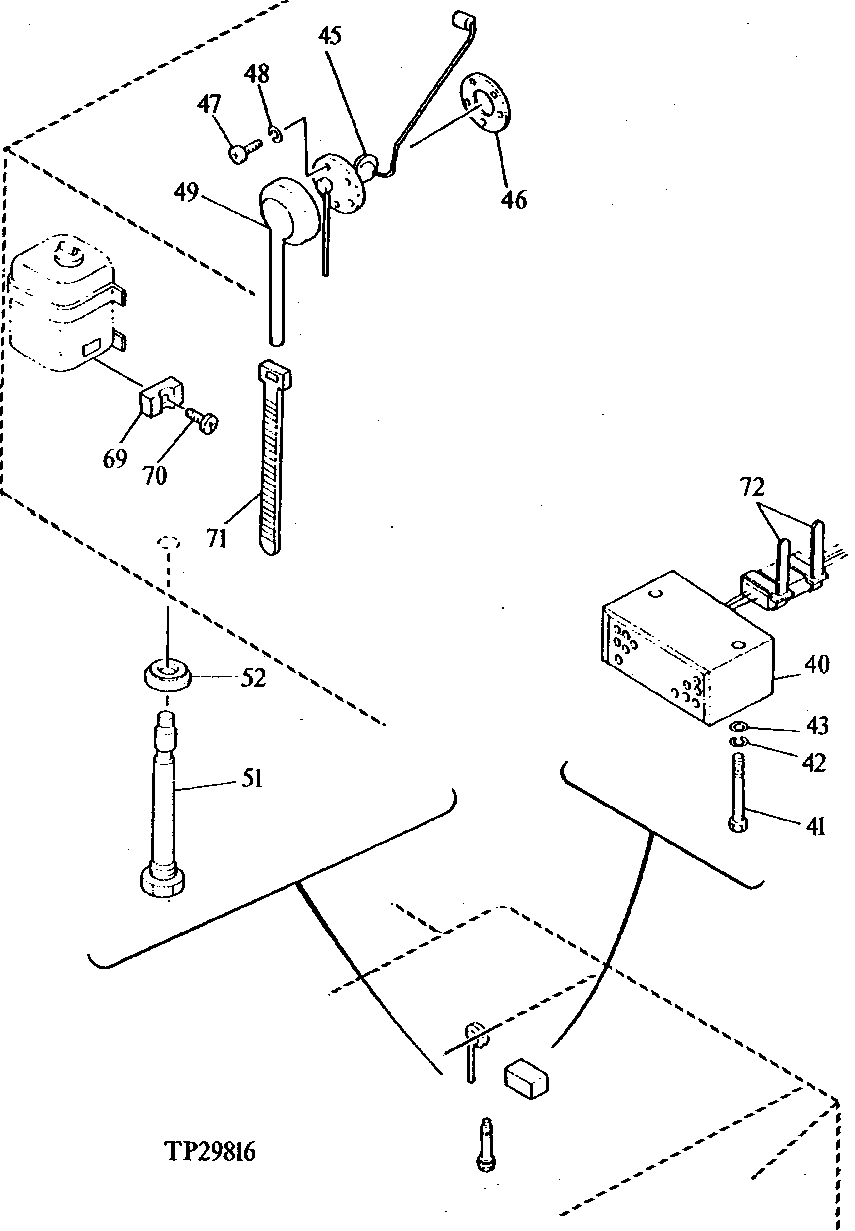

Схема запчастей John Deere 92DLC - 12 - ELECTRIC PARTS 1674 - ELECTRICAL SYSTEM 16

Артикул

Название

Примечание

Количество

40

AT120884

TRAVEL WARNING ALARM

(PROPEL)

1шт.

41

19M8539

CAP SCREW

M8 X 90

2шт.

42

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

43

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

45

4201926

FUEL SENDER

(SUB FOR TH108581) (FUEL GAUGE)

1шт.

46

T211051

GASKET

(SUB FOR U42323)

1шт.

47

21M7278

SCREW

M5 X 10

5шт.

48

12M7064

LOCK WASHER

5 MM

5шт.

49

4207240

CAP

(SUB FOR TH108590)

1шт.

51

4201927

SWITCH

(SUB FOR TH102168) (SUB FOR TH108582) (FUEL LEVEL)

1шт.

52

4157648

SEALING WASHER

(SUB FOR TH108583)

1шт.

69

4196829

BRACKET

(SUB FOR AT132496)

1шт.

70

21M7288

SCREW

M6 X 10

1шт.

71

H77698

TIE BAND

(SUB FOR M88199)

1шт.

72

H77698

TIE BAND

2шт.

Выбрано товаров: 15
