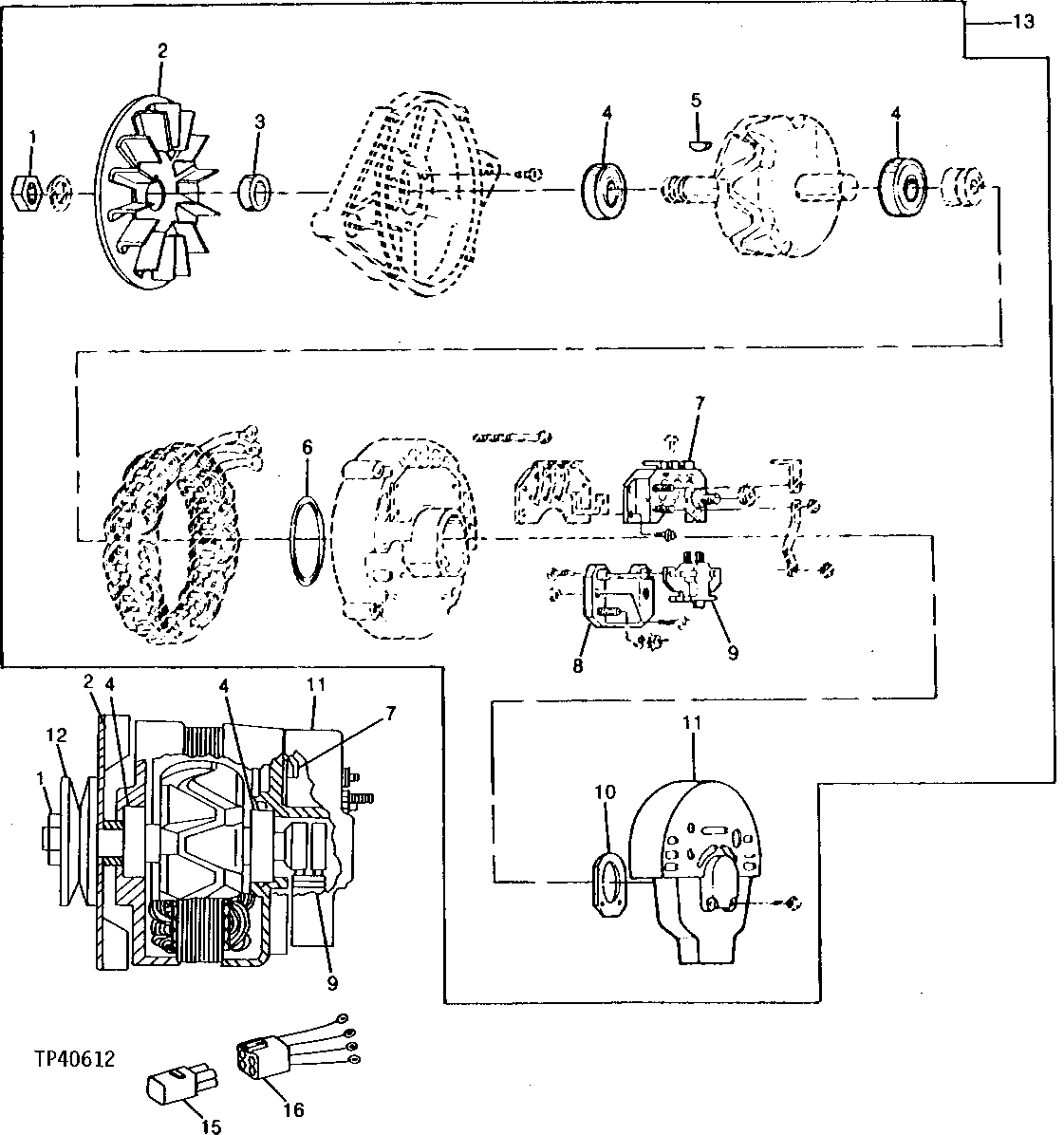

Запчасти John Deere 92DLC 4 - ALTERNATOR AND PULLEY 1672 - ELECTRICAL SYSTEM 16

1

NUT

( W36250 NO LONGER AVAILABLE)

1шт.

2

R60492

FAN

1шт.

3

BUSHING

( T25343 USE IF AVAILABLE)

1шт.

4

JD9449

BALL BEARING

2шт.

5

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

6

RING

( T50860 USE IF AVAILABLE)

1шт.

7

AT104092

RECTIFIER

1шт.

8

AT120668

REGULATOR

1шт.

9

AT104090

HOLDER

1шт.

10

GASKET

( T103117 USE IF AVAILABLE)

1шт.

11

T103118

COVER

1шт.

12

T75067

PULLEY

1шт.

13

TY6680

ALTERNATOR

(SUB FOR AT125430) (40 AMPERE) (PRESTOLITE NO.70D42179T) (SUB TY6680)

1шт.

TY6680

ALTERNATOR

(40 AMPERE) (MOTOROLA)(REMANUFACTURED)

1шт.

SE501369

ALTERNATOR

(REMANUFACTURED FOR TY6680)

1шт.

14

AU42892

WIRING LEAD

(NOT ILLUSTRATED) (ALTERNATOR OUTPUT TO SENSE TERMINALS)

1шт.

15

T138822

ELECTRICAL CONNECTOR ASSY

(USE WITH PRESTOLITE ALTERNATOR)

1шт.

16

AT142345

WIRING HARNESS

(USE WITH PRESTOLITE ALTERNATOR)

1шт.
