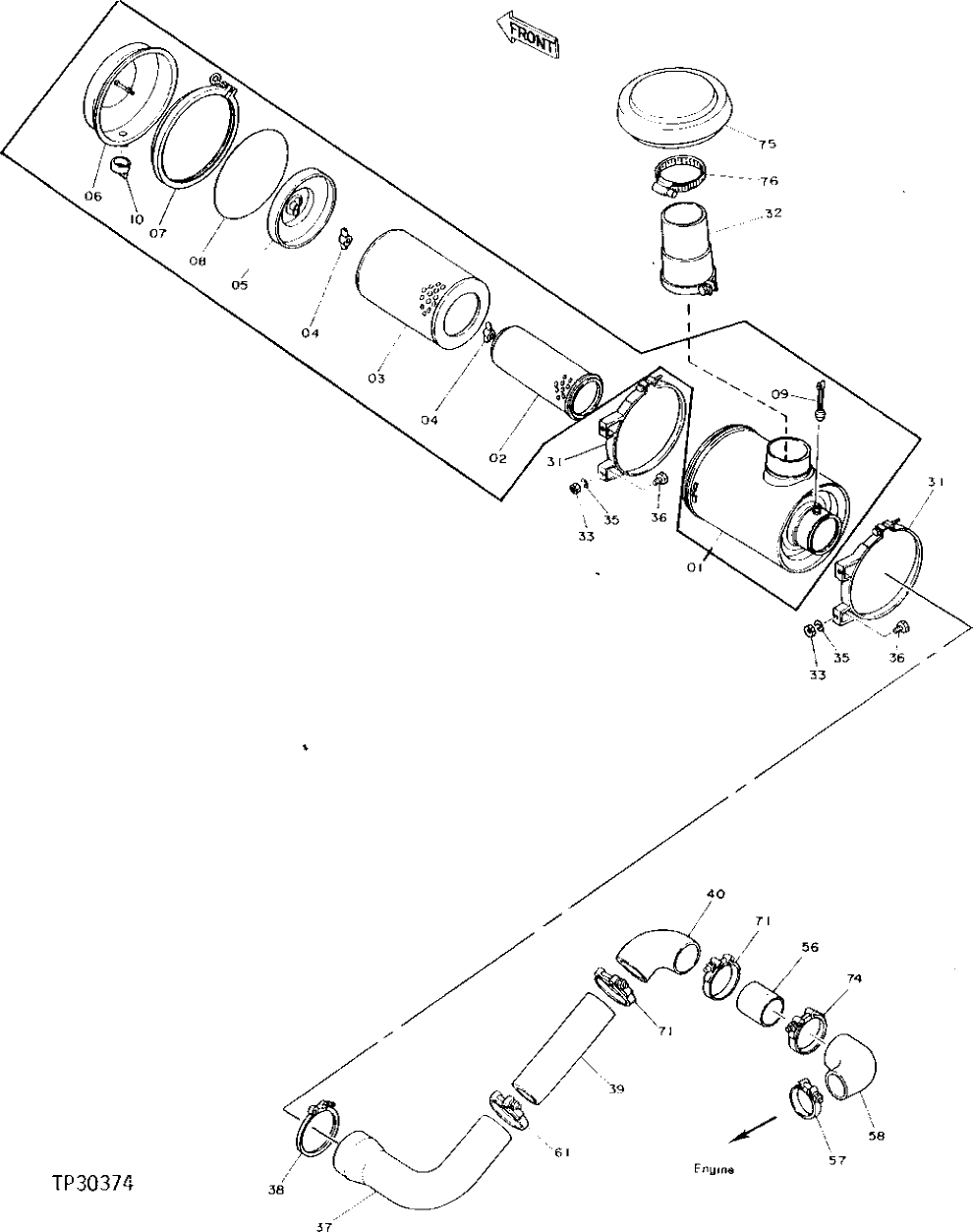

Запчасти John Deere 92DLC 2 - AIR INTAKE SYSTEM 520 - ENGINE AUXILIARY SYSTEM 5

1

4603240

AIR CLEANER

(SUB FOR AT131923, AT166135, 4337402) (ALSO ORDER 4224238)

1шт.

2

AT166136

FILTER ELEMENT

SECONDARY, (SUB FOR AT131683)

1шт.

3

U44957

FILTER ELEMENT

PRIMARY, (SUB FOR AT131970)

1шт.

4

4337642

NUT

(SUB FOR AH20849) (SUB FOR AT166137)

2шт.

5

4237664

DEFLECTOR

(SUB FOR AT131971) (SUB FOR AU43781)

1шт.

6

4237665

COVER

(SUB FOR AT131972)

1шт.

7

4237666

CLAMP

(SUB FOR AT131973) (SUB FOR AE21586)

1шт.

8

4237667

O-RING

(SUB FOR AT131974 AND E33550)

1шт.

9

4224238

INDICATOR

(SUB FOR AT131922) (NOT INCLUDED IN 4603240)

1шт.

10

4237668

FLOW CONTROL HYD. VALVE

(SUB FOR AT131975)

1шт.

31

4023563

CLAMP

(SUB FOR AT131666) (SUB FOR AE20600)

2шт.

32

4277136

EXTENSION

(SUB FOR AT131799)

1шт.

33

14M7274

NUT

M10

4шт.

35

12M7066

LOCK WASHER

10 MM

4шт.

36

19M7402

CAP SCREW

M10 X 25

4шт.

37

3046687

HOSE

(SUB FOR AT131660)

1шт.

38

4282496

HOSE CLAMP

(SUB FOR AT131716)

1шт.

39

4243893

BUSHING

(SUB FOR AT131993)

1шт.

40

4243895

HOSE

(SUB FOR AT131994)

1шт.

56

4248985

BUSHING

(SUB FOR AT132012)

1шт.

57

AT56658

HOSE CLAMP

(SUB FOR AT39141 OR AT50924, THIS APPLICATION)

1шт.

58

T114504

HOSE

(SUB FOR AT131663)

1шт.

61

AT115060

HOSE CLAMP

(SUB FOR AT132001 OR AT131220)

1шт.

71

RE28140

CLAMP

(SUB FOR TH111258)

2шт.

74

AT115060

HOSE CLAMP

(SUB FOR AT131220)

1шт.

75

AR70105

CAP

(SUB FOR RE11158)

1шт.

76

AR60499

CLAMP

(SUB FOR AR85327)

1шт.
