Запчасти John Deere 92DLC 6 - COOLANT RESERVE TANK 510 - ENGINE AUXILIARY SYSTEM 5

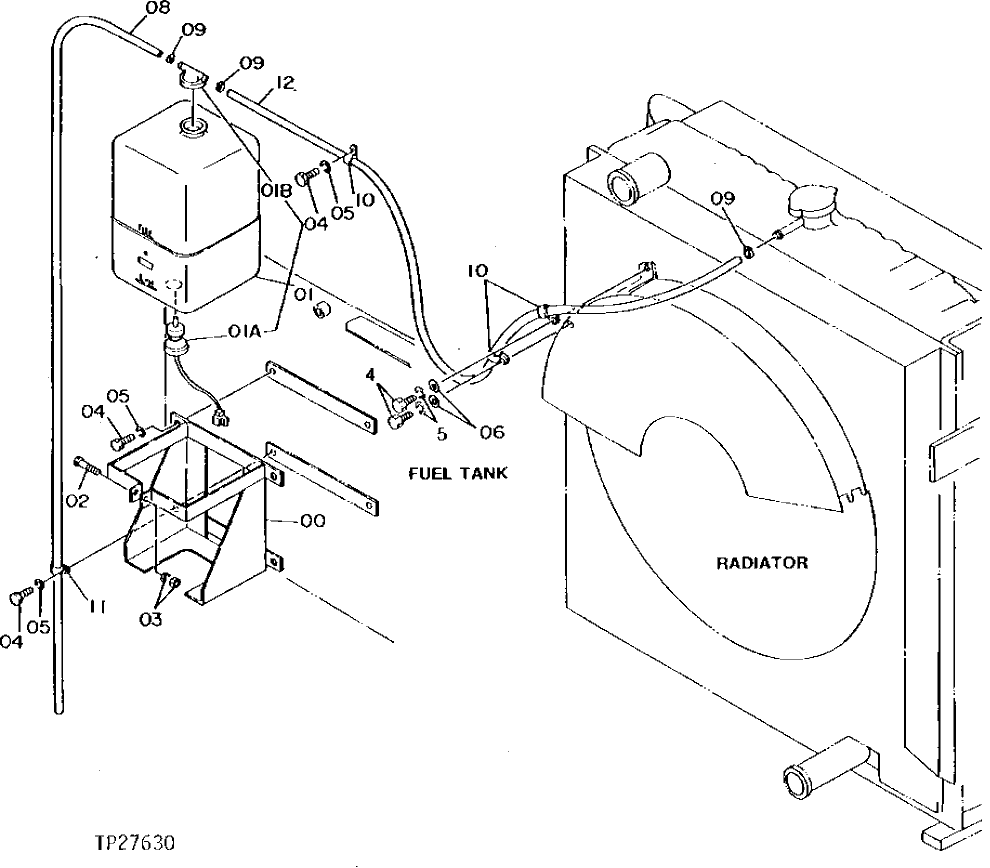

Схема запчастей John Deere 92DLC - 6 - COOLANT RESERVE TANK 510 - ENGINE AUXILIARY SYSTEM 5

Артикул

Название

Примечание

Количество

0

7019986

BRACKET

(SUB FOR AT132048)

1шт.

1

4206452

TANK

(SUB FOR AT131800) (SUB FOR AT147301)

1шт.

1A

4234536

SWITCH

(USE WITH AT131800) (SUB FOR AT131966)

1шт.

4153251

SENDER

(USE WITH AT147301) (SUB FOR TH102932)

1шт.

1B

4237650

CAP

(USE WITH AT131800) (SUB FOR AT131965)

1шт.

4396809

CAP

(USE WITH AT147301) (SUB FOR TH102933)

1шт.

2

19M7177

CAP SCREW

M6 X 35, (SUB FOR AT131533)

1шт.

3

14M7272

NUT

M6

2шт.

4

19M7872

CAP SCREW

M12 X 25

5шт.

5

12H301

LOCK WASHER

1/2"

5шт.

6

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

8

HOSE

( AT131801 NO LONGER AVAILABLE) (MAKE FROM 1/4 INCH I.D. VINYL TUBING CUT TO LENGTH)

1шт.

9

TY22462

CLAMP

(SUB FOR AR77962 OR AR48236)

3шт.

10

AH79175

CLIP

(SUB FOR TH108600 OR 4190272)

3шт.

11

4190261

CLIP

(SUB FOR TH109649)

1шт.

12

HOSE

( AT131947 NO LONGER AVAILABLE) (CUT TO LENGTH FROM T79477 BULK MATERIAL)

1шт.

Выбрано товаров: 16
